IFR FM/AM-1200A

'
!
STEP
EXTERNAL AC Power
PROCEDURE
ANT CONNECTOR

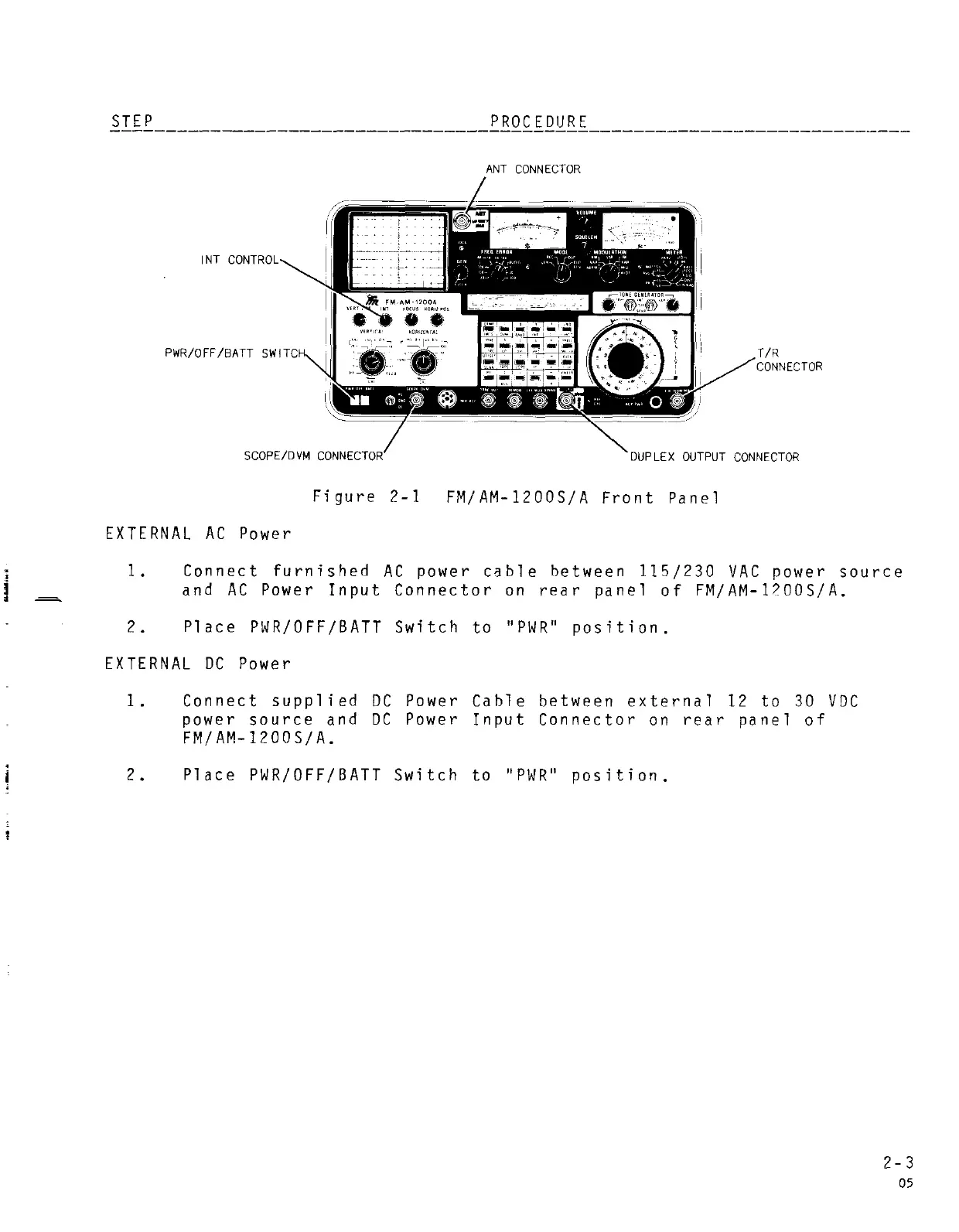

Figure 2-1 FM/AM-1200S/A Front Panel
T/R
CONNECTOR
1.
Connect furnished AC power cable between 115/230 VAC power source
and AC Power Input Connector on rear panel of FM/AM-1(005/A.
2. Place PWR/OFF/BATT Switch to "PWR" position.
EXTERNAL DC Power
1. Connect supplied DC Power Cable between external 12 to 30 VDC
power source and DC Power Input Connector on rear panel of
FM/AM-1200S/A.
2. Place PWR/OFF/BATT Switch to ''PWR'' position.
