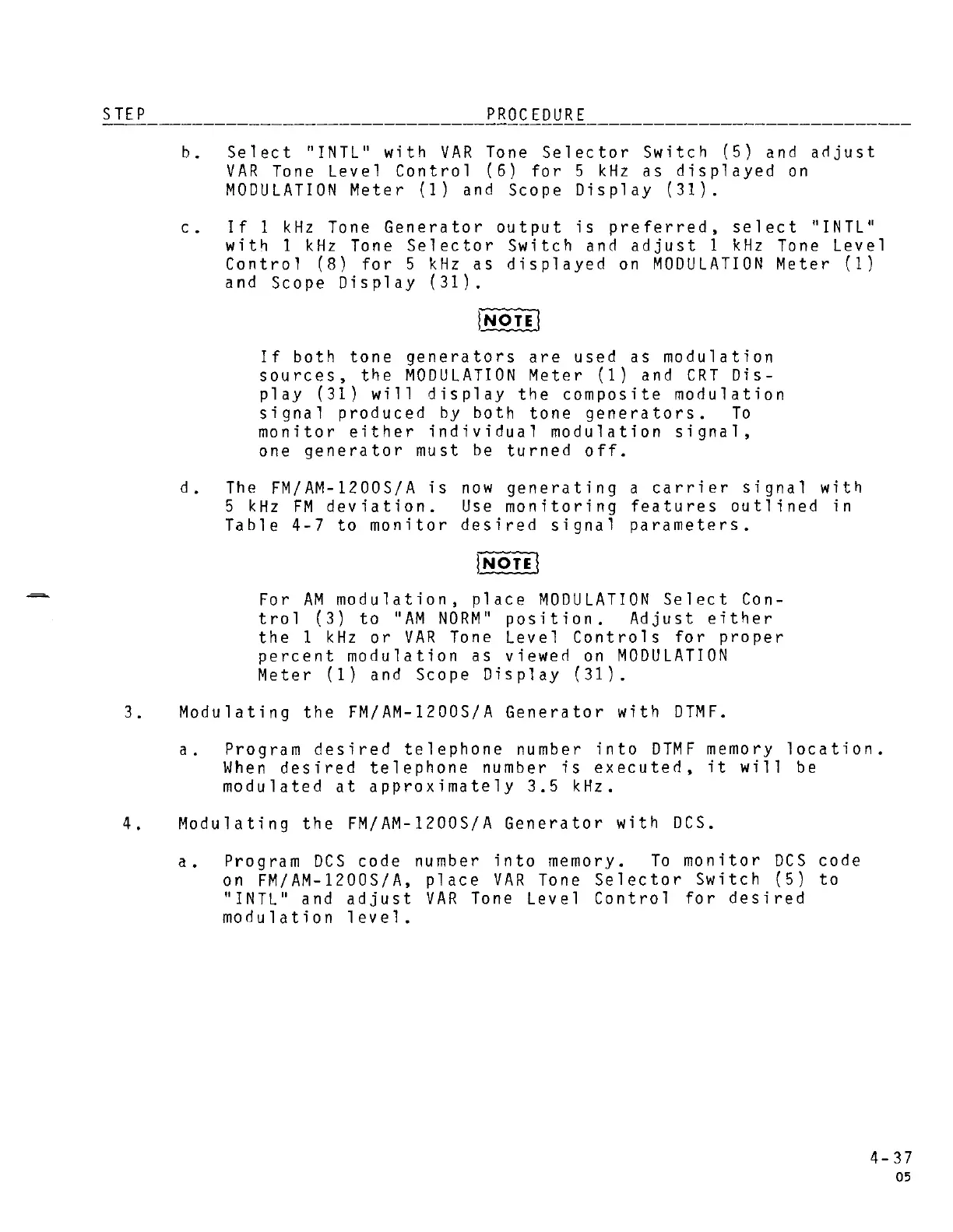

STEP
3 •
PROCEDURE
b.
Select
"INTL''
with
VAR
Tone
Selector
Switch
(5)
and
adjust
VAR
Tone
Level
Control
(6)
for
5
kHz
as
displayed
on
MODULATION
Meter
(1)
and Scope
Display
(31).
c.
If
1
kHz
Tone
Generator
output
is
preferred,
select
"INTL''
with
1
kHz
Tone
Selector
Switch
and
adjust
1
kHz
Tone
Level
Control
(8)
for
5
kHz
as
displayed
on
MODULATION
Meter
(1)
and Scope
Display
(31).
d
If
both
tone
generators
are
used
as
modulation
sources,
the
MODULATION
Meter
(1)
and
CRT
Dis-
play
(31)
will
display
the
composite
modulation
signal
produced
by
both
tone
generators.
To
monitor
either
individual
modulation
signal,
one
generator
must
be
turned
off.
The
FM/AM-1200S/A
is
5
kHz
FM
deviation.
Table
4-7
to
monitor
now
generating
Use
monitoring
desired
signal
a
carrier
signal
with
features
outlined
in
parameters.
For
AM
modulation,
place
MODULATION
Select
Con-
trol
(3)
to
''AM
NORM"
position.
Adjust
either
the
1
kHz
or
VAR
Tone
Level
Controls
for
proper
percent
modulation
as
viewerl
on
MODULATION
Meter
(1)
and Scope
Display
(31).
Modulating
the
FM/AM-1200S/A
Generator
with
DTMF.
a.
Program
desired
telephone
number
into
DTMF
memory
location.
When
desired
telephone
number
is
executed,
it
will
be
modulated
at
approximately
3.5
kHz.
4.
Modulating
the
FM/AM-1200S/A
Generator
with
DCS.
a.
Program
DCS
code number
into
memory.
To
monitor
DCS
code
on
FM/AM-1200S/A,
place
VAR
Tone
Selector
Switch
(5)
to
"INTL" and
adjust
VAR
Tone
Level
Control
for
desired
modulation
level.
4-
3 7
05
