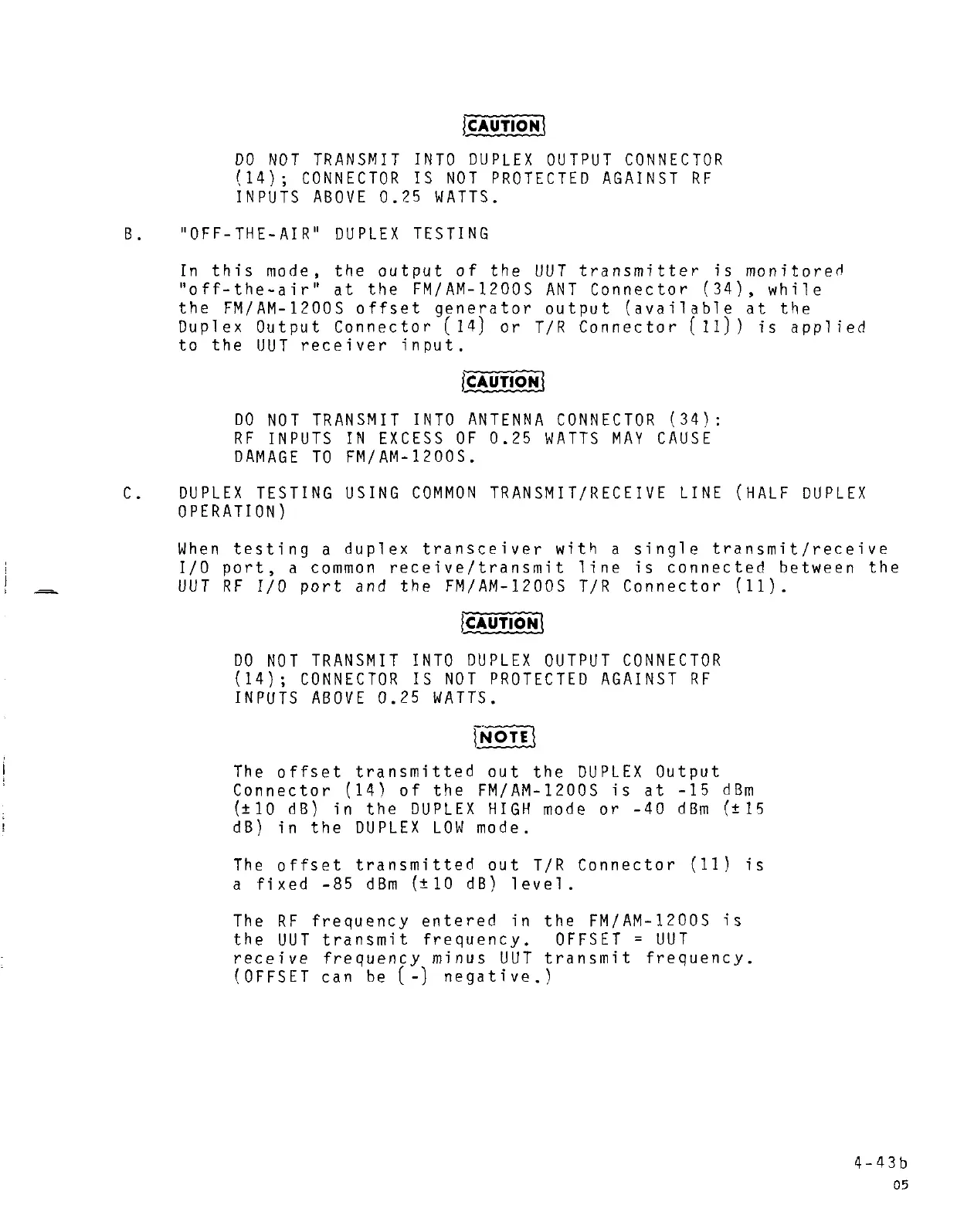

~~AUTION\
DO
NOT
TRANSMIT
INTO
DUPLEX
OUTPUT
CONNECTOR
(14);
CONNECTOR
IS
NOT
PROTECTED
AGAINST
RF
INPUTS
ABOVE
0.25
WATTS.
B.
"OFF-THE-AIR"
DUPLEX
TESTING
c .
In
this
mode,
the
output
of
the
UUT
transmitter
is
monitorerl
''off-the-air''
at
the
FM/AM-1200S
ANT
Connector
(34),
while
the
FM/AM-1200S
offset
generator
output
(available
at
the
Duplex
Output
Connector
( 14)
or
T/R
Connector
(
11))
is
applied
to
the
UUT
receiver
input.
[~~UTION\
DO
NOT
TRANSMIT
INTO
ANTENNA
CONNECTOR
(34):
RF
INPUTS
IN
EXCESS
OF
0.25
WATTS
MAY
CAUSE
DAMAGE
TO
FM/AM-1200S.
DUPLEX
TESTING
USING
COMMON
TRANSMIT/RECEIVE
LINE
(HALF
DUPLEX
OPERATION)
When
testing
a
duplex
transceiver
with
a
single
transmit/receive
I/0
port,
a
common
receive/transmit
line
is
connected
between
the
UUT
RF
I/0
port
and
the
FM/AM-1200S
T/R
Connector
(11).
f~!UTION\
DO
NOT
TRANSMIT
INTO
DUPLEX
OUTPUT
CONNECTOR
(14);
CONNECTOR
IS
NOT
PROTECTED
AGAINST
RF
INPUTS
ABOVE
0.25
WATTS.
\NOTE\
The
offset
transmitted
out
the
DUPLEX
Output
Connector
(14)
of
the
FM/AM-1200S
is
at
-15
dBm
(±10
dB)
in
the
DUPLEX
HIGH
mode
or
-40
dBm
(±15
dB)
in
the
DUPLEX
LOW
mode.
The
offset
transmitted
out
T/R
Connector
(11)
is
a
fixed
-85
dBm
(±10
dB)
level.
The
RF
frequency
entered
in
the
FM/AM-1200S
is
the
UUT
transmit
frequency.
OFFSET
=
UUT
receive
frequency
minus
UUT
transmit
frequency.
(OFFSET
can
be(-)
negative.)
4-43b
