10
i
9
9
i
9
9
j
k
j
k
11
k
X
X
X
X
Rif. X
12
12
11
11
11
k
X
X
55
54
INSTALLERUSERMAINTENANCE TECHNICIAN

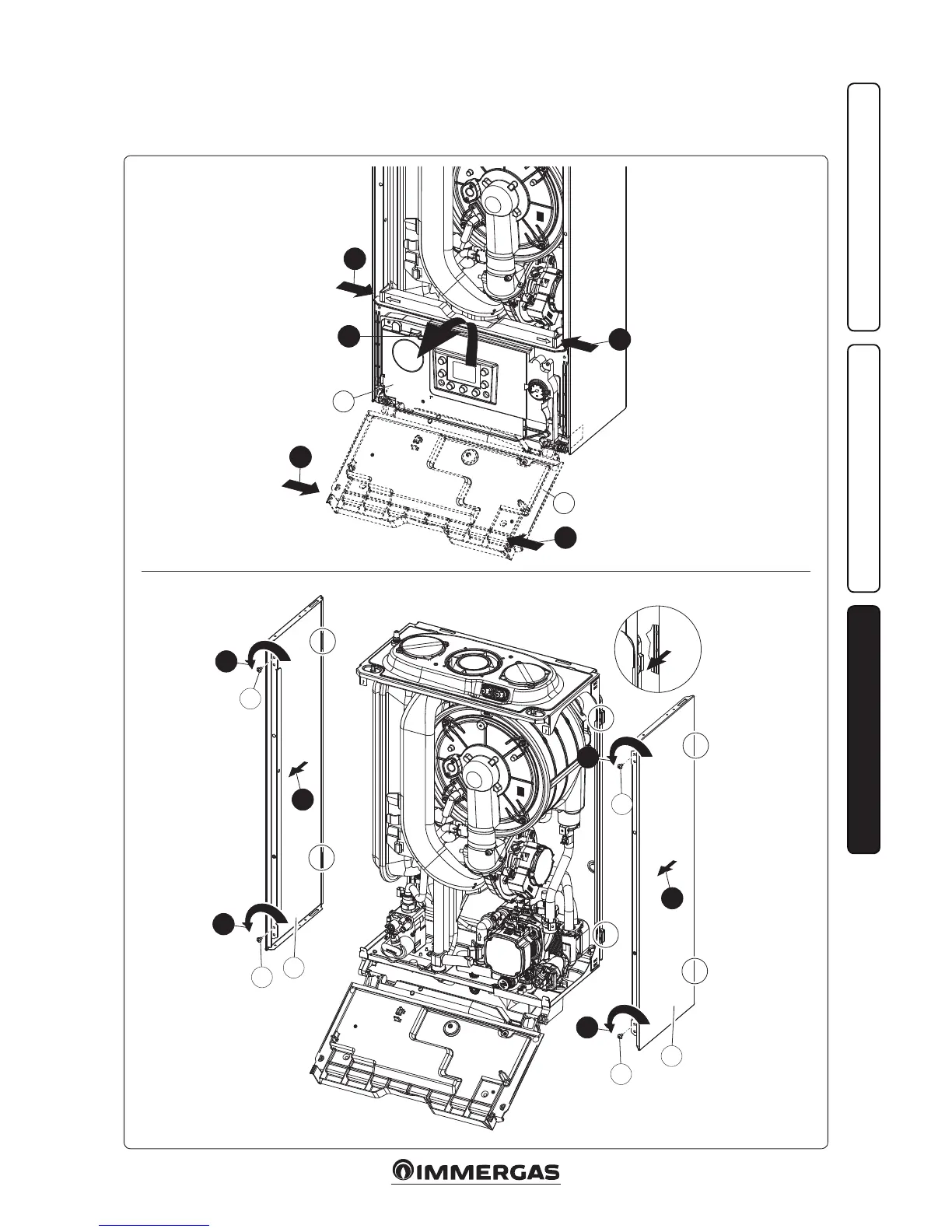

• Control panel (Fig. 54).
9) Press the hooks on the side of the control
panel (i).
10) Tilt the control panel (i) towards you.
• Sides (Fig. 55).
11) Loosen screws (k) of side fastening (j).
12) Remove the sides by extracting them from
their rear seat (Ref. X).
