Immergas Victrix Tera 38 1 - Page 53

10
i
9
9
i
9
9
j
k
j
k
11
k
X
X
X
X
Rif. X
12
12
11
11
11
k
X
X
57
56
INSTALLERUSER
MAINTENANCE TECHNICIAN
53

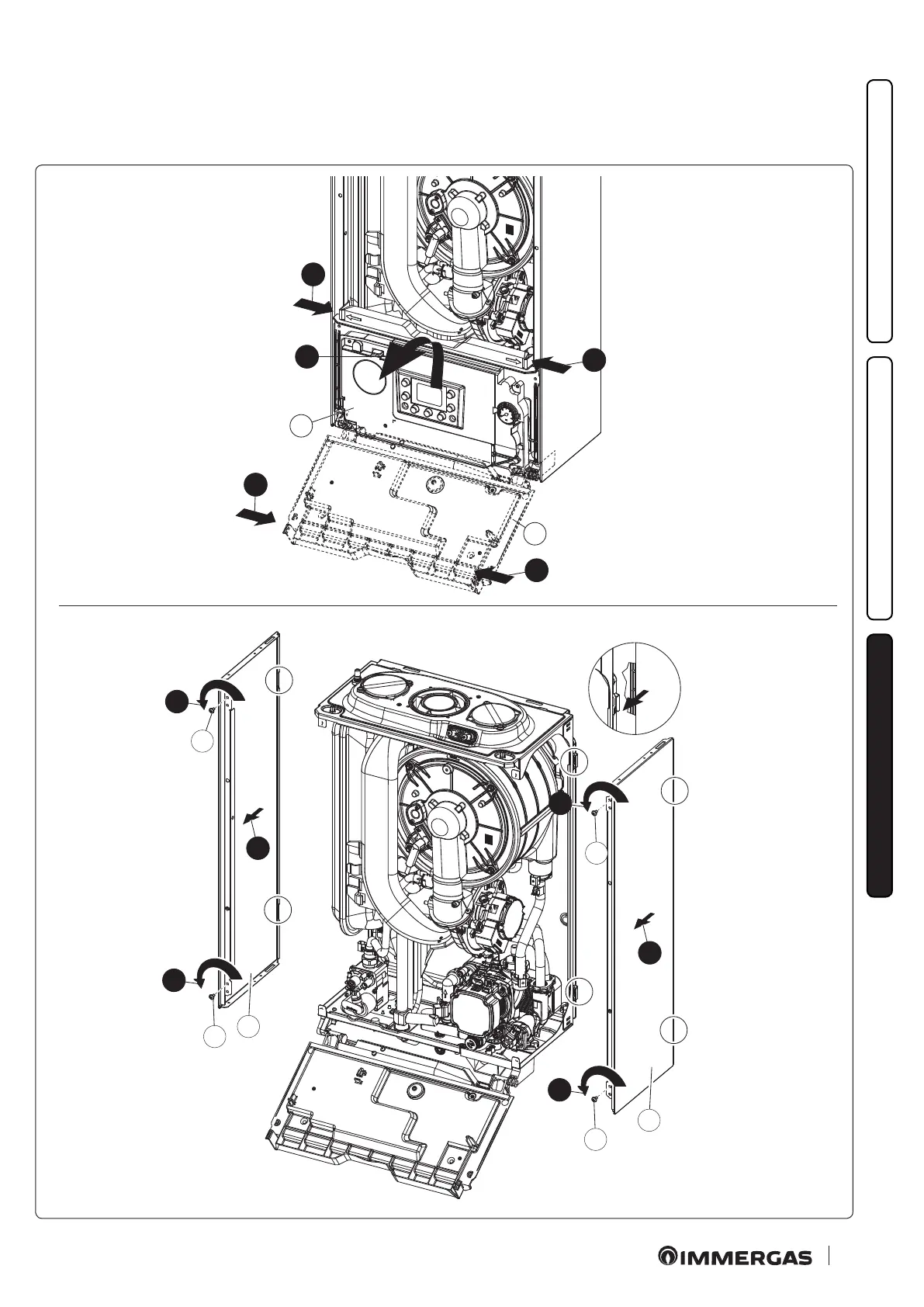

• Control panel (Fig. 56).
9) Press the hooks on the side of the control panel (i).
10) Tilt the control panel (i) towards you.
• Sides (Fig. 57).
11) Loosen screws (k) of side fastening (j).
12) Remove the sides by extracting them from their rear seat (Ref. X).
Ref. X
