Signals and anomalies.
6
Malfunction signalled Error code Display Super CAR Display CAR Display
No ignition malfunction ERR 01 ERR 01 E01
Safety thermostat block (over-temperature),
ame control anomaly
ERR 02 ERR 02 E02
Fan anomaly ERR 03 ERR 03 E02 + E03
Contacts resistance block ERR 04 ERR 04 E02 + E04
Flow probe anomaly ERR 05 ERR 05 E05
Insucient system pressure ERR 10 ERR 10 E10
Flue ow meter anomaly ERR 11 ERR 11 E11
Storage tank probe anomaly ERR 12 ERR 12 E12
Flue ow meter out of range ERR 13 ERR 13 E13
Conguration error ERR 15 ERR 15 E15
Incorrect fan speed ERR 17 ERR 17 E17
Parasite ame block ERR 20 ERR 20 E02 + E20
Push button control panel anomaly ERR 24 ERR 24 E24
Insucient circulation ERR 27 ERR 27 E27
Loss of remote control communication ERR 31 ERR 31 / CM E31 / CON
Low voltage power supply ERR 37 not displayed not displayed
Loss of ame signal
38
(only displayed on VIRGILIO palmtop, or within the "M1" / "P19" menu)

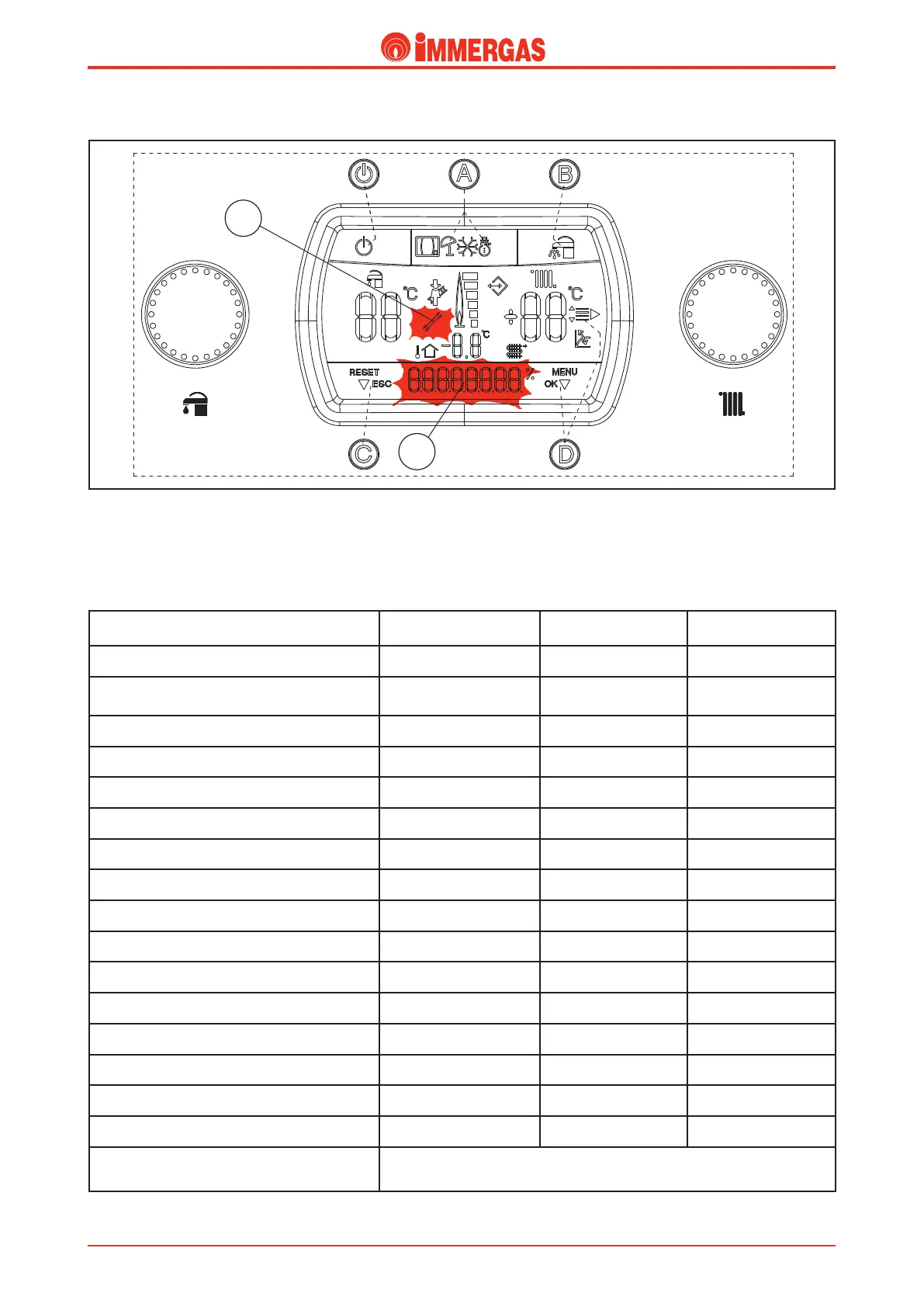

e ZEUS Superior kW boiler signals any anomalies by means
of a ashing symbol (5) coupled to the indication “ERR xx”
on the indicator (6) where “xx” corresponds to the error code
described in the following table. To eliminate the block (where
necessary), press the RESET button "C" positioned on the
boiler panel.
5
