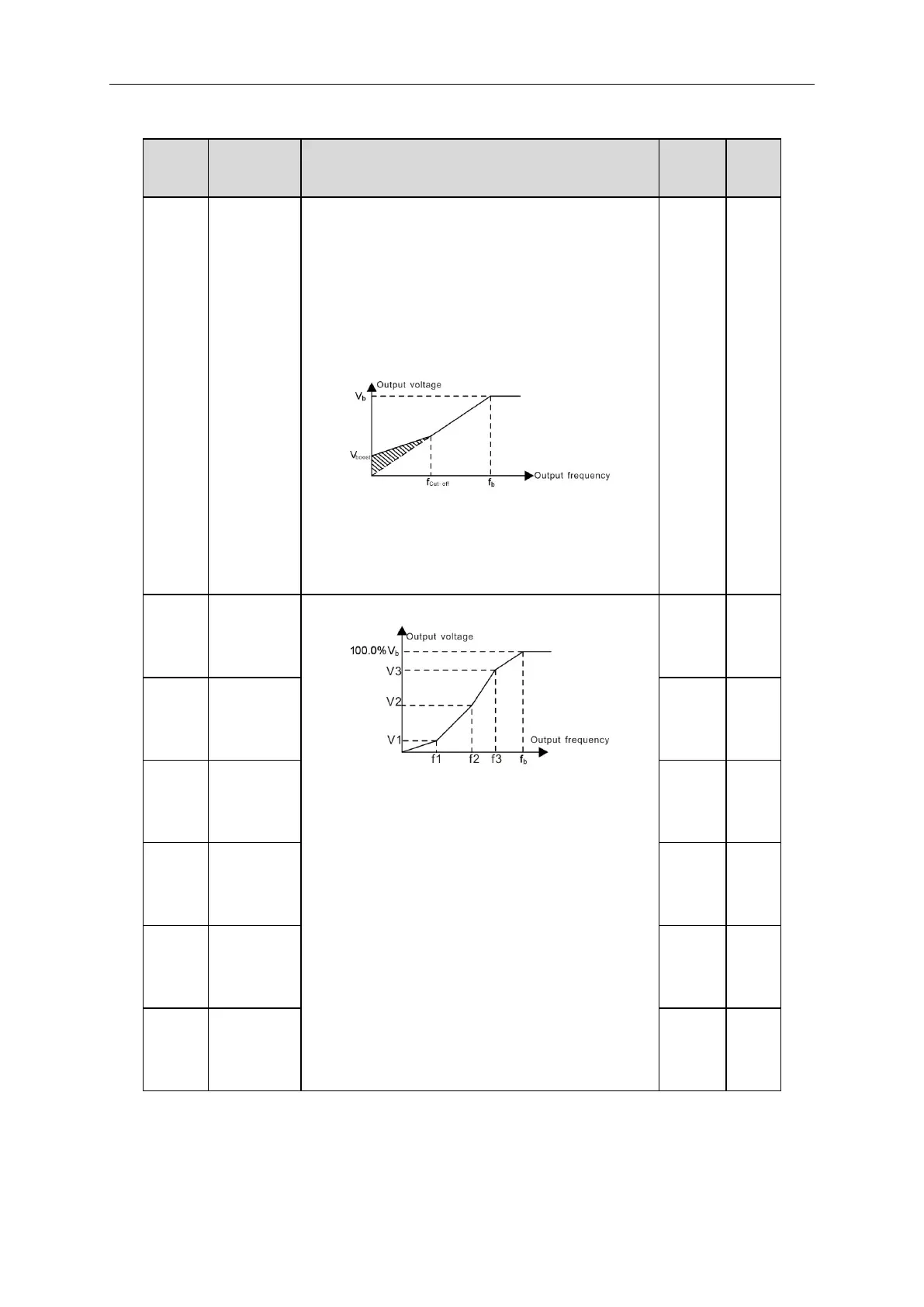

iDrive2 inverters Function Parameters
33
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
and the current of the inverter will increase the
temperature of the inverter and decrease the efficiency.
When the torque boost is set to 0.0%, the inverter is
automatic torque boost.
Torque boost threshold: below this frequency point, the
torque boost is valid, but over this frequency point, the
torque boost is invalid.
The setting range of P04.01: 0.0%: (automatic)
0.1%~10.0%
The setting range of P04.02:0.0%~50.0%
P04.03
Motor V/F
frequency
point 1
When P04.00 =1, the user can set V//F curve through
P04.03~P04.08.
V/F is generally set according to the load of the motor.
Note: V1 ＜ V2 ＜ V3,f1 ＜ f2 ＜ f3. Too high or low
frequency voltage can overheat the motor excessively or
cause damage to the inverter.
The setting range of P04.03: 0.00Hz~P04.05
The setting range of P04.04, P04.06 and P04.08 :
0.0%~110.0%
The setting range of P04.05:P04.03~ P04.07
The setting range of P04.07:P04.05~P02.02 (the rated
frequency of motor 1)
0.00Hz
○
P04.04
Motor V/F
voltage
point 1
00.0%
○
P04.05
Motor V/F
frequency
point 2
00.00Hz
○
P04.06
Motor V/F
voltage point
2
00.0%
○
P04.07
Motor V/F
frequency
point 3
00.00Hz
○
P04.08
Motor V/F
voltage point
3
00.0%
○
