3. Starting up
3.1 Connecting up the circuit board washing machine
The circuit board washing machine ÖKO2000 must be set up in a horizontal position.
Water supply: Connect up according to the connection diagram page 5.
The water pressure should be at least 2 bar and not more
than 8 bar.
The machine must not be connected to a no-pressure
water heater.
Drain: Connect up according to the connection diagram page 5.
The local waste water regulations have to be observed!
Elect. connection: The washing machine must only be connected to a
220V - 230V AC supply though a correctly installed mains socket.
3.2 Installation of the filter unit
The supplied filter unit has to be mounted on the wall at or above the top of the machine
(see connection diagram).

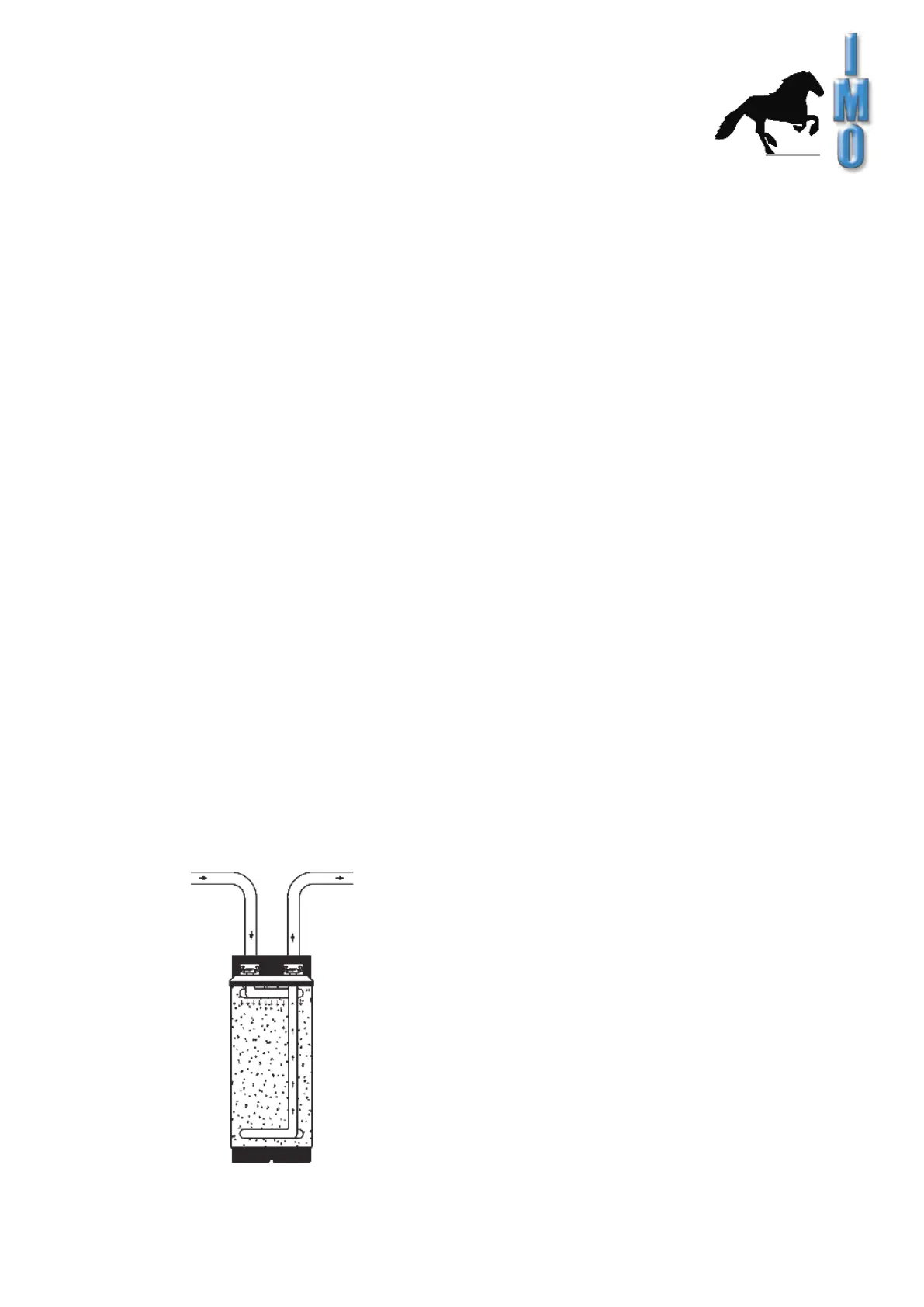

3.3 Removing the air from the deioniser cartridge
Please notice, that by starting up of a new deioniser cartridge the air inside removes by itself.
This can cause error messages, which you have to disregard.
The program interrupts and is to start again. This procedure is to retry till the cleaning progam
runs through (normal case 5-10 times).
For a faster deaeration a temporary operation with reverse flow direction is possible.
Therefore, the connections „inlet“ and „outlet“ have to be changed.
After some filling operations of the system, the connections have to be mounted at the
right positions again.
The remaining air can be removed at the vent valve in the cover.
GmbH
Normal operation
fresh water to Öko 2000
