IMO Oko 2000 - Version with Black Dosing Head and Transparent Lid

GmbH

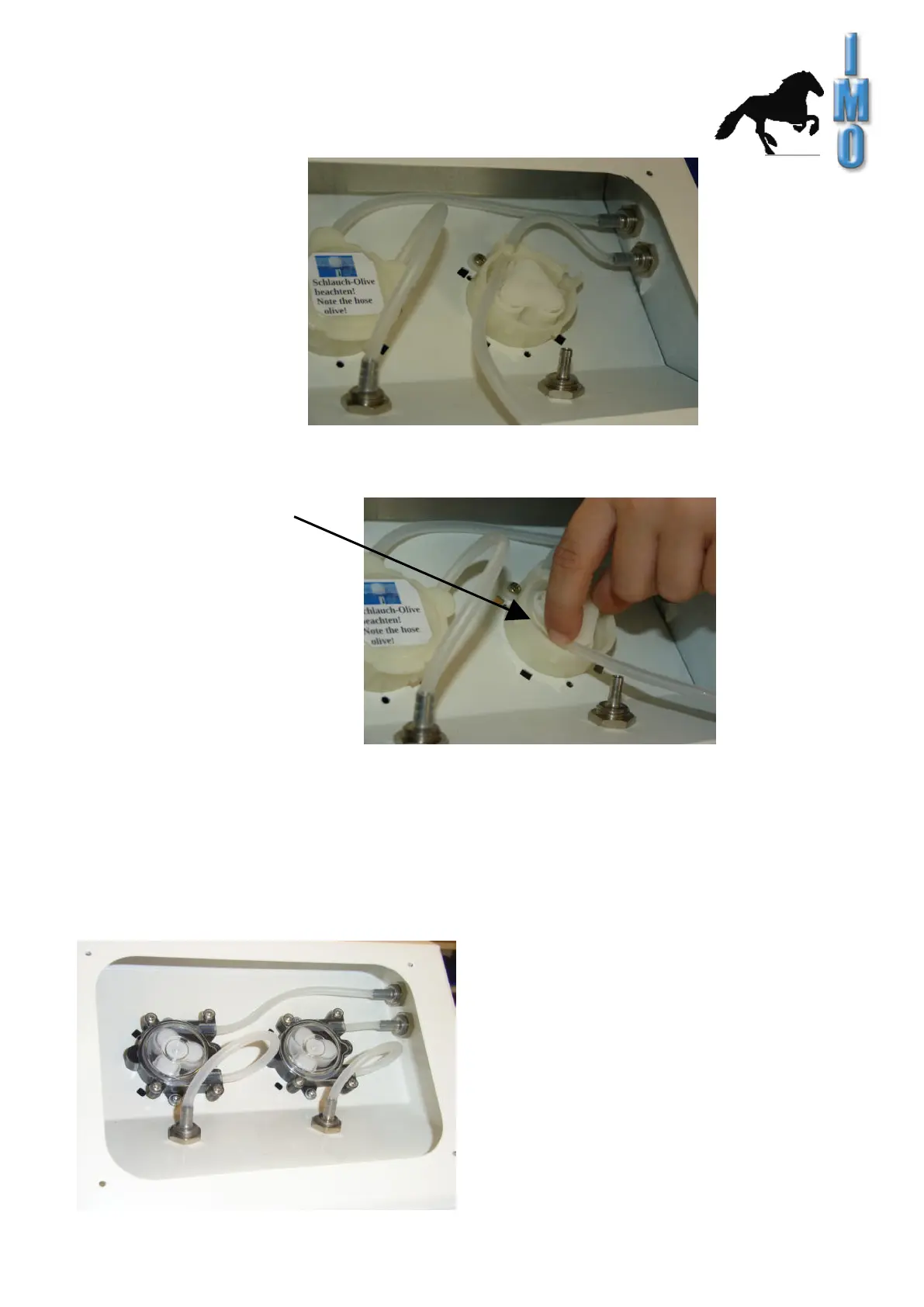

Attach the new hose with the inserted hose olive to
the metal connector as shown and
insert it into the dosing pump.
Insert the hose into the pump head while turning
the rollers counterclockwise and
guide the hose into the housing.
If the pump was removed for hose replacement, reinstall it now.
Attach the end of the
hose to the lower hose
connector.
IMO GmbH Gässlesweg 6 D-75334 Straubenhardt Tel.: 070 82 491 80 Fax: 604 36 www.imo-ag.com info@imo-ag.com
24
5.6.9 Version with black dosing head and transparent lid
To change the dosing hose, the dosing pump head
must be opened.
To do this, unscrew the 4 Crosshead screws
the fastening eyelets of the transparent cover
and remove the transparent cover.
