Connection diagrams

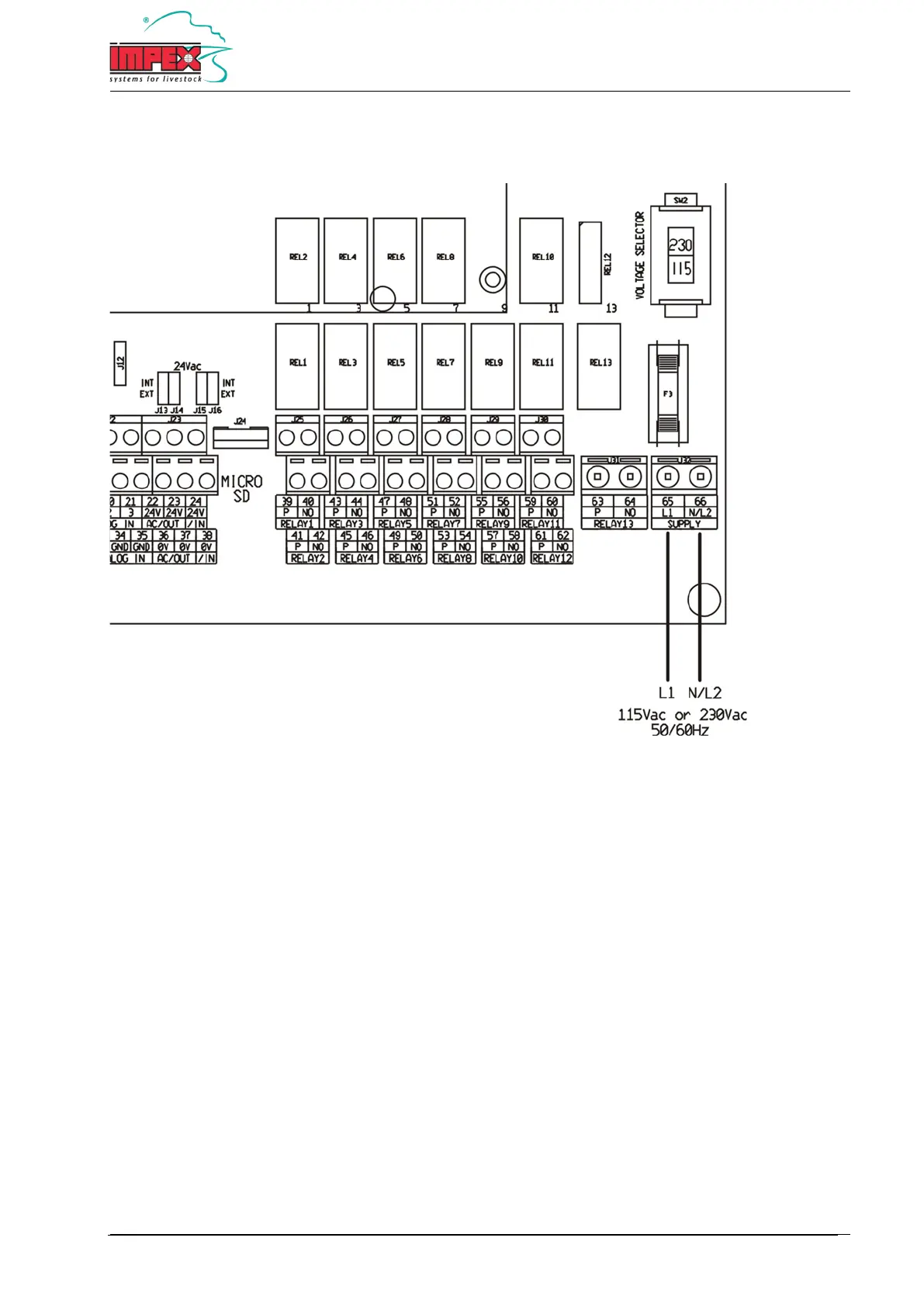

Electrical connection diagram

65 = Phase supply voltage

66 = Zero supply voltage

Note: It is possible to use 115VAC as well as 230VAC voltage. Set the switch to the desired voltage.

Caution: If the incorrect voltage is selected, the I-Control can be irreparably damaged.

Note: Connect the ground connection of the power supply to the ground block in the housing.
