I-Control manual page 28

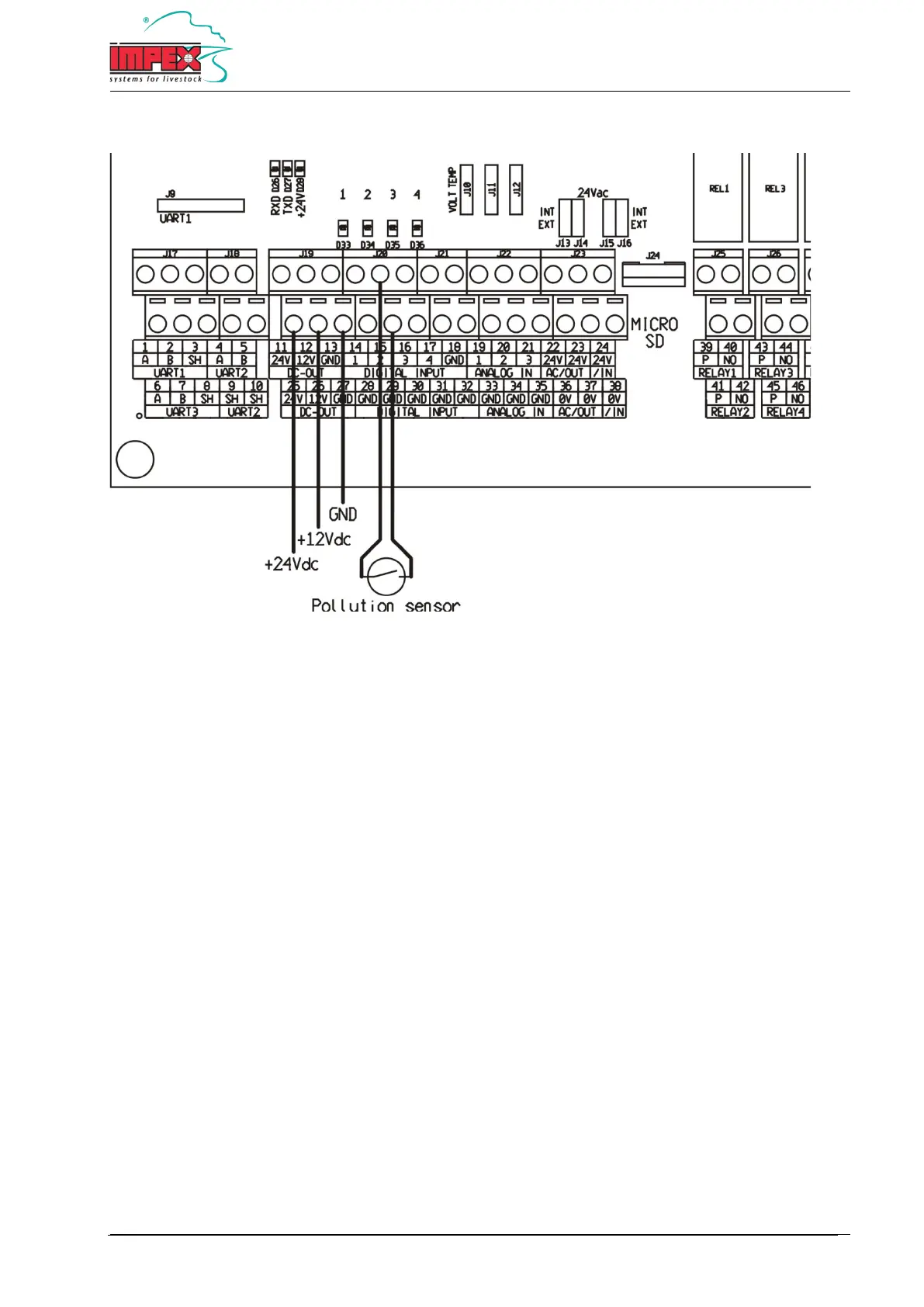

Digital dirty water sensor connection diagram
15 + 29 = Dirty water sensor input
15 = digital input
29 = GND
11 + 25 = 24V DC power supply
Maximum 50 mA.
12 + 26 = 12V DC power supply
Maximum 50 mA.
13 + 27 = GND power supply
Note: Always use shielded cable with a minimum diameter of 0,8 mm² for the dirty water sensor and connect the
shield to the GND terminal.
Note: The 12V or 24V power supply with a maximum of 50 mA can also be used to power a pollution sensor.
Note: The GND connection of the power supply is galvanically connected to all other GND connections, such as the
sensor inputs.
