I-Control manual page 33

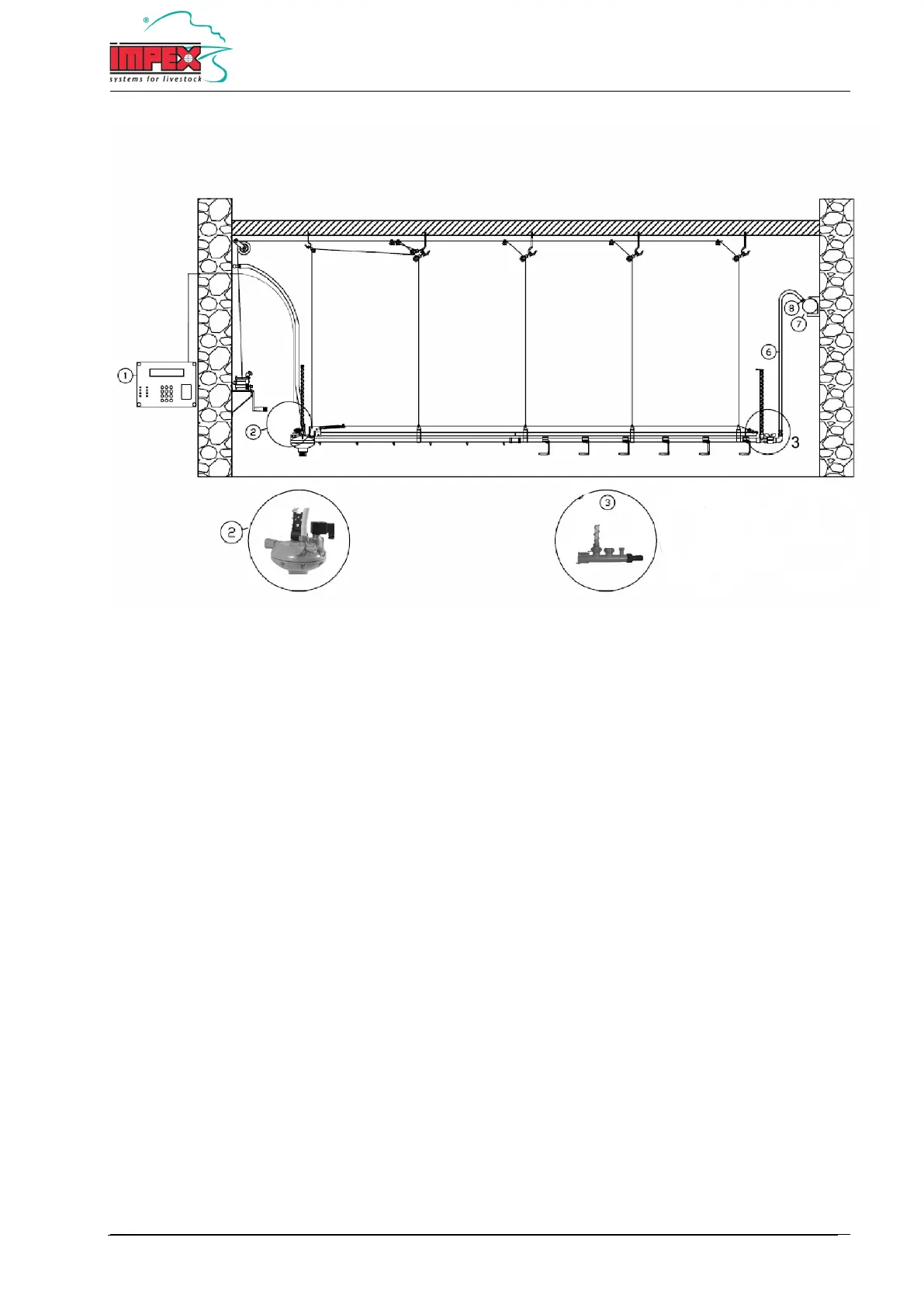

Installation drawing
1 13.00.60000 I-Control flush computer
2 12.00.01000 I-Flow pressure regulator with
12.01.20000 I-Flow flushing actuator
3 12.00.01500 I-Flow end air outlet set
25.02.04030 Power grip 22 x 30 mm
6 60.01.01217 Primabel tubing ¾” (5 mtr)
7 Drain pipe minimal 50 mm Ø
8 Connection Primabel tubing ¾” and drain pipe
- The installation of the drain pipe and the connection of the Primabel tubing ¾” to the drain pipe has to be done
locally by the installer because the installation of the drainpipe depends on type of housing.
- Dimension of the drainpipe should be minimal 50 mm Ø.
- The outlet of the tubing in the drainpipe must be minimal 1,5 mtr higher than the drinking line.
