Impex I-Control - 115 V;230 V Main Valve Connection Diagram - I-Control

I-Control manual page 22

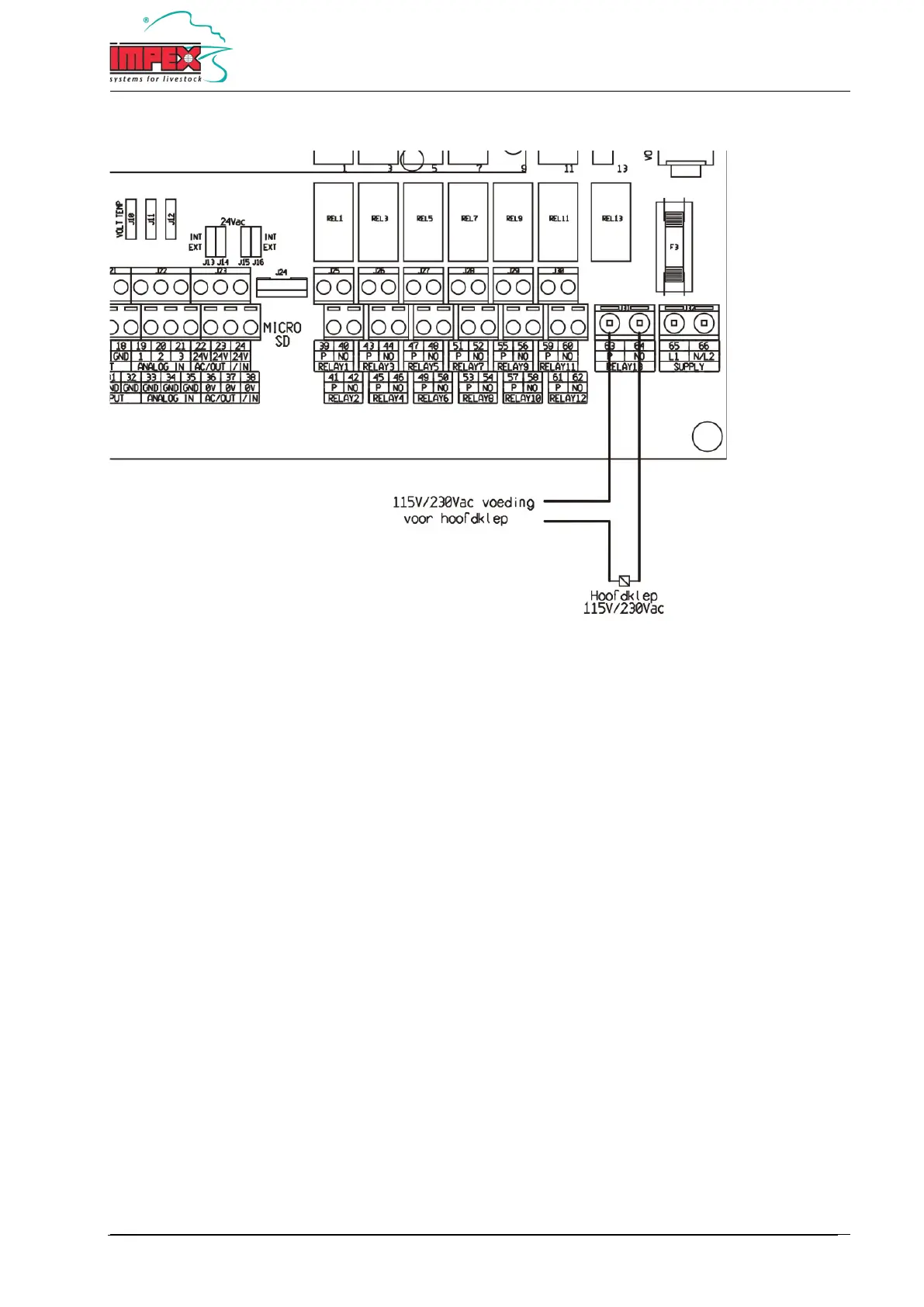

115V/230V main valve connection diagram - I-Control
63 + 64 = Main valve relay
Potential free max. 230VAC/2 Amp.
Note: The relay is potential free. A 230V connection has to be made. See diagram.
Note: The maximum relay load is 230VAC 2 Amp.
