10
When connecting power to the MicroLYNX, ensure the following:
 At least 18 gauge wire is used for the MicroLYNX-
4, 16 gauge for the MicroLYNX-7.
 +V and GND are not reversed.
 All connections are tight.
 Shielded twisted pair cabling is used, with at
least 1 twist per inch.
System noise makes
me run rough or lose steps! Please
use shielded twisted pair for motor
and power supply cabling to
minimize electrical
noise!

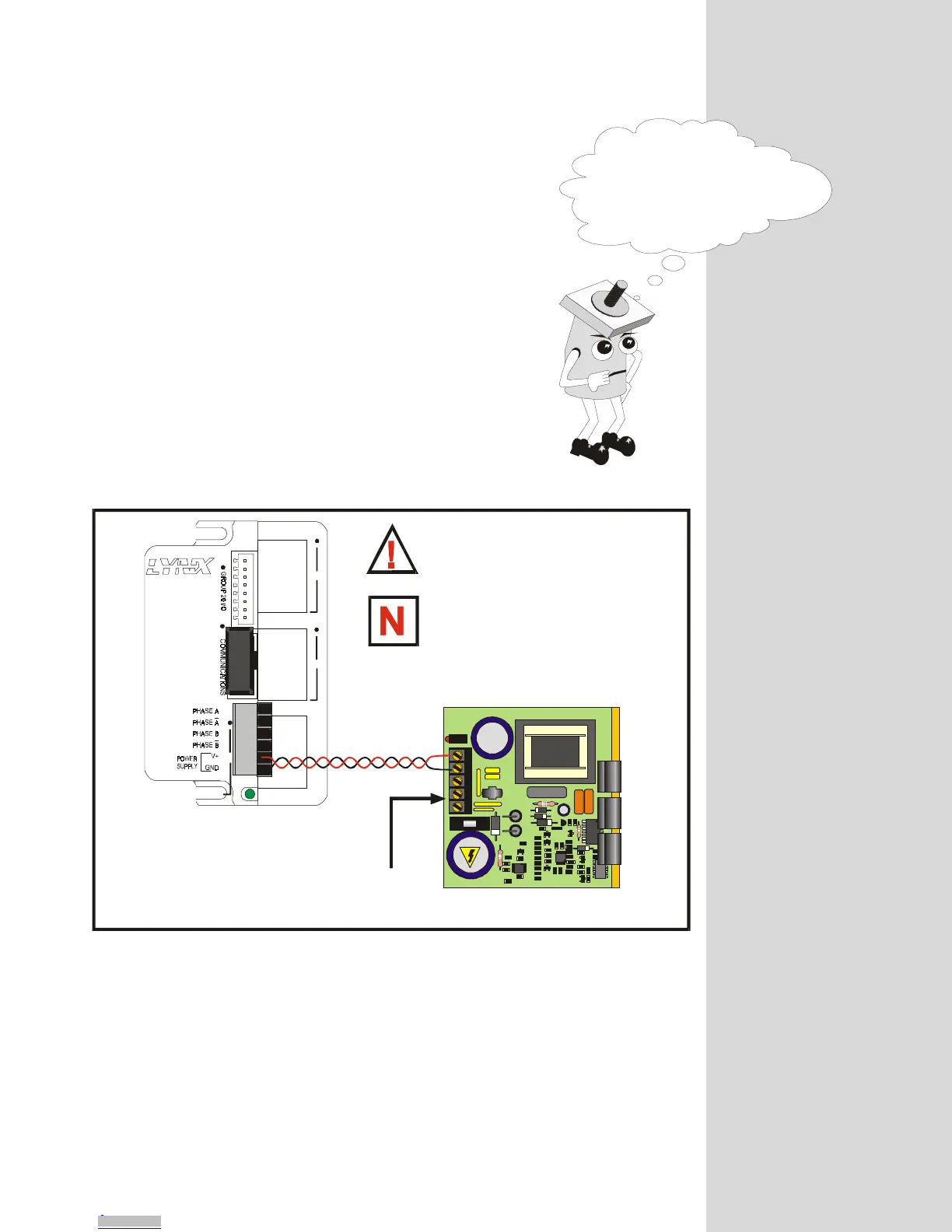

Figure 2.1: MicroLYNX Power Connection
ISP200-4
ISP200 - 4
MICRO
TM
MicroLYNX
12
3
RX
TX
CGND
+V
GND
120 VAC IN
Ensure that the DC output of
the power suppl
y
does not exceed
the maximum input voltage!
All power supply wiring should
be shielded twisted pair to
reduce system noise!
