Communications Specifications
See Sections 4 & 5 for connection and usage details.
Interface Type
COMM 1........................................................... RS-232
COMM 2........................................................... RS-485
# Bits per Character ....................................................... 8
Parity ................................................................................. None
Handshake ....................................................................... None
BAUD Rate ...............................................4800 to 38.8kbps (9600 Default)
Error Checking.........................................16 bit CRC (binary mode)
Communication Modes..........................ASCII Text or Binary
Isolated Ground ..........................................Common to COMM 1 and 2
Mechanical Specifications
Dimensions ...................................................................... See figure 1.1
# of Expansion Modules ............................................... 3
Cooling ............................................................................. Built-in fan
Recommended Mounting Hardware ........ 2 #6 (M3.5) machine screws
Mounting Screw Torque .............................. 5 to 7 lb-in (0.60 to 0.80 N-m)
Environmental Specifications
Operating Temperature ............................................... 0 to 50°C
Storage Temperature ..................................................... -20 to 70°C
Humidity........................................................... 0 to 90% non-condensing

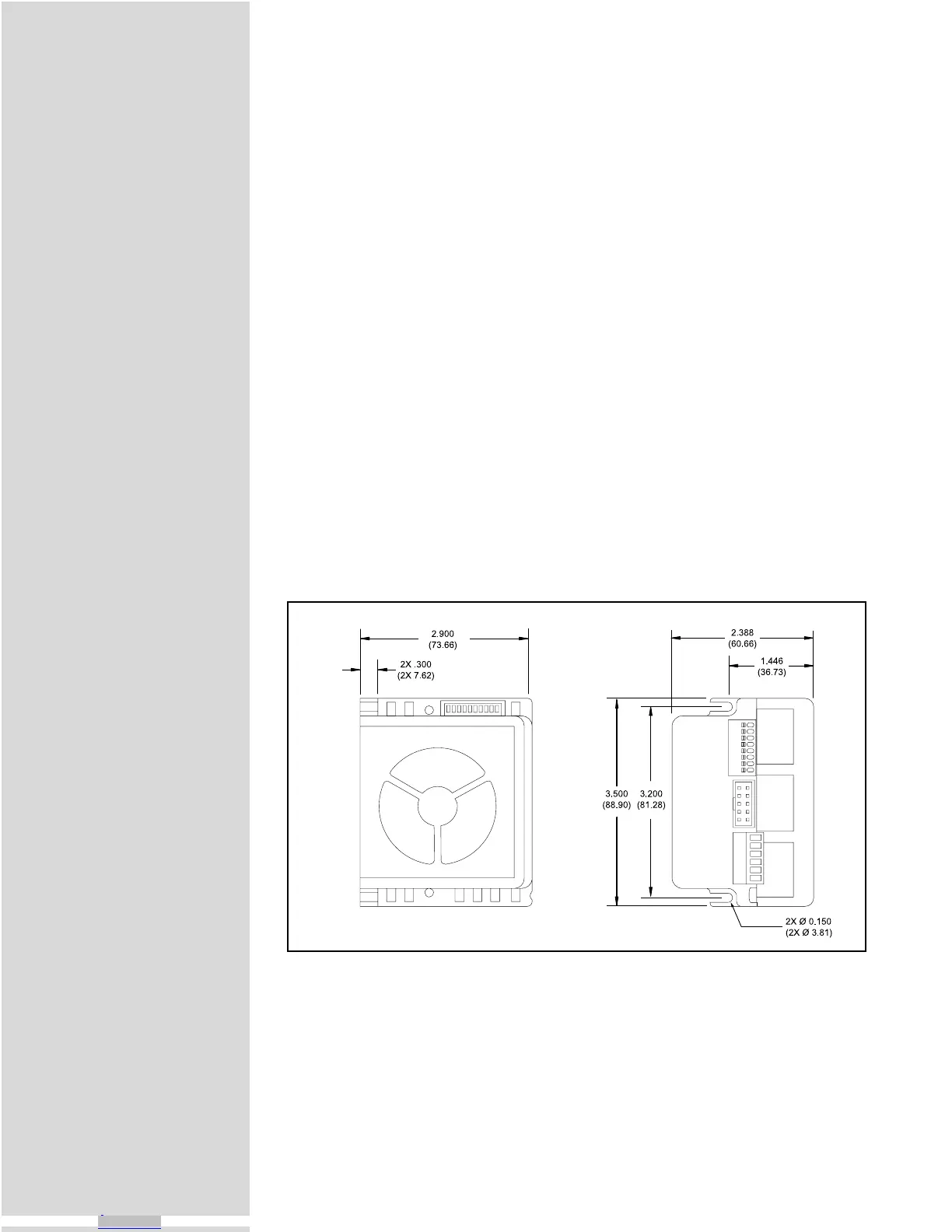

Figure 1.1: Dimensional Information, Dimensions in Inches (mm)
