IMS MicroLYNX - Section 12: Sample Applications; Feed Cut 1

67
Sample Applications
12
These applications are the result of an informal survey conducted by the IMS
Applications Engineering Department to learn the most common LYNX /
MicroLYNX 1 and 1-1/2 axis applications. Each application example contains an
application diagram, a flowchart and program code.
Feed Cut 1
This program feeds a web to length and switches an output to operate a tool such
as a cutter. The machine operator enters the feed length and batch count. The
operation begins when the START button is pressed, and ends when the batch is
complete or material runs out.
Feed Cut 1 applies to labeling, packaging, converting, etc.
PARTS MADE:11
Steppin
g
Motor
Material
Sensor
Nip Rollers
C utter
Human
Machine
Interface
(HM I)
START
STOP
MicroLYNX
or
LYNX Control
Module + Step
Motor Driver

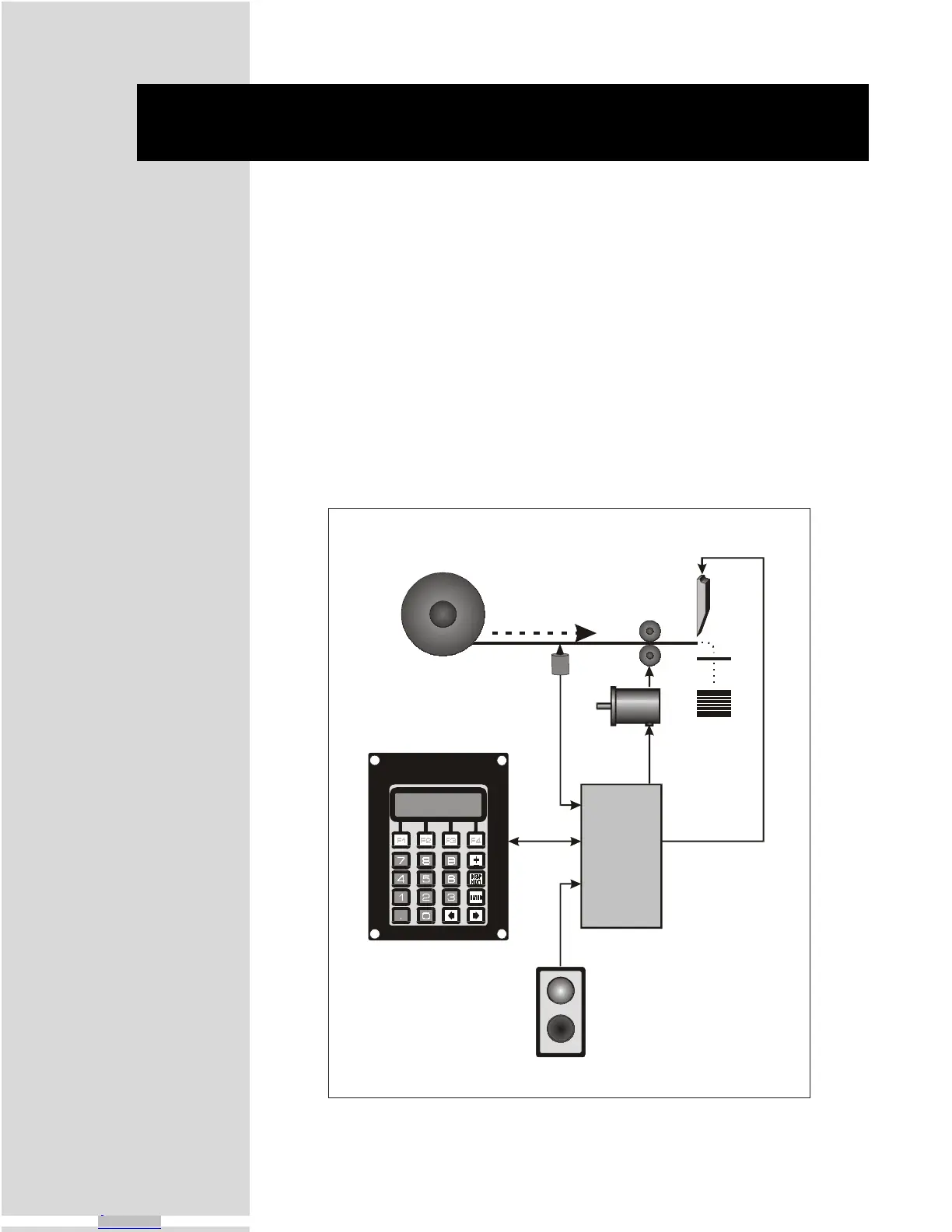

Figure 12.1: Feed Cut Application
