3203i - Manual # 99904380

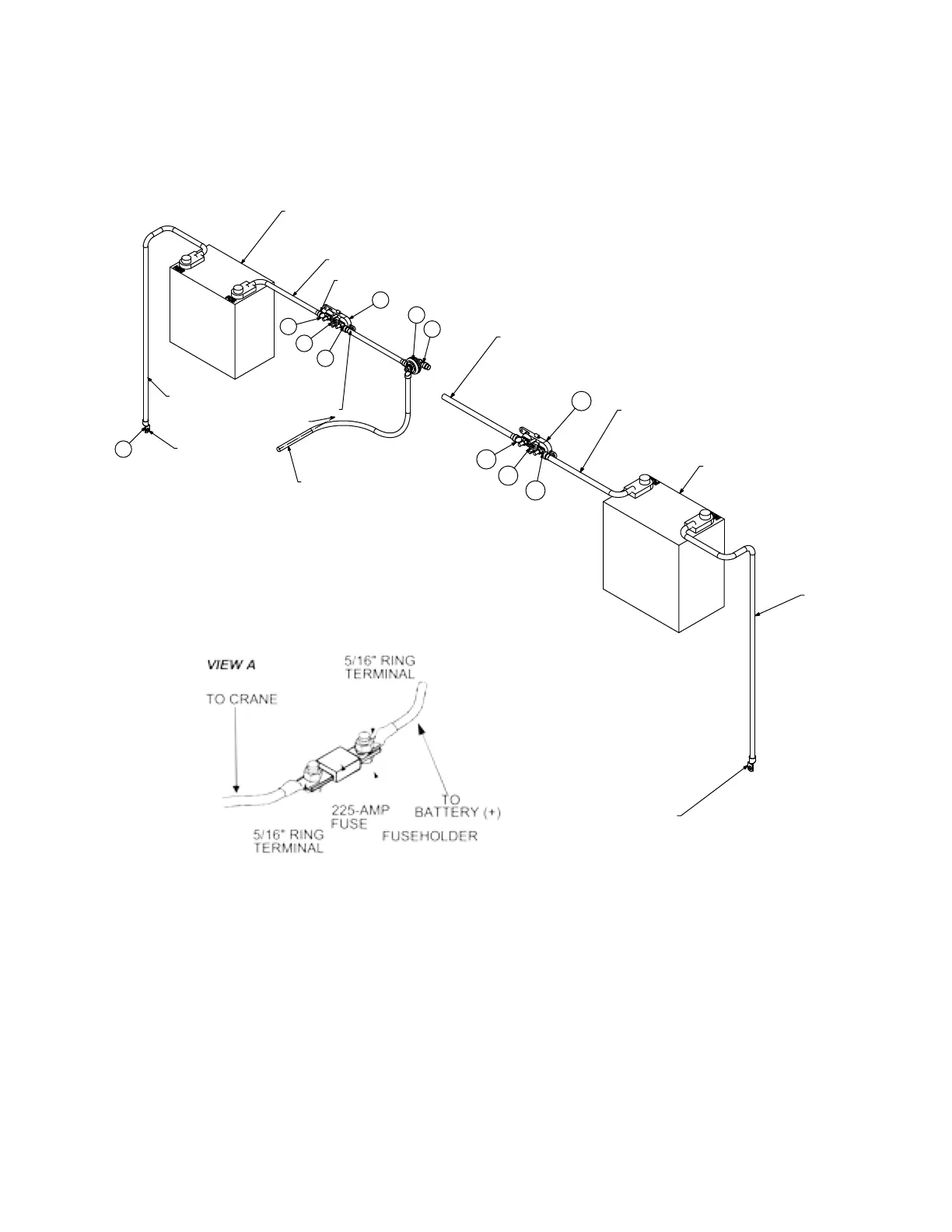

8. Mount the 225-amp fuse holder (item #11) close to the vehicle battery in a location which can be easily accessed if
the fuse needs to be replaced. Repeat with the auxiliary battery. Use approximately one foot (30.5 cm) of cable (item
#13) to connect the positive terminal on the vehicle batteries to the fuse holders. Connect the other end of each fuse
holder to the bulkhead pass-through connector from step #6, which is then connected to the crane power switch.
Cables c onnect to the f use holders using 5/16” (0 .79 cm) ring terminals (item #10 - 7704052 9). He at shr ink connec tions.
FROM ON-OFF SWITCH
IN CRANE BOX
1000 CCA
AUXILIARY
BATTERY (IN CRANE BOX)
11
12
13
11
11
TO CHASSIS GROUND
89044276 or 77040009
BATTERY (-) TO CHASSIS GROUND
(CUT TO LENGTH)
89044276 or 77040009
FUSE TO BATTERY (+)
(APPROXIMATELY 1FT)
13-CABLE #89044276 or
27-CABLE #77040009
(CUT TO LENGTH)
(CRANE ON-OFF
SWITCH TO FUSE)
HEAT SHRINK
HEAT SHRINK
TO CHASSIS GROUND
UNDERHOOD
BATTERY
13-CABLE #8
27-CABLE #7
(CUT TO LEN
13-CABLE #89044276 or
27-CABLE #77040009
(CUT TO APPROX. 1' (30.5 CM))
(FUSE TO BATTERY (+))
12
11
13
11
ITEMS WITHIN BOX ARE ONLY NEEDED
WHEN AUXILIARY BATTERY IS
INSTALLED IN CRANE BOX.
* MATCHED BATTERIES ARE REQUIRED*
13-CABLE #89044276 or
27-CABLE #77040009
(CUT TO LENGTH)
(CRANE ON-OFF
SWITCH TO FUSE)
29
11
