TS-ROM Setup Page 16 - 1
16
This menu appears only after the TS-ROM
BriteBox™ is installed, and after console power
is turned on (disregard this Chapter if a TS-ROM
is not installed).
The TS-ROM relay menu provides the means to
control external devices (such as STPs). The
TS-ROM has 4 or 8 output channel relays that
can be used for this purpose.
Channel relays (and the external devices wired
to these) will switch on / off in response to alarms
that are assigned to the relay
output groups
.
The installer must document the use for
each channel-relay, the device that each
controls, proper action or operation, and
the power source.
See Worksheets for applicable Output Group
assignments. Use the Table of Contents (TOC)
to locate Output Group Worksheets.
Grace Period
Grace Period is an
alarm override for a
programmed interval of time (in minutes).
Input the smallest possible grace period.
Consider the actions for all external devices that
are wired to the TS-ROM relays.
If one external
device cannot have an override grace period, then
leave the grace period at 0 for no override.
If used to disable dispensing when product levels
are low or water levels high, then be sure to set
the grace period to a minimum (to prevent the
pump from running dry and overheating, or to
prevent pumping water).

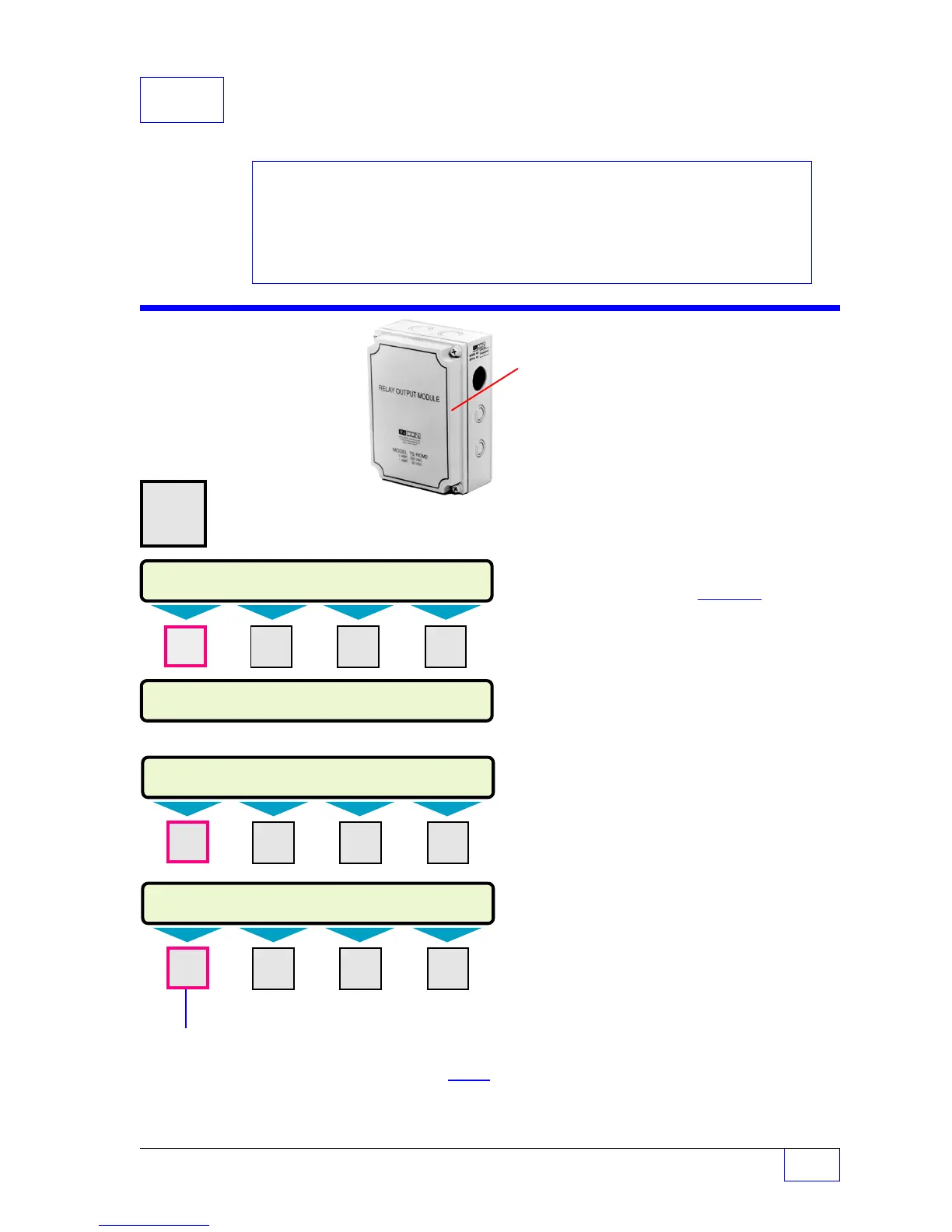

16 TS-ROM Relay Output Module
SETUP PROGRAMMING
TS-ROM Menu
H U
MENU
× Press this key and follow the
7
highlighted sequence below
Press
DOWN
▼ key two or three times...
SETUP MENU (MORE)
EXIT SYSTEM TANKS PROBES
NOTE
☞
See the Table of Contents to find topics in
this manual. See the Preface for general
information about this manual. And see the
Installation, Operator’s, TroubleShooting
Guides, and Application Notes for other
reference material.
Contents:
TS-ROM Menu
Grace Period
TS-ROM Channel 1–8 Output
Groups Alarm Assignments
SELECT MENU OPTION
SETUP
UPGRADE LANGUAGE DATALOG
M1 M2 M3 M4
SETUP MENU (MORE)
TS-ROM
SENSORS AUX INPUT IO MODULE
M1 M2 M3 M4
TS-ROM (MORE)
GRACE PRD CHANNEL 1 CHANNEL 2 CHANNEL 3
M1 M2 M3 M4
TS-ROM
TS-ROM GRACE PERIOD Allows normal operation for a short time
0
0 to 120 minutes
(Input time for relay to remain closed) Pressing
ACK
starts the grace period and overrides the alarm-lockout on
the TS-ROM channel relay.
To Next Page
