Inficon BPG402-SE - Making Two Ethercat Interface Cables (BPG402-SE)

22
tina46e1-b (2017-12) BPG402.om

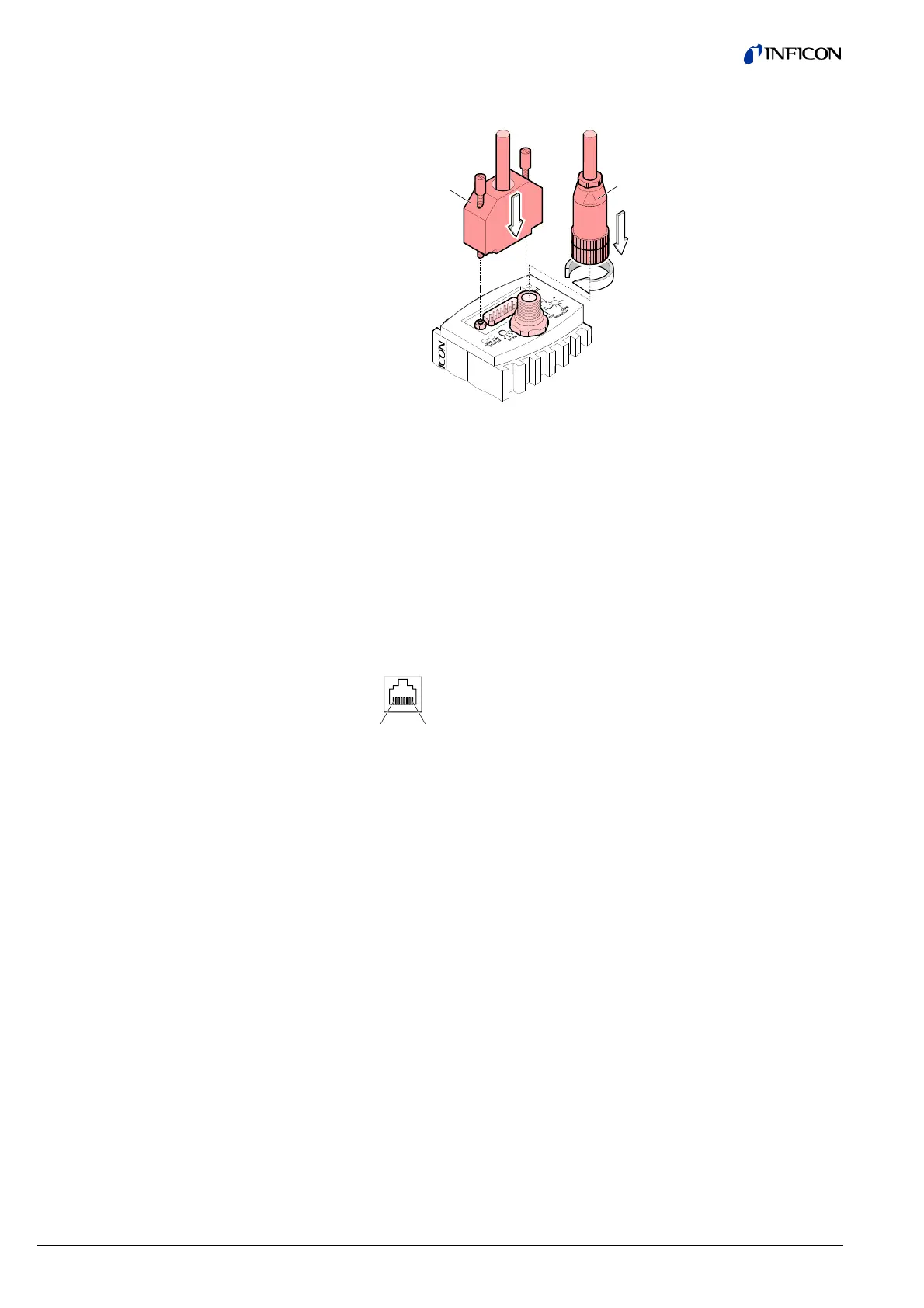

 Plug the DeviceNet (and sensor) cable connector into the gauge.
Sensor cable
DeviceNet cable
 Lock the DeviceNet (and sensor) cable connector.
If no Ethernet cables are available, make two according to the following indications:
Shielded Ethernet Patch cable (quality CAT5e or higher).
 Pin assignment:
81
FCC68, 8-pin,
male, soldering side
Pin 1 TD+ Transmission data +
Pin 2 TD– Transmission data –
Pin 3 RD+ Receive Data +
Pin 4 not used
Pin 5 not used
Pin 6 RD– Receive Data –
Pin 7 not used
Pin 8 not used
3.2.2.3 Making two EtherCAT
Interface Cables
(BPG402-SE)
Cable type
Procedure
