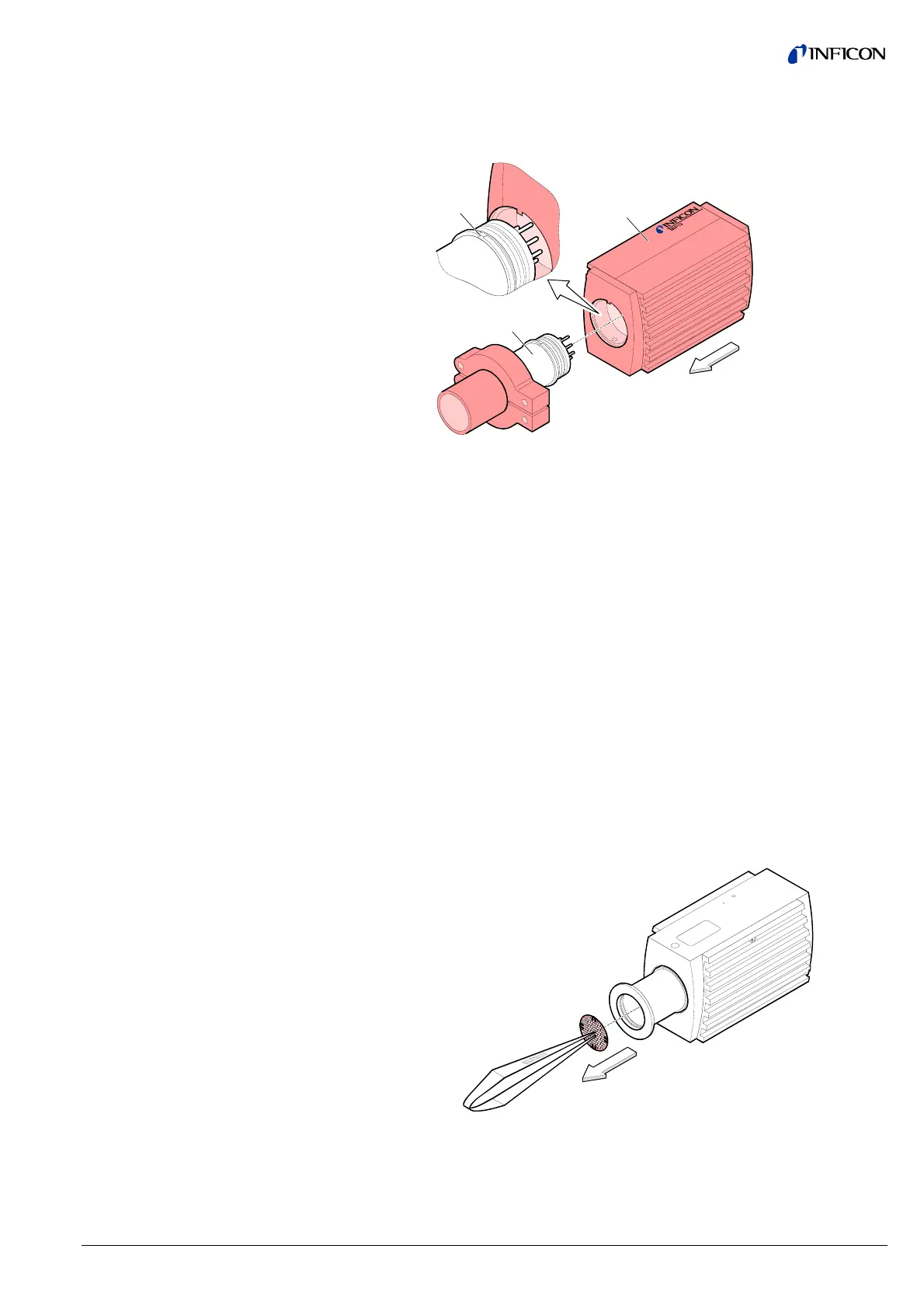

Place the electronics unit (2) on the sensor (3) (be careful to correctly align
the pins and notch (4)).
4
3
2
Slide the electronics unit in to the mechanical stop and lock it with the hexa-
gon socket set screw.
In severely contaminating processes and to protect measurement electrodes opti-
cally against light and fast charged particles, replacement of the built-in grid by the
optional baffle (→ 47) is recommended.
Gauge deinstalled ("Deinstallation" → 41).
• Baffle (→ 47)
• Pointed tweezers
• Pin (e.g. pencil)
• Screwdriver No 1
Carefully remove the grid with tweezers.
Installing the electronics unit
3.1.2 Using the Optional Baffle
Precondition
Required tools / material
Installation
