Infineon TLE92464ED User Manual

User Manual 6 V1.1
2021-05-03
Next Generation Solenoid Driver
Evaluation Kit User Manual

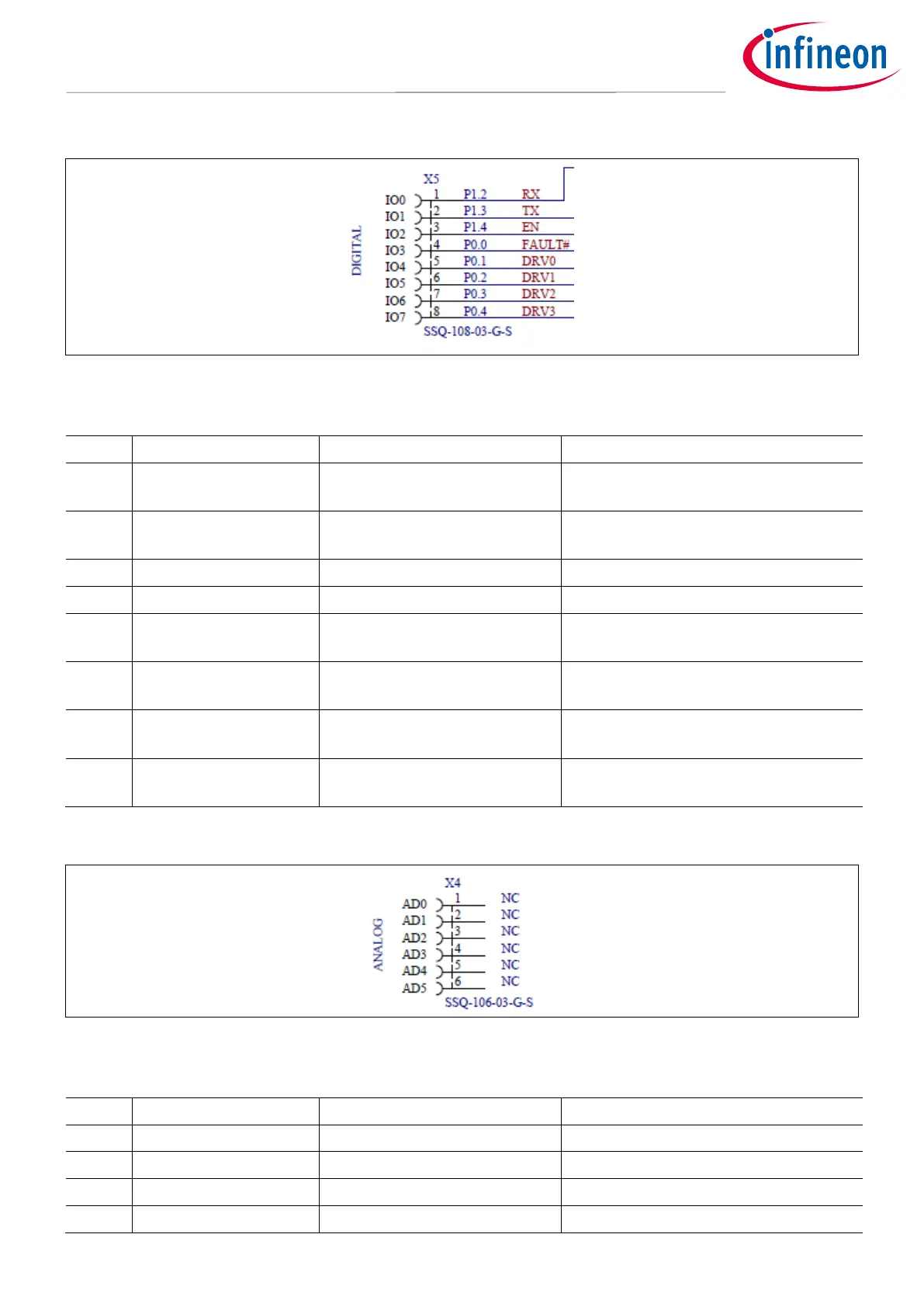

Figure 5 Digital IO Connector X5
Table 3 Digital IO Connector X5
Pin no.
Arudino™ Signal Name
Evaluation PCB Signal Name
Description
1
IO0
RX
UART Receive – close DIP switch 4 to
use it as reset signal source (digital IO)
2
IO1
TX
UART Transmit – close DIP switch 3 to
use it as reset signal source (digital IO)
3
IO2
EN
TLE92464ED Enable Input Pin
4
IO3
FAULT#
TLE92464ED Fault Output Pin
5
IO4
DRV0
TLE92464ED DRV0 Pin for direct drive
mode of Channel 0
6
IO5
DRV1
TLE92464ED DRV1 Pin for direct drive
mode of Channel 1
7
IO6
DRV2
TLE92464ED DRV2 Pin for direct drive
mode of Channel 2
8
IO7
DRV3
TLE92464ED DRV3 Pin for direct drive
mode of Channel 3
Figure 6 Analog Connector X4
Table 4 Analog Connecotr X4
Pin no.
Arudino™ Signal Name
Evaluation PCB Signal Name
Description
1
AD0
X4.1
Not connected
2
AD1
X4.2
Not connected
3
AD2
X4.3
Not connected
4
AD3
X4.4
Not connected
