InfiNet Wireless R5000 Technical User Manual
Copyright © 2004-2006 by InfiNet Wireless Limited.
9

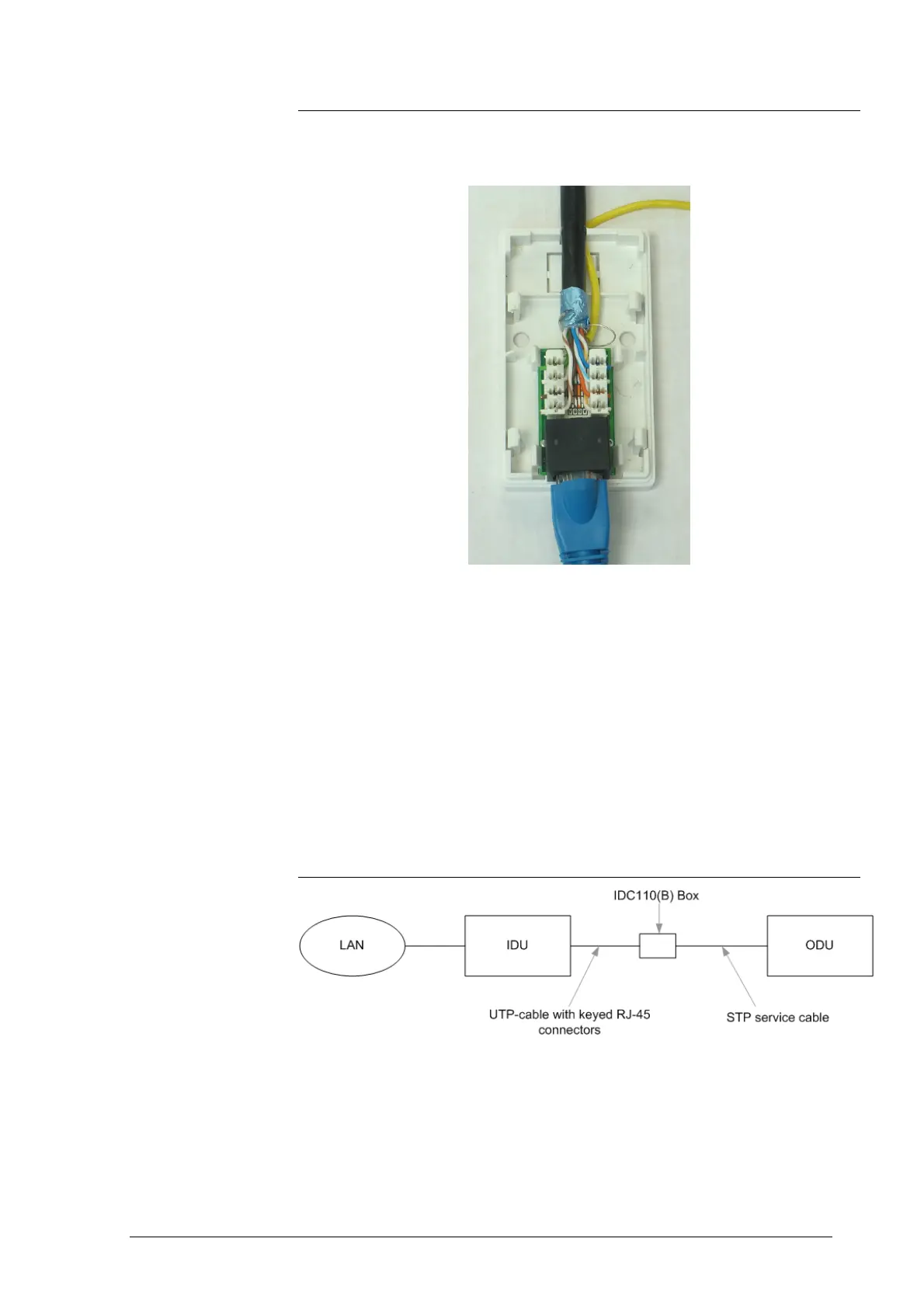

IDC110(B) Distribution Box
Distribution box is required to transfer the signal from STP service cable going
from ODU into UTP RJ-45 keyed cable going to IDU. The inside of the box is
shown on the picture below.
Wires are distributed in the following manner (color-by-color):
1 – White-orange
2 – Orange
3 – White-green
4 – Blue
5 – White-blue
6 – Green
7 – White-brown
8 - Brown
Connection scheme for IDU-5000-RJ
