InfiNet Wireless R5000 Technical User Manual
Copyright © 2004-2006 by InfiNet Wireless Limited.
52

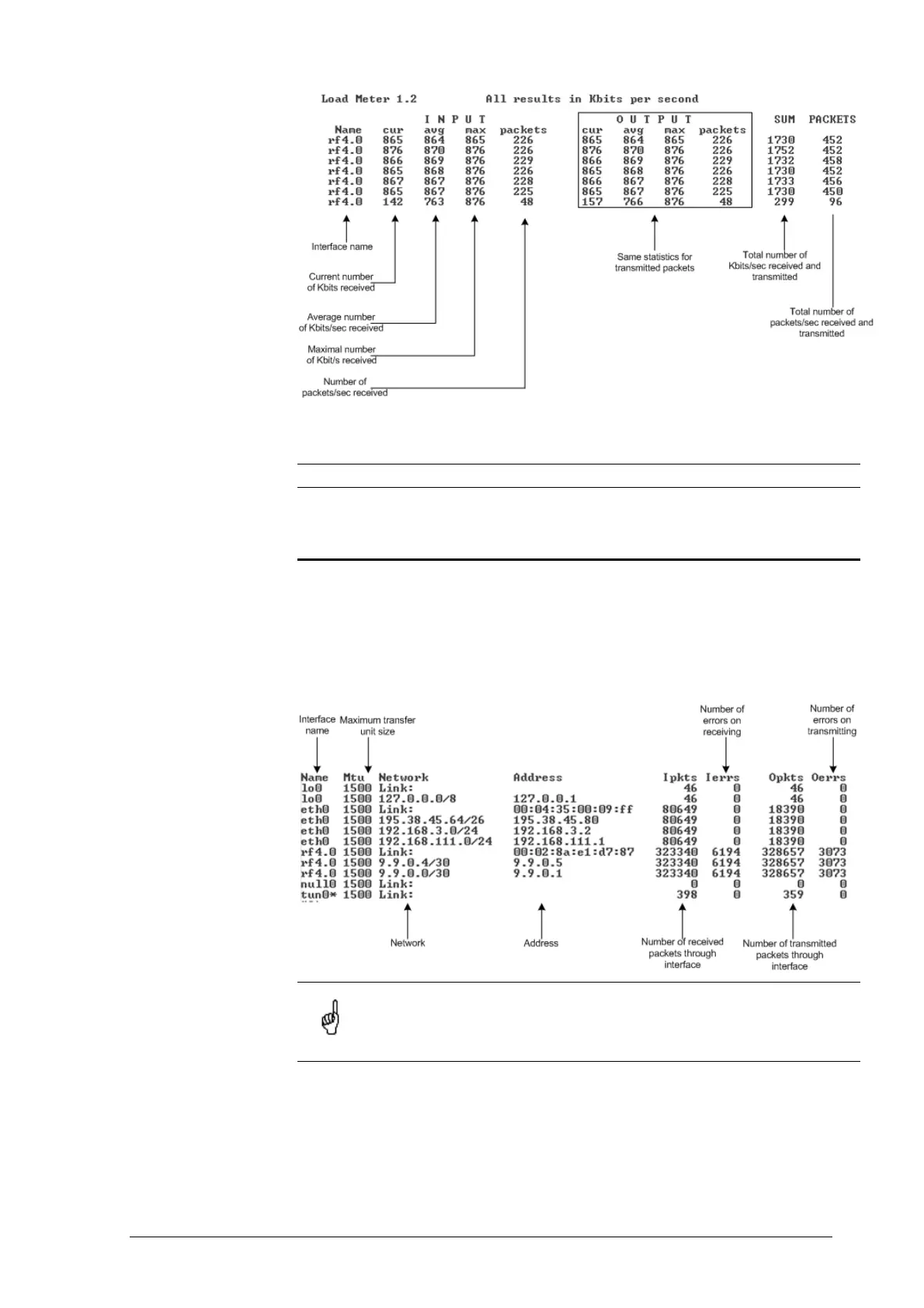

To run load meter like it is shown above, please type:
loadm –l <IF-NAME>
Acquiring interfaces statistics
Interface statistics can be acquired using netstat module which includes two
modes:
• Routing tables output (using “-r” parameter with the command)
• Interfaces statistics output (using “-I” parameter with the command)
Below picture shows the example of interfaces statistics output.
If the interface has several aliases the statistics is still measured for
physical interface in a whole. For example, see rf4.0 or eth0 interfaces
above. The numbers shown in 4 right columns correspond in physical
interface.
