InfiNet Wireless R5000 Technical User Manual
Copyright © 2004-2006 by InfiNet Wireless Limited.
66
IX. Supplementary information
1. Connectors soldering schemes

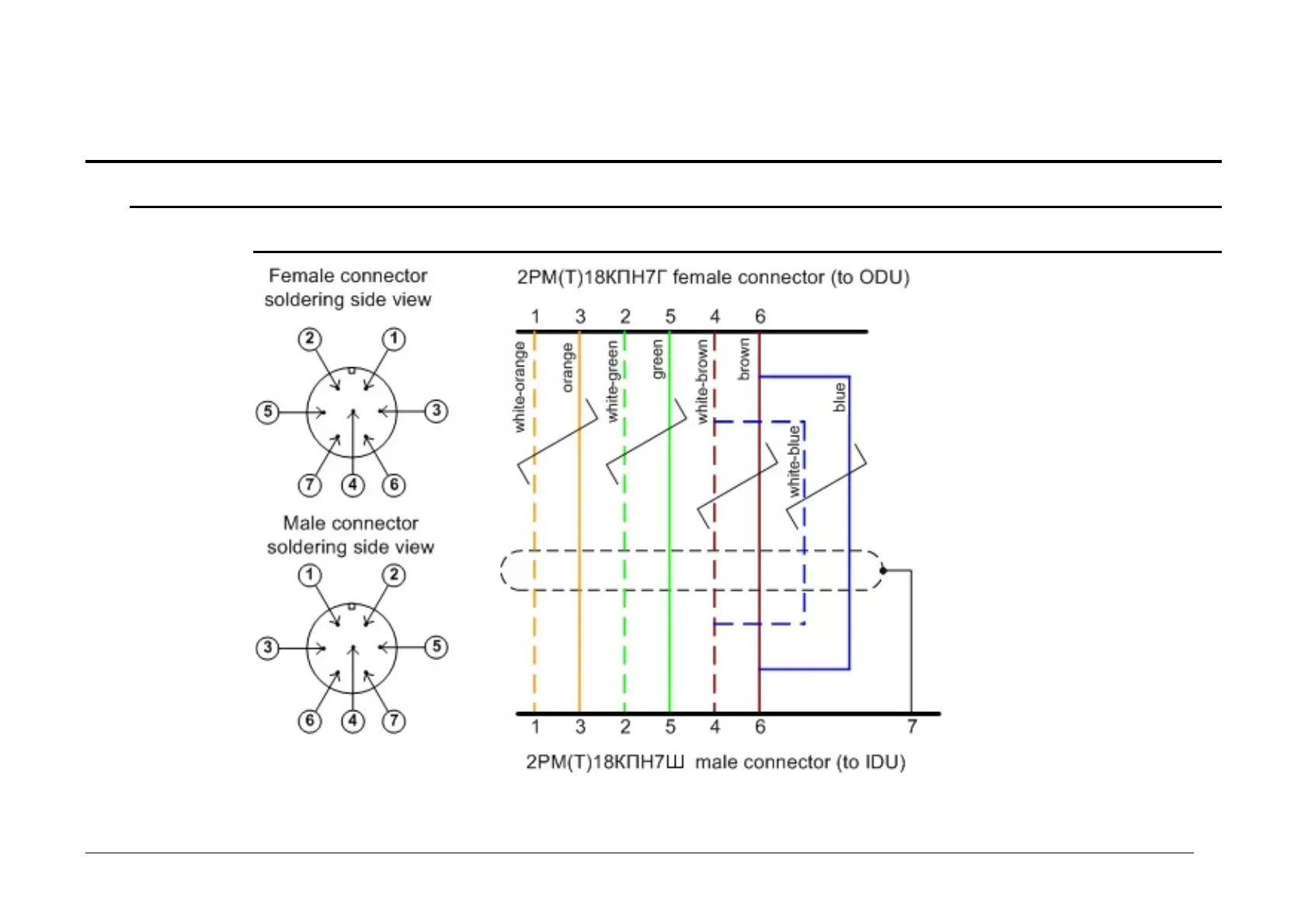

«Screw Lock» service cable connector soldering scheme
