InfiRay P2 Pro User Manual

6
3. Software Function
3.1. Simple Mode

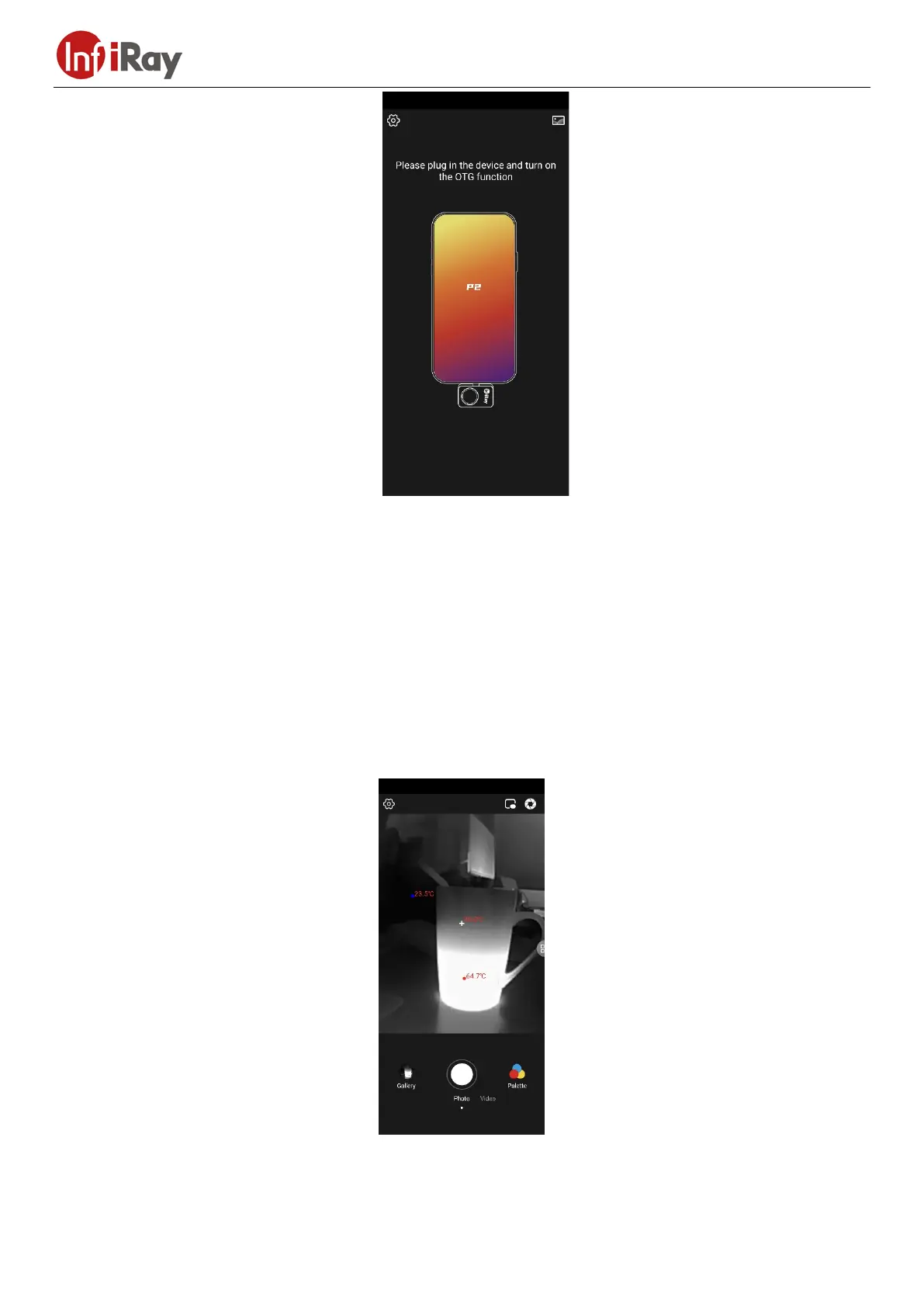

The app's home page includes upper and lower function areas and an image area in the middle. From left to right of the
upper function area, they are Settings, Dual-Spectrum Switch, and Image Correction; from the left to right of the lower
function area, they are Gallery, Photo, Video, and Palette; and the image area in the middle is used to display infrared
imaging, temperature measurement results, and other information.

InfiRay P2 Pro Specifications

General

Resolution	256x192
Frame Rate	25 Hz
Pixel Size	12μm
Accuracy	±2°C or ±2%
Focus Mode	Fixed
Interface	USB Type-C
Focus	Fixed
NETD	<40mK
Temperature Range	-20°C to 550°C
Spectral Range	8-14μm
Display	Via connected device
Battery Life	N/A (USB powered)
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
