Two-Post Rack Mounting
Infoblox provides a pair of rack mounting ears as part of the Accessory Kit for your appliance. For optimal physical
stability of the appliance in a two-post installation, you use the provided ears to mount the appliance from its rear
to the posts of the rack.
To mount the appliance to an equipment rack and secure it at the rear rack posts:
1. Align the mounting holes on the rack ears with the lower front mounting holes on each side of the chassis.
2. Attach a rack ear on each side of the chassis with two (2) 8-32 screws, as shown in Figure 7.

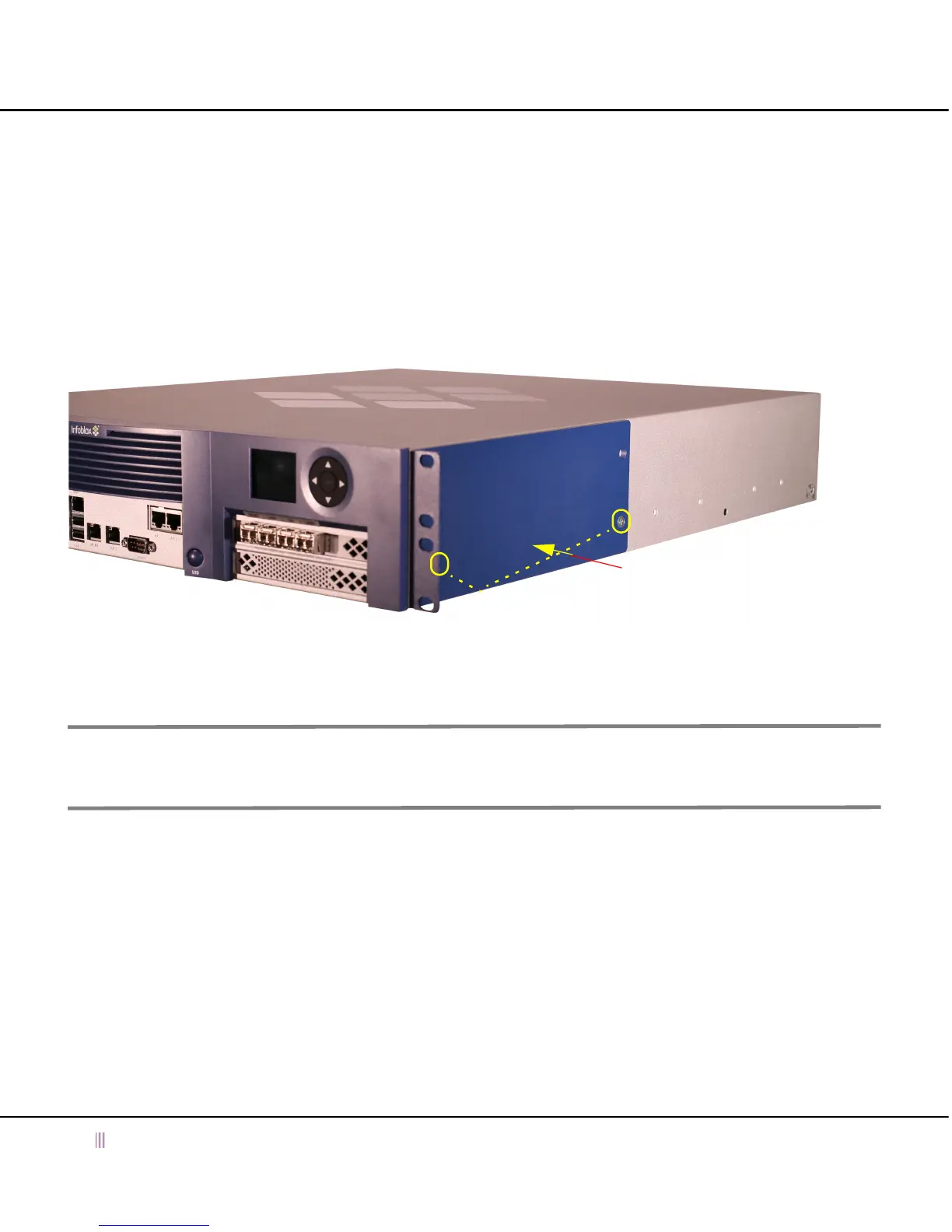

Figure 7 Rack Ears for Two-Post Rack Mount
3. With one person on each side, lift the appliance and position it in the equipment rack.
4. Attach each rack ear to the equipment rack with two (2) 10-32 screws on each side.
Four-Post 600mm Rack Mounting
Caution: The Four-Post 600mm chassis rack rails kit provided with the Infoblox 2200 Series appliance provides only
a limited range of travel. It does not extend through the entire depth of the equipment rack. Exercise caution when
withdrawing the appliance from its position in the equipment rack.
For a four-post rack mount, you combine the bundled pair of rack ears with a pair of chassis rack rails providing up
to 600mm depth in a four-post rack. The chassis rack rail assembly is bundled with the appliance at time of
purchase. This kit also is provided as a field-replaceable unit; see Replaceable Unit and SFP Part Numbers in this
Guide for information. The chassis rack rail kit is designed to allow one person to perform the physical installation
of the rack rail kit and the appliance.
1. Align the mounting holes on the rack ears with the front-most mounting holes on each side of the chassis.
2. Attach the rack ears (provided as part of the Accessory Kit) to the front end of each side of the chassis with two
(2) 8-32 screws, as shown in Figure 7.
3. Slide the inner chassis slide rails out of the rack slide brackets, as shown in Figure 8.
