Introduction to the Infoblox 2200 Series
12 Infoblox Installation Guide

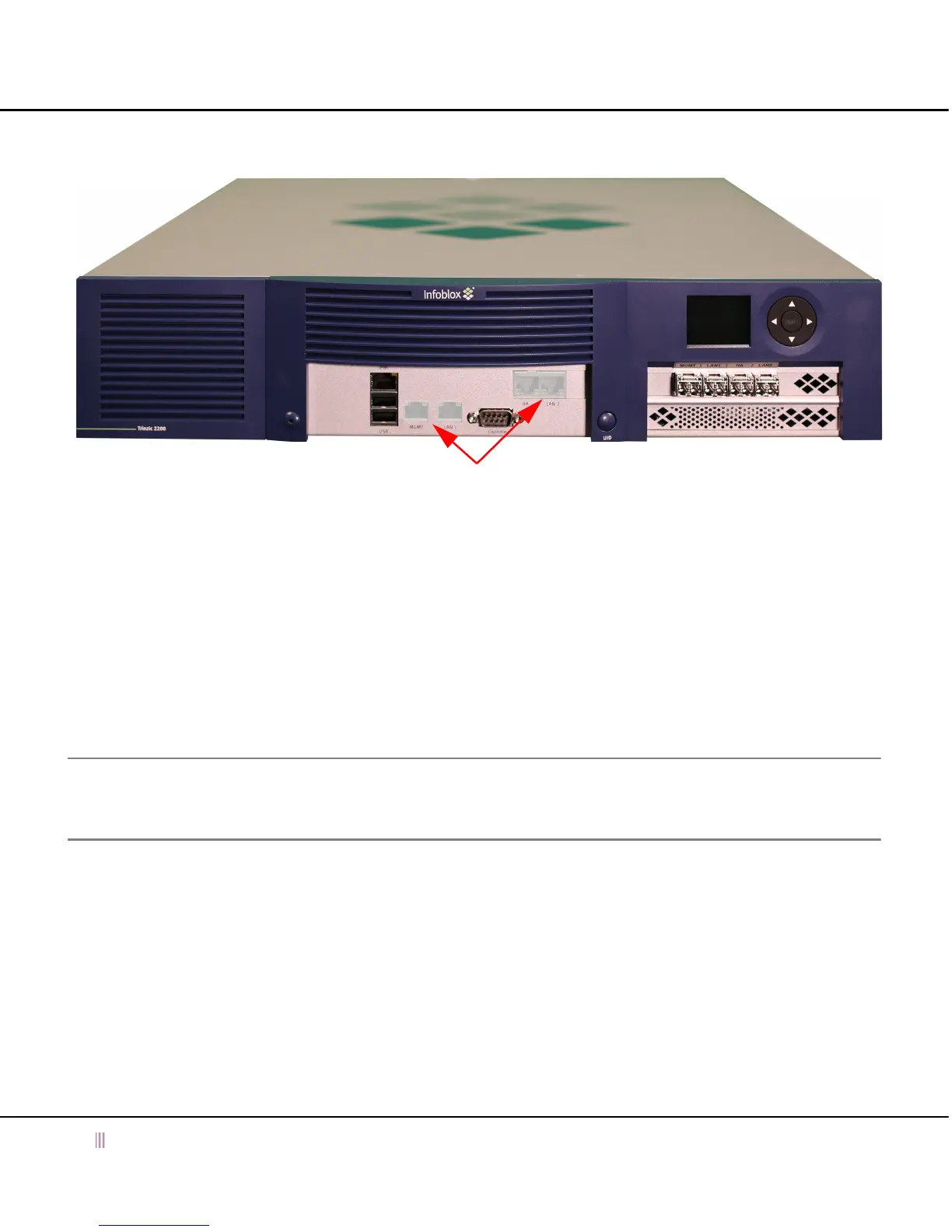

Figure 4 Infoblox 2200 Series, Front View with Four Optical (SFP or SFP+) Interfaces
In optional configurations for the Infoblox 2200 Series, the Infoblox 1GbE SFP or 10GbE SFP+ ports replace the
functionality in the original system MGMT, LAN1, HA and LAN2 ports, thereby disabling the built-in MGMT, LAN1, HA
and LAN2 ports. 10GbE support accepts Infoblox-provided SFP+ 10GbE Short Range and Long Range transceivers,
Cisco SFP+ Direct Attach 10GSFP+Cu, or HP HPJ9283B SFP+ Direct Attach 10GSFP+Cu transceivers.
You may mix media types in the set of ports (e.g., two copper interfaces and two fiber interfaces).
SFP and SFP+ transceivers may be used in a mixed configuration in a 4-Port 10GbE system. One possible use case
involves installing 10GbE SR SFP+ transceivers in the LAN1 and LAN2 ports for the Trinzic TE-2210 or TE-2220
appliance, and installing 1GbE SFP copper transceivers in the MGMT and HA interfaces.
Note: For ND-2200 and TR-2200 appliance models configured with 1GbE SFP or 10GbE SFP+ interfaces, the HA port
is reserved for future use and cannot be used for network applications. Order of ports from left to right is otherwise
the same.
See the section Infoblox 2200 Series Field Replaceable Units for specific information on part numbers, availability,
and device compatibility.
Interface Connector Pin Assignments
An Infoblox Infoblox 2200 Series appliance has three types of ports on its front panel:
• USB port (reserved for future use)
• Male DB-9 console port
• RJ-45 10Base-T/100Base-T/1000Base-T auto-sensing gigabit Ethernet ports
1GbE or 10GbE configuration
MGMT-LAN1-HA-LAN2
in order from left to right
(HA port is inactive for PT-2200/
TR-2200/ND-2200 appliances)
Alternate port configuration
disables built-in MGMT, HA, LAN1
and LAN2 ports.
