Infoblox 2200 Series Field Replaceable Units
38 Infoblox Installation Guide
3. Position the new fan module in the bay, and push it forward until it is fully seated against the back plane.

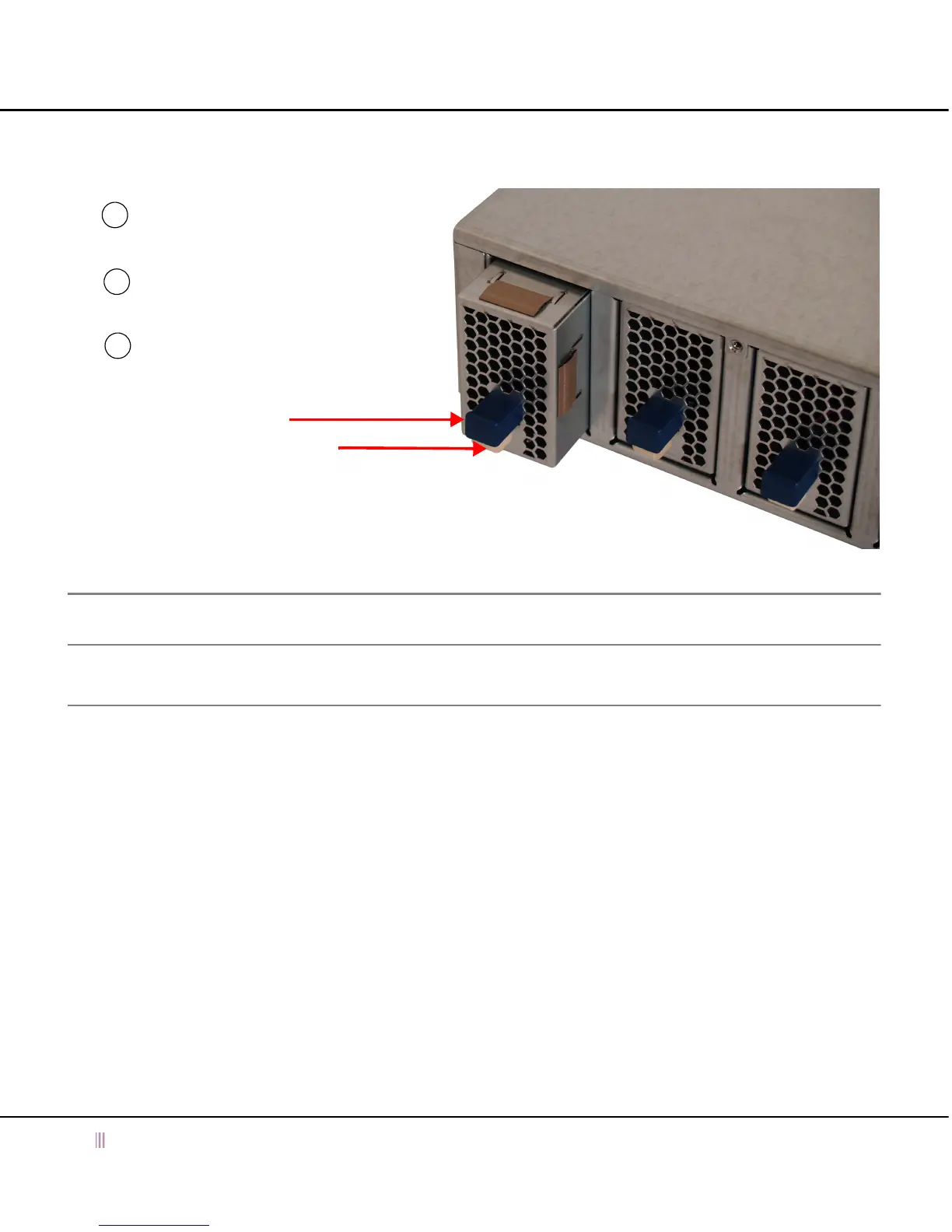

Figure 17 Removing a Fan Module
Changing AC Power Supplies
Note: Before changing the power supply, make sure that it is securely cabled. An apparently failed power supply
may simply be improperly connected to its power source.
You can order a second power supply to activate a redundant 1+1 configuration, as shown in Figure 18. In
redundant configuration, power supplies are “hot-swappable,” allowing removal or replacement of one power
supply without interrupting appliance operation and network services.
Redundant power supplies share the power load. If one power supply fails, the other automatically assumes the full
load and the appliance sends a system alarm. This configuration minimizes the chance of system failure due to
failure of an individual power supply.
When a power supply fails for any reason, the Grid Manager displays a power supply alarm. The Grid Status widget
on the Dashboard of the Grid Manager also displays an error. The appliance sends an email notification and reports
an SNMP trap.
Figure 18 illustrates the replacement process for an AC power supply.
Press the catch-release lever
up toward the grip handle.
1
2
Press both the lever and
handle together.
Catch-release lever
(White)
Handle
3
Grip the handle and pull the
fan module out.
