Changing AC Power Supplies
For the Infoblox 2200 Series Platforms 39

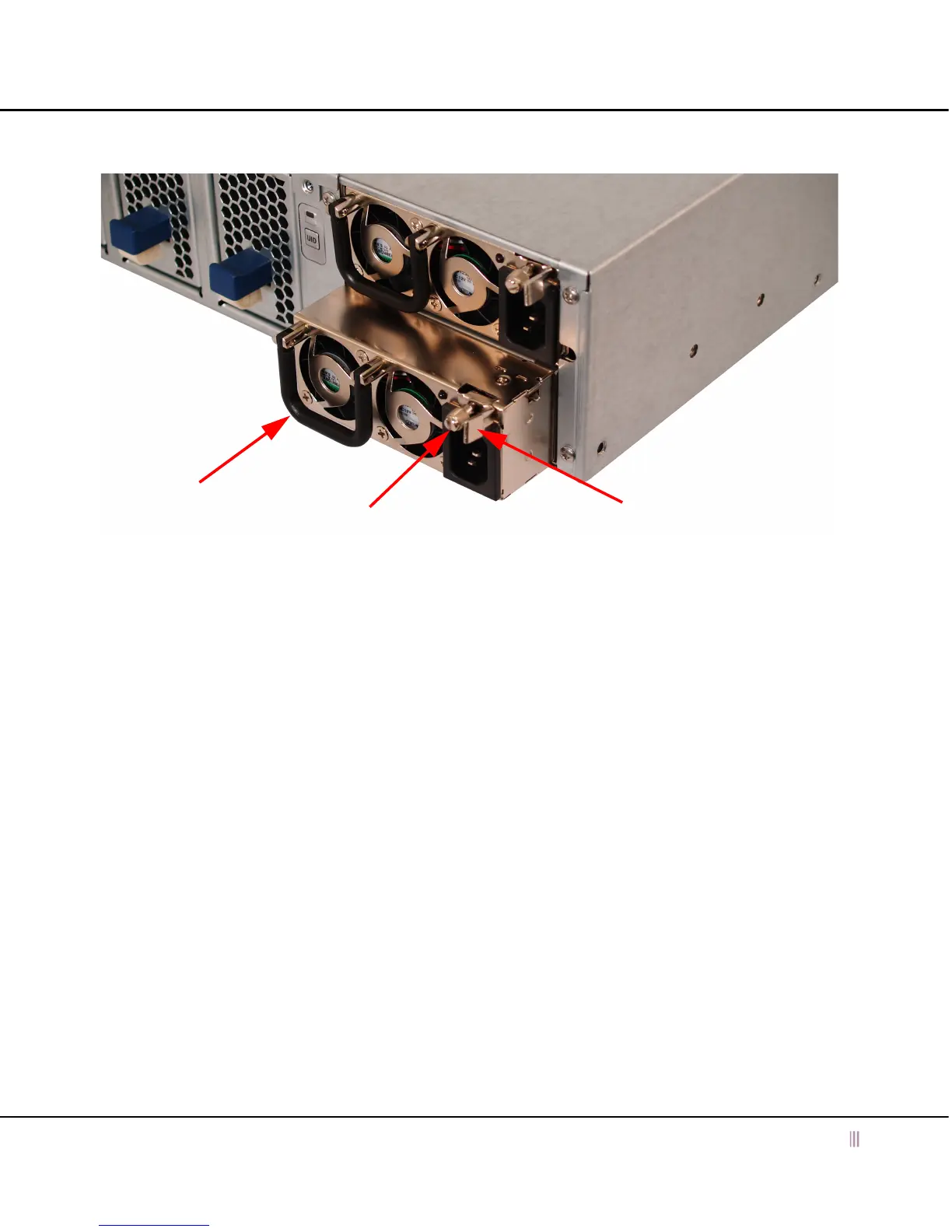

Figure 18 Removing an Infoblox 2200 Series AC Power Supply
Each power supply weighs about one pound (0.454 kg). The faceplate of each power supply contains a power LED
and a dedicated power outlet.
To replace an Infoblox 2200 Series AC power supply, do the following:
1. Disconnect the AC power cable from the power outlet.
2. Turn the thumbscrew counter-clockwise to release the power supply.
3. Gently press the catch-release lever toward the thumbscrew, grip the power supply handle, and pull the power
supply unit out of the chassis as illustrated in Figure 18.
4. Place the replacement power supply into the bay and push it forward until it is fully seated in the chassis. The
catch-release lever will gently click into place.
5. Reconnect the power cable.
6. If the power supply is fully seated, powered on, and operating properly, the LED glows steady green.
