Infoblox 2200 Series Hardware Components
For the Infoblox 2200 Series Platforms 9

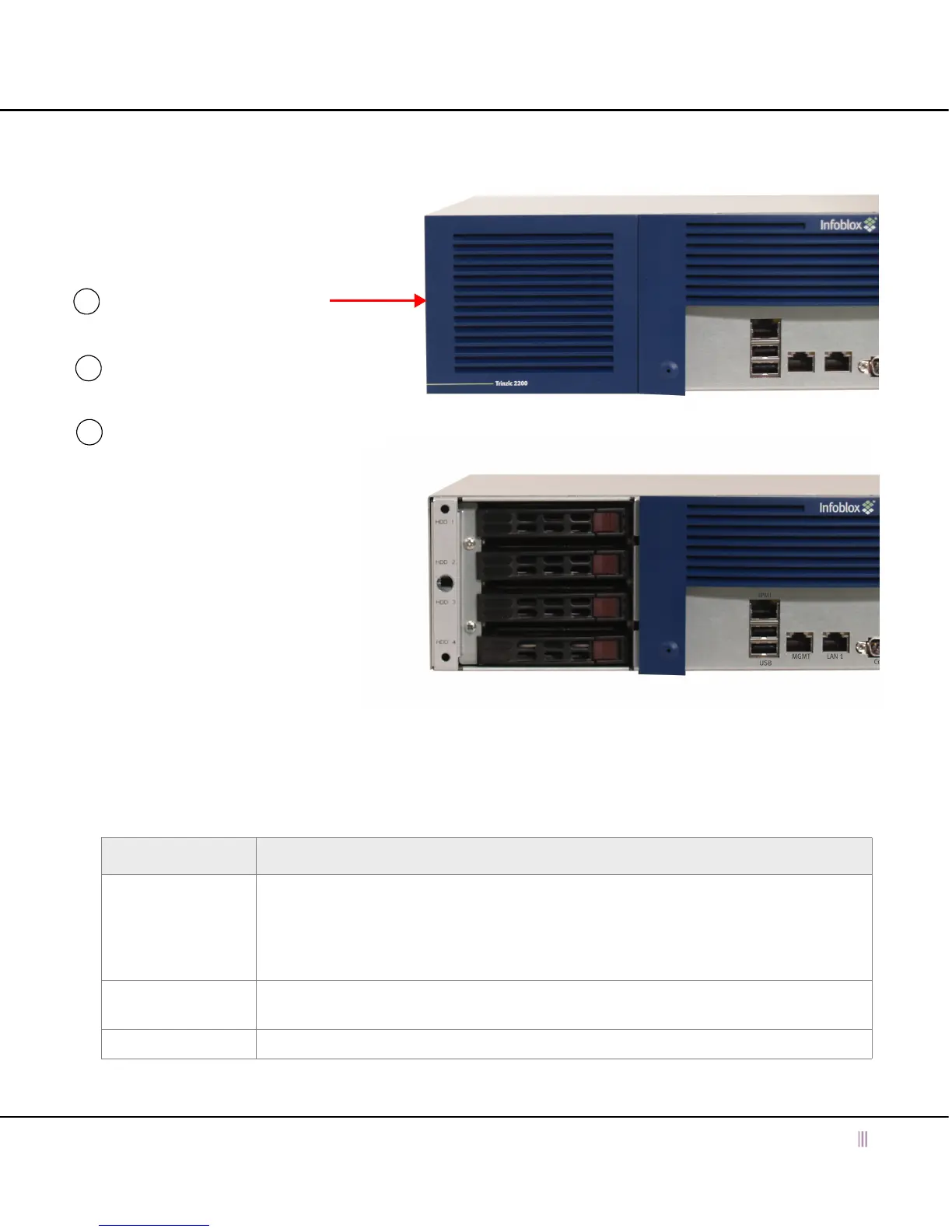

Figure 2 Removing the Infoblox 2200 Series Drive Bay Door
Table 1 describes the Infoblox 2200 Series front panel components.
Table 1 Front Panel Components
Component Description
Hard Disk Drives Four hot-swappable Infoblox data storage devices configured in a RAID 10 (Redundant Array of
Independent Disks) array. Each disk drive has two LEDs that indicate the connection and
activity status on the disk drive. The top LED glows green when the disk drive is connected and
operational, and the lower LED is green during read-write operations. The LEDs are dark when
the disk drive is not connected.
On/Off Switch A power switch to turn the power supply of the appliance on and off. The switch is hidden. Use
a small blunt object, such as a paper clip, to gently push the switch.
USB Ports Reserved for future use.
