Adjusting the Projector’s Zoom / Focus
You may turn the zoom ring to zoom in or out. To focus the im-
age, rotate the focus ring until the image is clear.
SVGA/XGA series: The projector will focus at distances from
3.94 to 39.36 feet (1.2 to 12.0 meters).
WXGA series: The projector will focus at distances from 3.28
to 32.8 feet (1 to 10 meters).

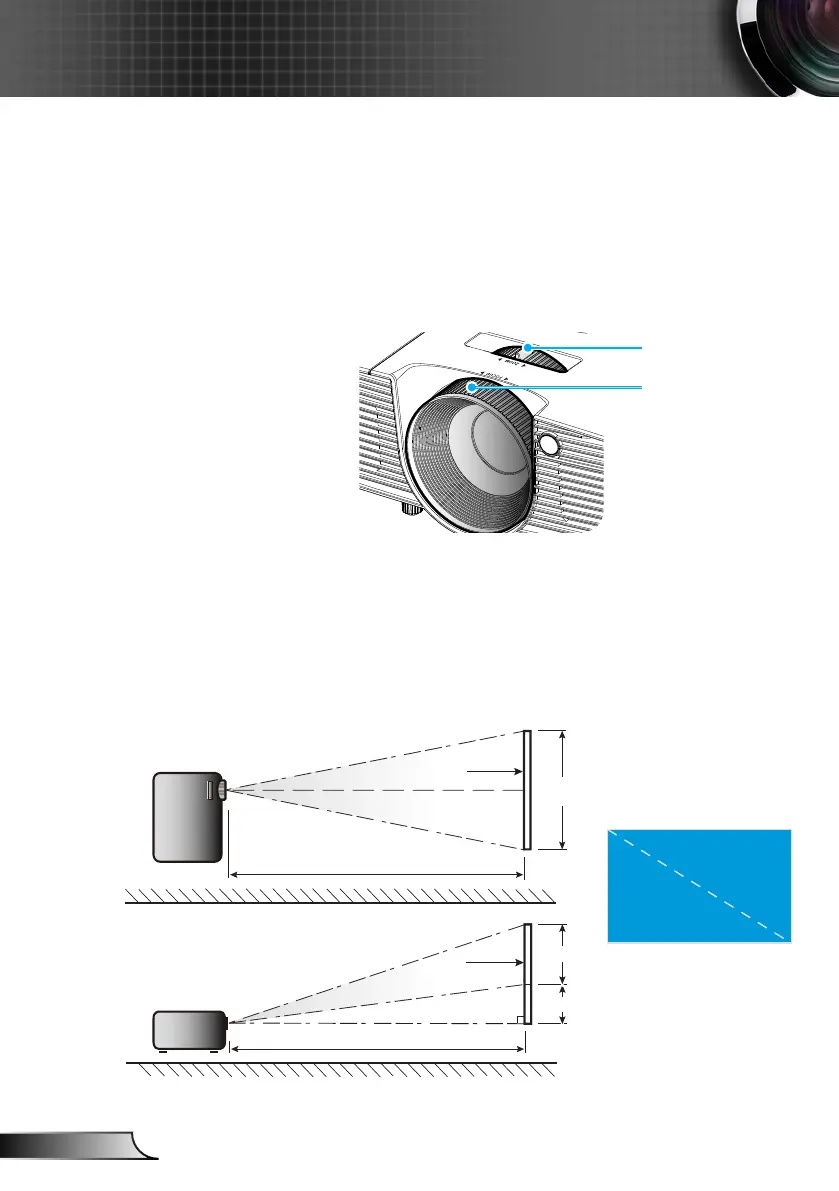

Adjusting Projection Image Size
SVGA/XGA series: Projection Image Size from 27.5” to
302.8” (0.7 to 7.69 meters).
WXGA series: Projection Image Size from 27.3” to 299.5”
(0.69 to 7.61 meters).
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
Focus Ring
Zoom Lever
To Next Page
