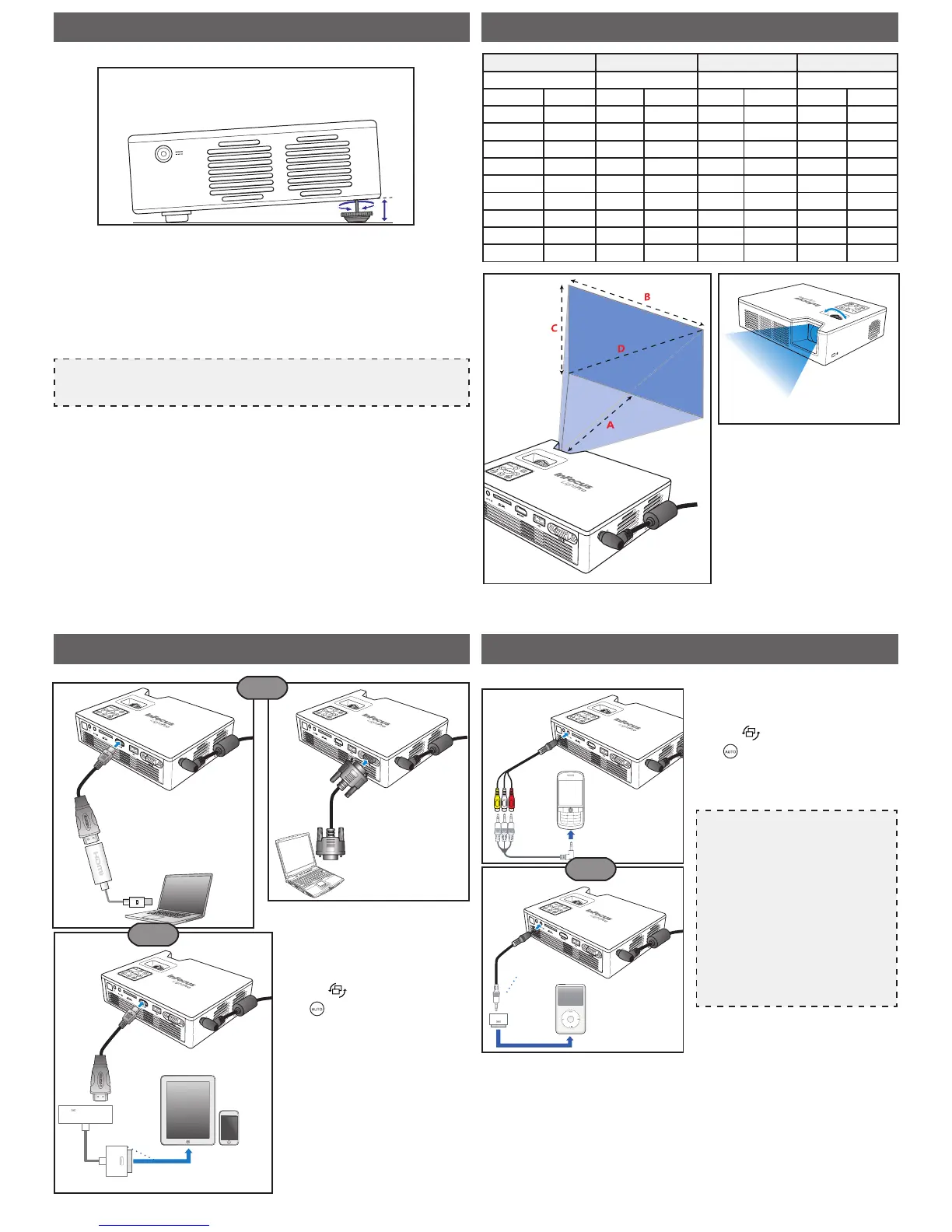

5
1. Connect the VGA / HDMI device
using an appropriate cable.
2. After powering on the projector,
press on the control panel
or on the remote control to
automatically switch the input
source.
adjuSt projected Image heIght adjuSt the projected Image
The projector is equipped with an elevator foot for adjusting the projected
image height.
To adjust the height:
Turn the elevator foot to adjust the projected image position to the desired
height.
ENTER
Adjust the focus until the image is
clear.
1. Connect the AV input source.
2. After powering on the projector,
press on the control panel
or on the remote control to
automatically switch the input
source.
Note
1. All other brand and product names are
trademarks or registered trademarks of their
respective companies.
2. The cables connecting the video output
devices are not supplied, please contact the
device vendor.
3. iPod nano/iPod touch/iPhone/iPod classic
(version 5 and above)
4. Designed for iPod/iPhone/Mobile phone/
PMP with TV out functions. Using with
devices with audio signal voltage > 0.3Vrms
is not recommended.
5. Composite mode only supports video input
source.
or
For video and
audio input
HDMI
Apple Digital AV
Adapter
IPad
IPhone 4
Note
If Auto Keystone is enabled and there are no changes within 2-3 seconds, the projector will
automatically adjust the image display via the Auto Keystone function.
Screen Size - Diagonal Projection Distance Screen Size - Width Screen Size - Height
(D) (A) (B) (C)
(inch) (mm) (inch) (meter) (inch) (mm) (inch) (mm)
20 508 23.62 0.60 16.97 431 10.59 269
40 1016 47.64 1.21 33.94 862 21.18 538
60 1524 71.26 1.81 50.87 1292 31.81 808
80 2032 94.88 2.41 67.83 1723 42.40 1077
100 2540 118.90 3.02 84.80 2154 52.99 1346
120 3048 142.52 3.62 101.77 2585 63.58 1615
140 3556 166.14 4.22 118.70 3015 74.21 1885
160 4064 189.76 4.82 135.67 3446 84.80 2154
180 4572 213.78 5.43 152.64 3877 95.39 2423
