19
Chapter 3 – Inputs-Outputs
XtrapulsPac Installation Guide

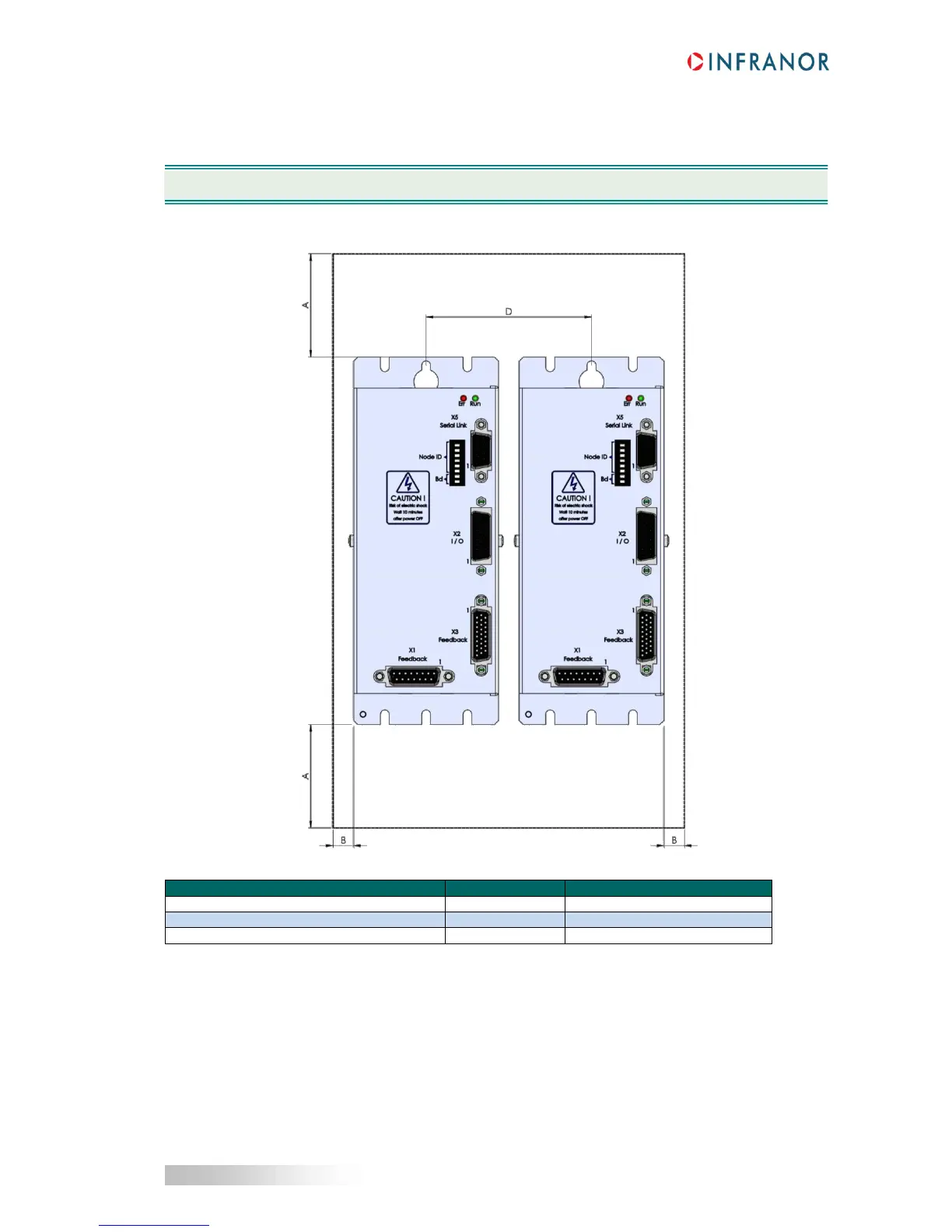

2.2.2 - XtrapulsPac 230 V: Panel layout dimensions
Dimensions are given in mm
Description
Symbol
XtrapulsPac
Minimum top and bottom clearance
A
50
Minimum side clearance
B
10
Recommended pitch
D
80
VERTICAL MOUNTING IS MANDATORY
