2.2 - DIMENSIONS AND CONNECTOR LOCATION

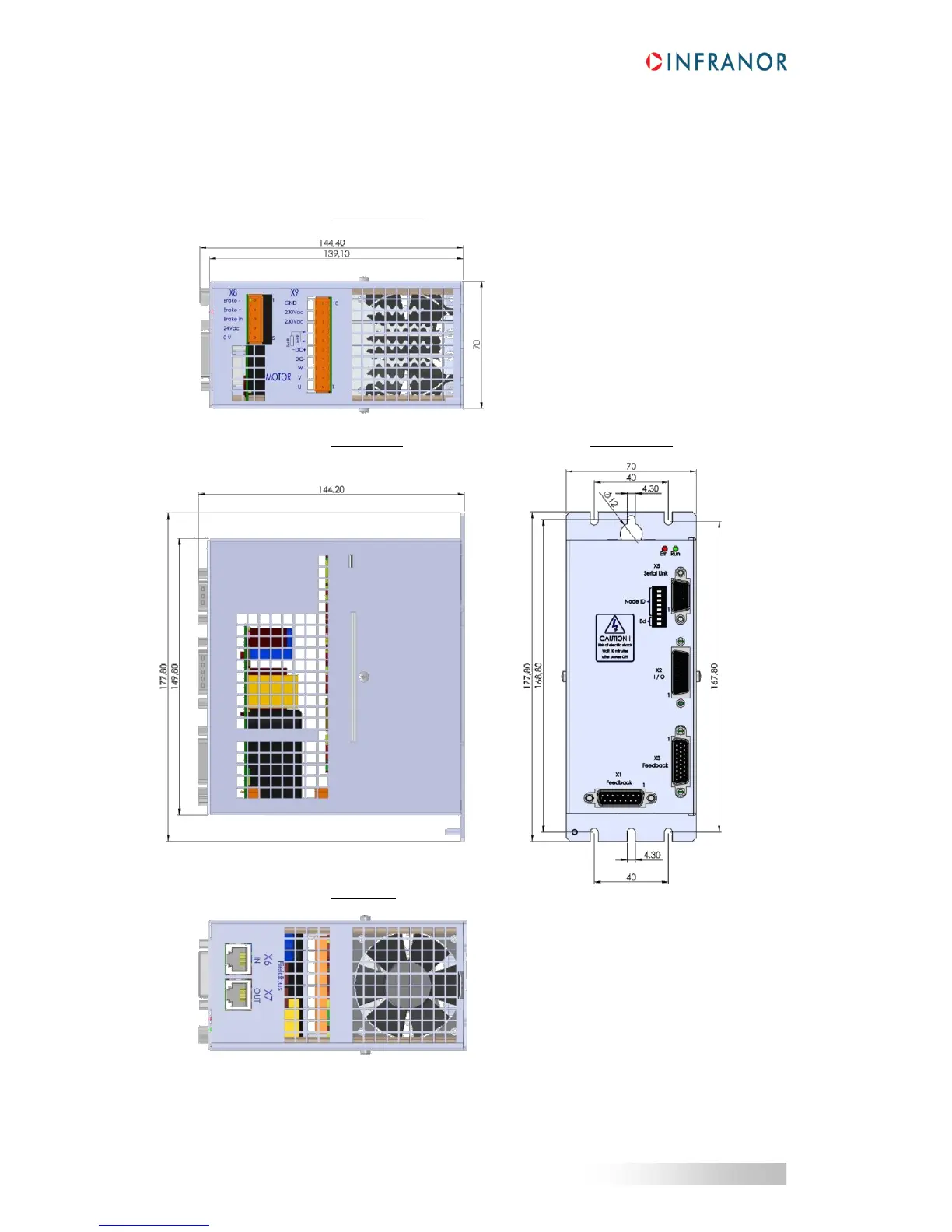

2.2.1 - XtrapulsPac 230 V dimensions
Dimensions are given in mm.
BOTTOM VIEW
SIDE VIEW FRONT VIEW
TOP VIEW
