Chapter 4 - Connections
XtrapulsPac Installation Guide

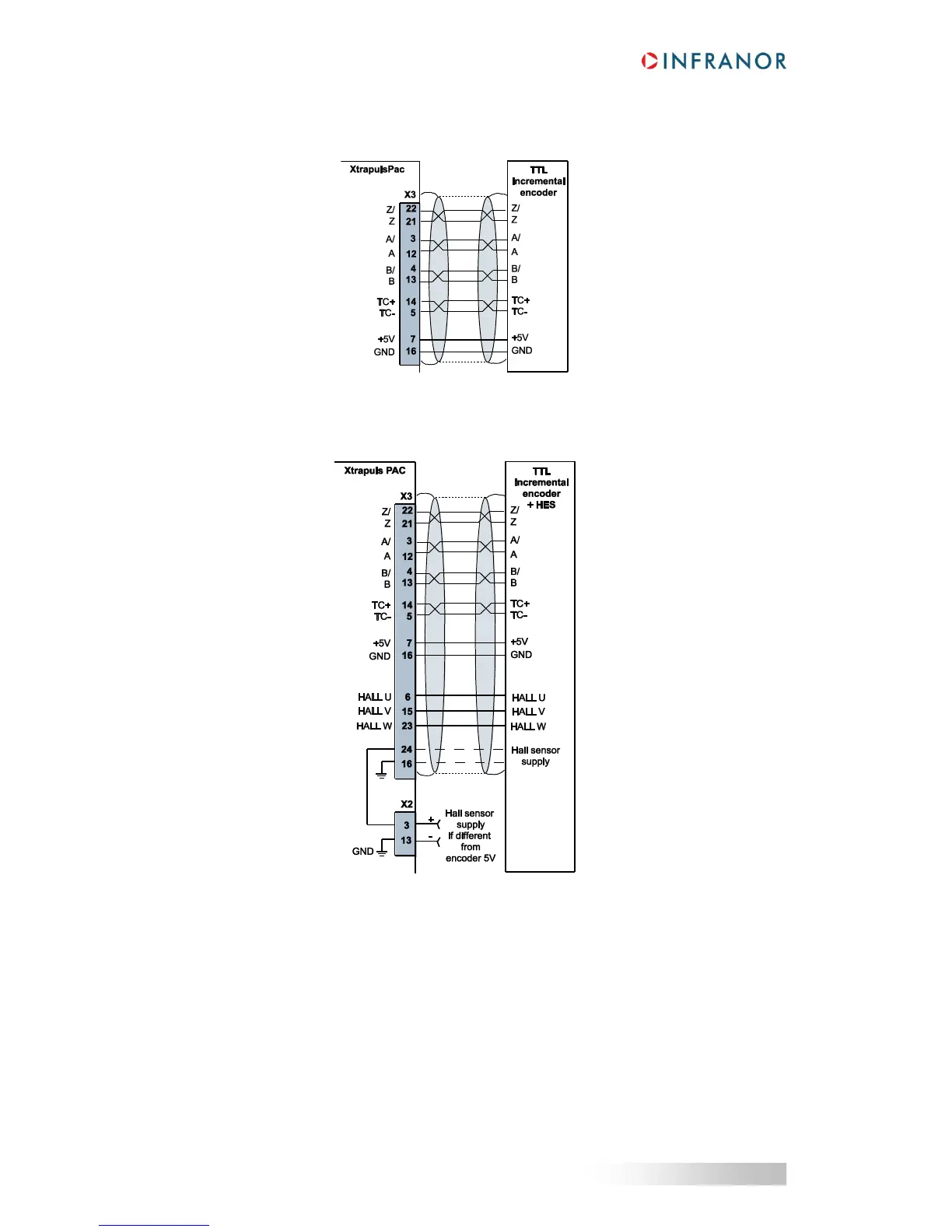

4.3.2 - Connection to an incremental TTL encoder: X3 - 26 pin female HD
connector
4.3.3 - Connection to an incremental TTL encoder with Hall sensor: X3 - 26 pin
female HD connector
