Chapter 3 – Inputs-Outputs
XtrapulsPac Installation Guide

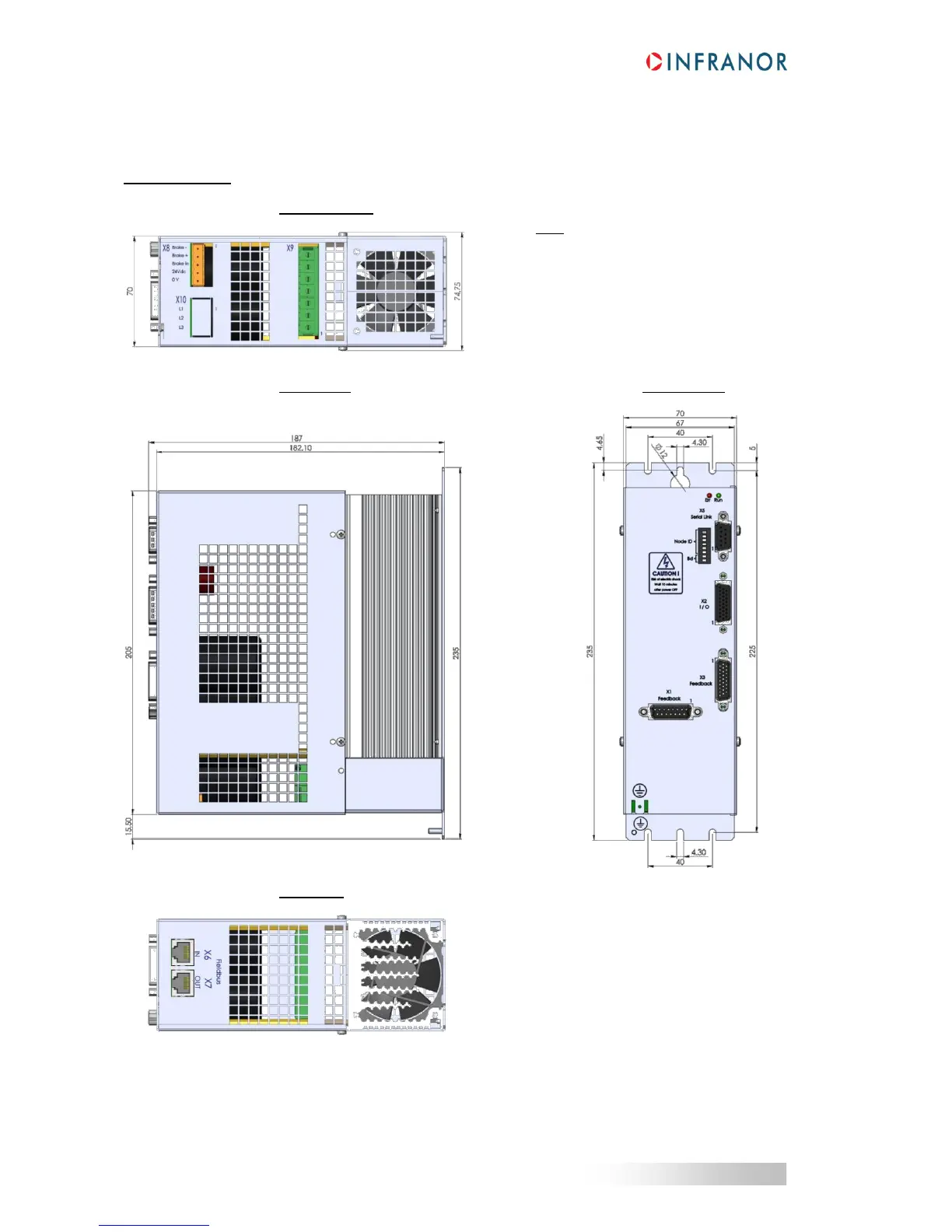

2.2.3 - XtrapulsPac 400 V / 08 to 45 A dimensions
Dimensions are given in mm.
Standard version
BOTTOM VIEW
SIDE VIEW FRONT VIEW
TOP VIEW
Note:
This bottom view is the one of the 400/45 drive
(without X10 connector).
The X10 connector is only available
on drives with 8 A and 20 A current ratings.
