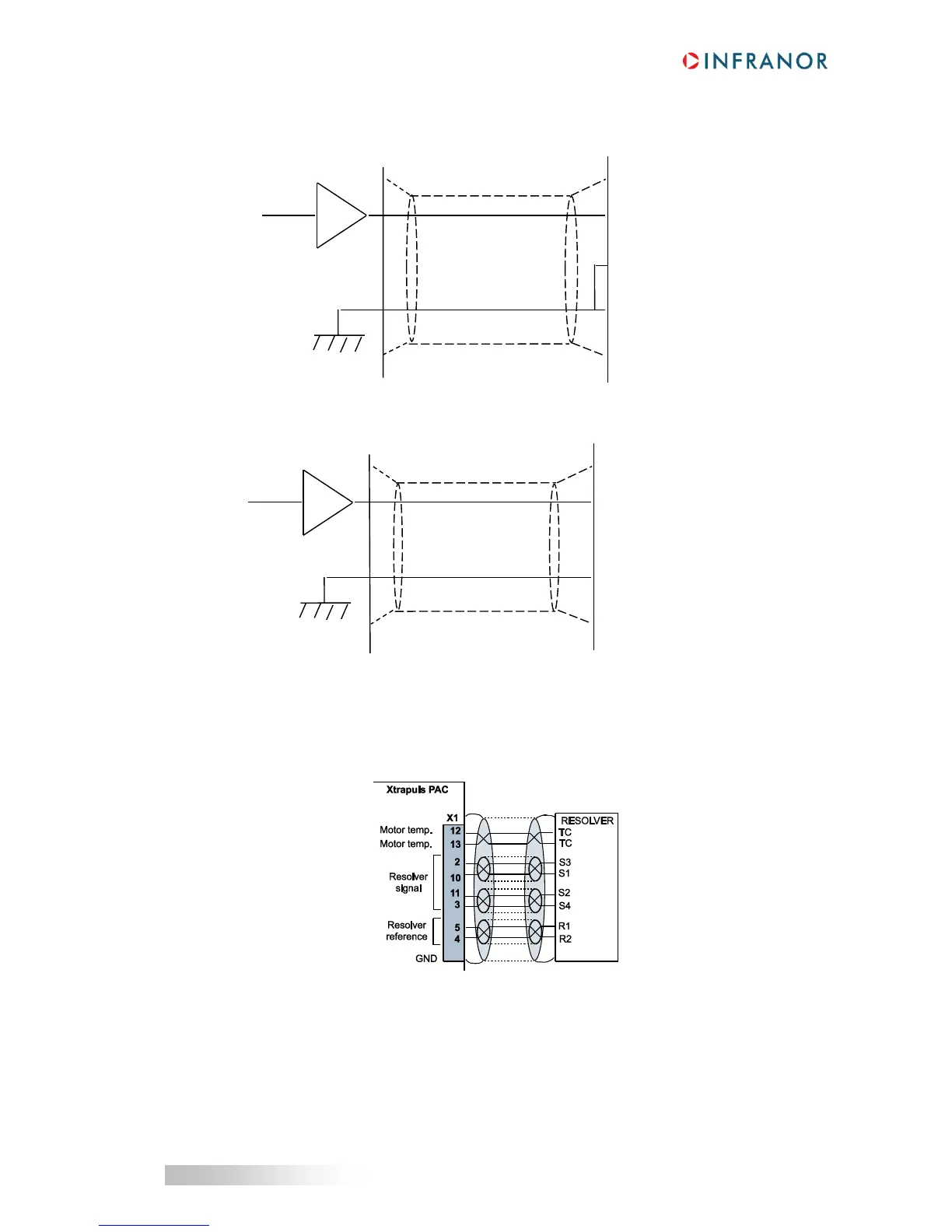

4.2.2 - ANA1 input connection with a non-differential analog signal source
4.2.3 - ANA2 input connection
4.3 - CONNECTION TO VARIOUS SENSOR TYPES
4.3.1 - Connection to a resolver: X1 - Sub D 15 pin female connector
AN+
GND
Pin 1
Pin 10
Pin 2
Pac X2 connector
AN+
GND
Pin 11
Pin 2
Pac X2 connector
