52
Chapter 4 - Connections
XtrapulsPac Installation Guide
4.1.4 - UL standard requirements
The UL listing requires the following conditions.
4.1.4.1 - 24 V supply
The final user has to provide an isolated auxiliary 24 V
DC
+/-15 % supply (e.g. with isolation transformer) for the
auxiliary supply input, and protected by a 3 A UL certified fuse.
4.1.4.2 - Power supply and UL fuse ratings
The recommended fuse model is a "semiconductor protection" type. The maximum mains short-circuit power
must not exceed 5000 Arms, when protected by a UL fuse type A60Q.
On XtrapulsPac drives, the fuse rating must be the following:
XtrapulsPac-ak
Rated input current
FERRAZ
Type A60Q
230 V / 05 A
4.3 A
A60Q5-2
230 V / 11 A
9.5 A
A60Q10-2
230 V / 17 A
14.7 A
A60Q15-2
400 V / 08 A
3.8 A
A60Q5-2
400 V / 20 A
9.4 A
A60Q10-2
400 V / 45 A
See XtrapulsGDPS manual
See XtrapulsGDPS manual
400 V / 100 A
See XtrapulsGDPS manual
See XtrapulsGDPS manual
400 V / 200 A
See XtrapulsGDPS manual
See XtrapulsGDPS manual

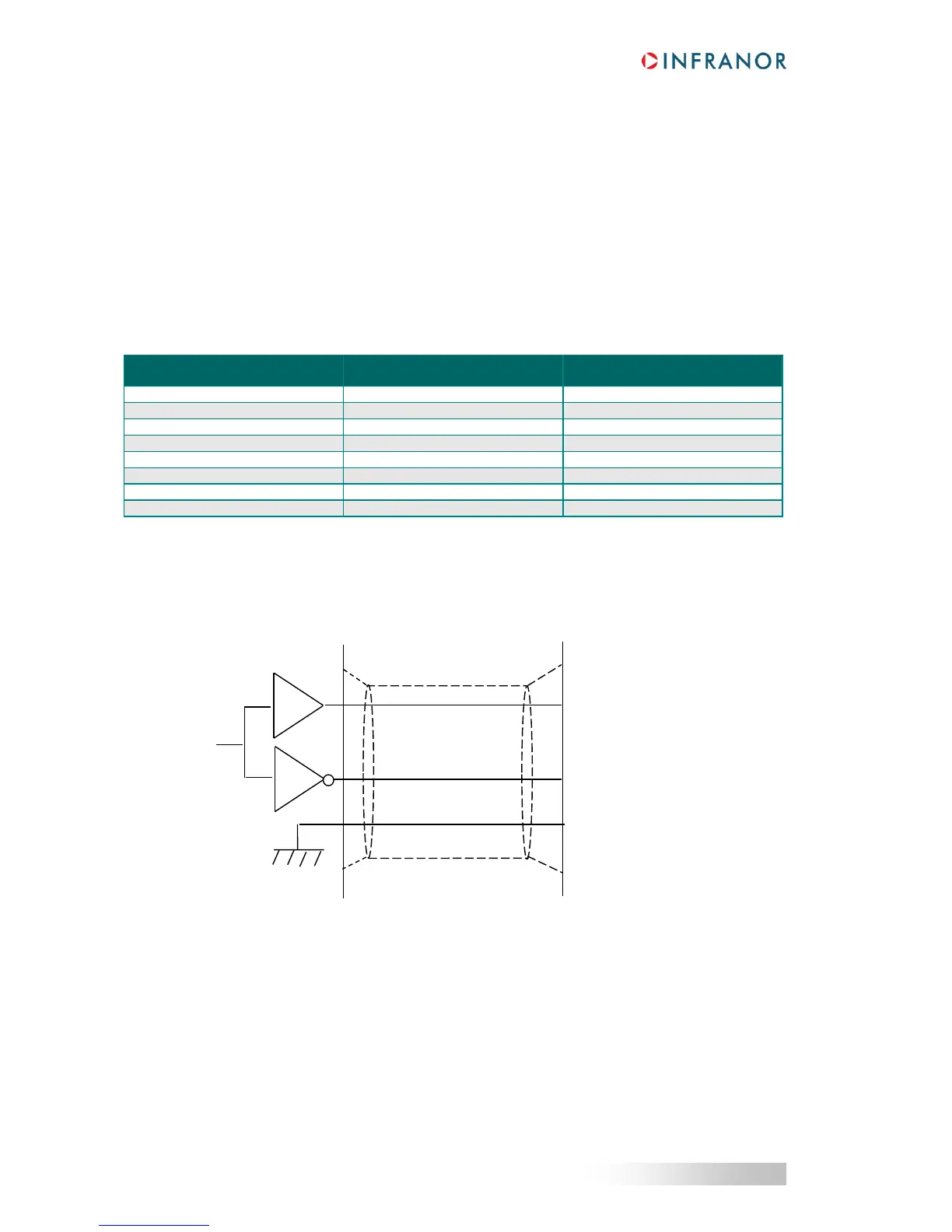

4.2 - ANALOG INPUTS CONNECTION
4.2.1 - ANA1 input connection with a differential analog signal source
AN+
AN-
GND
Pin 1
Pin 10
Pin 2
Pac X2 connector
