55
Chapter 4 - Connections
XtrapulsPac Installation Guide

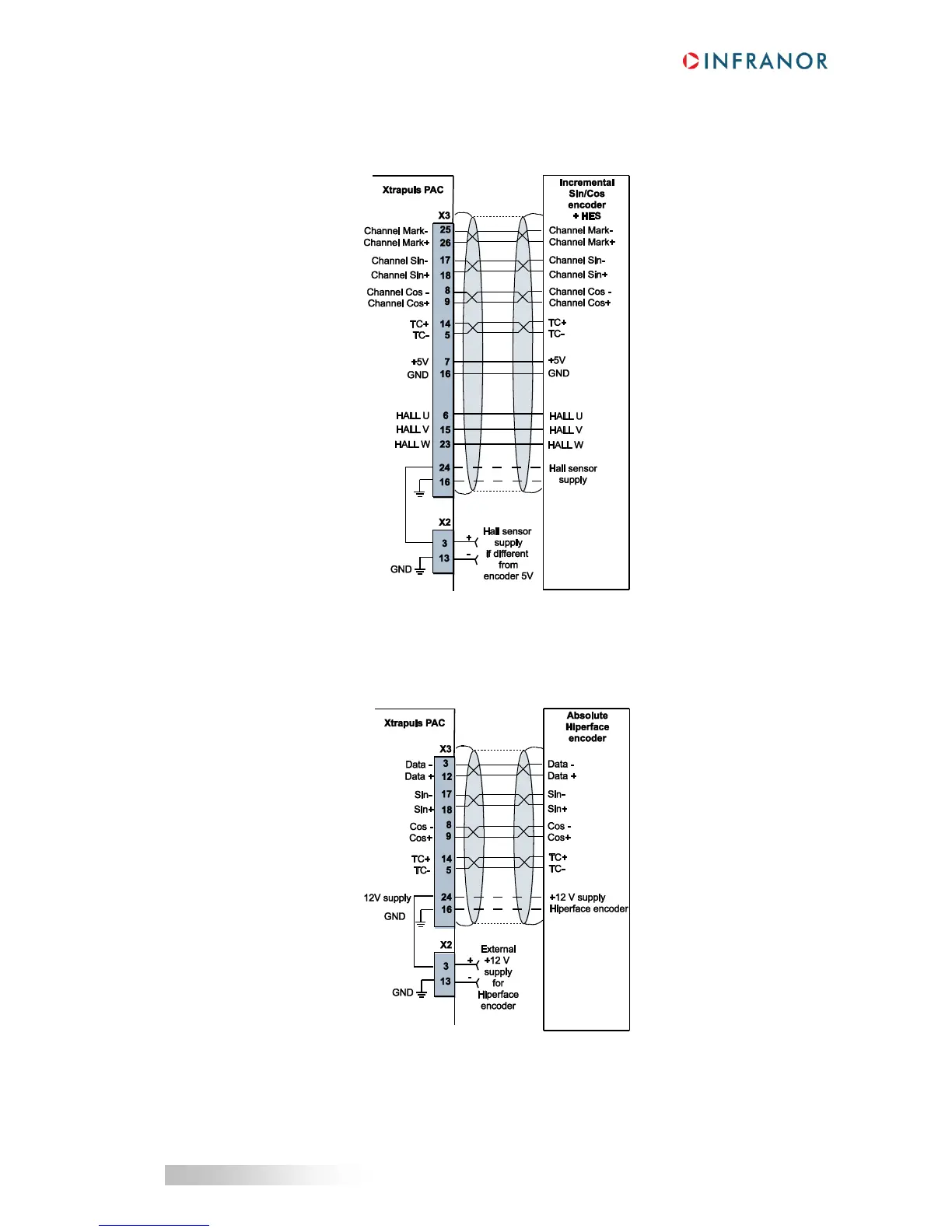

4.3.4 - Connection to an incremental Sin/Cos encoder with Hall sensor: X3 - 26
pin female HD connector
4.3.5 - Connection to an absolute Hiperface® encoder: X3 - 26 pin female HD
connector
