Chapter 4 - Connections
XtrapulsPac Installation Guide
Chapter 4 – Connections

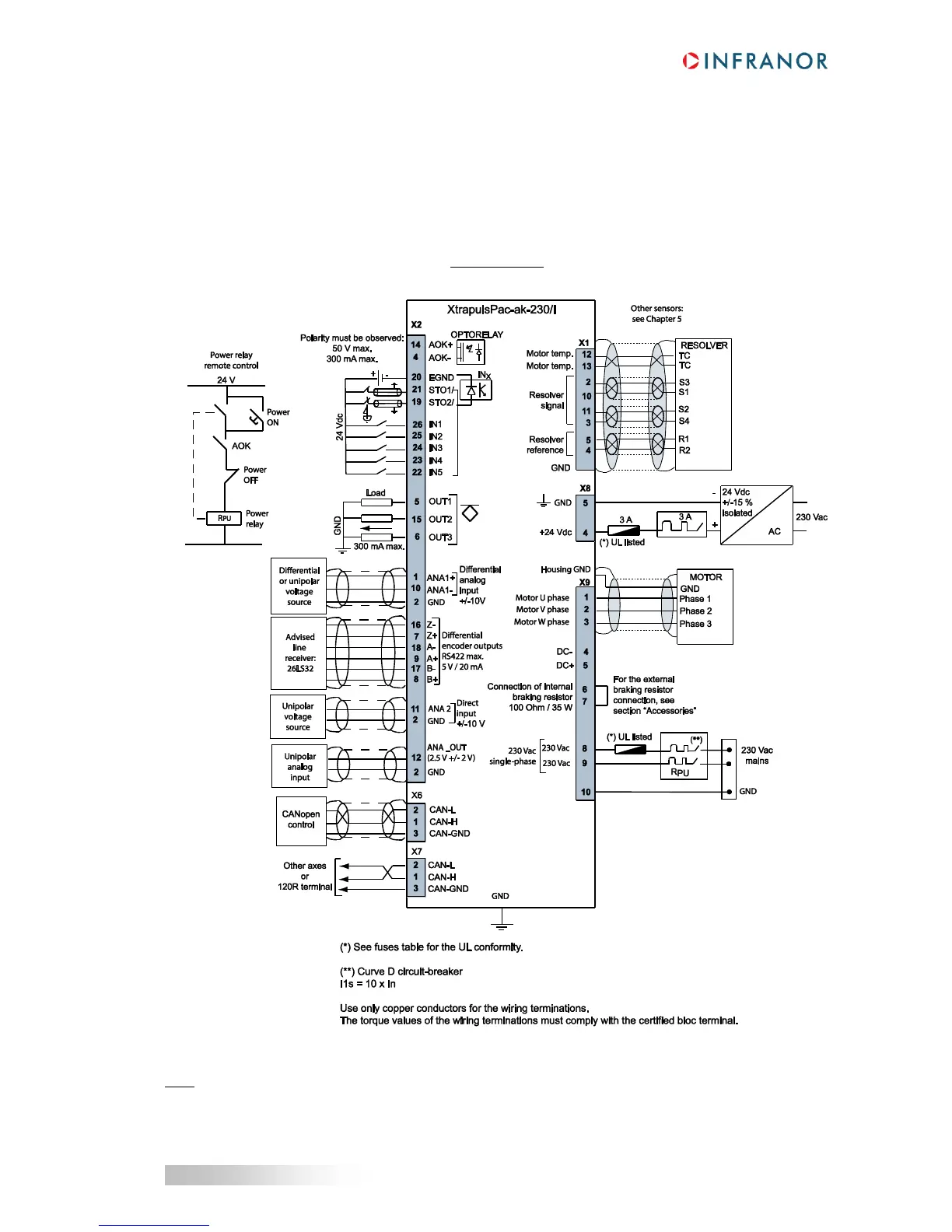

4.1 - EXAMPLES OF CONNECTION DIAGRAMS
4.1.1 - XtrapulsPac 230 V
Pac-ak version
Note: The 24 V and power supply protection on source side must be made by the user.
