Chapter 3 – Inputs-Outputs
XtrapulsPac Installation Guide

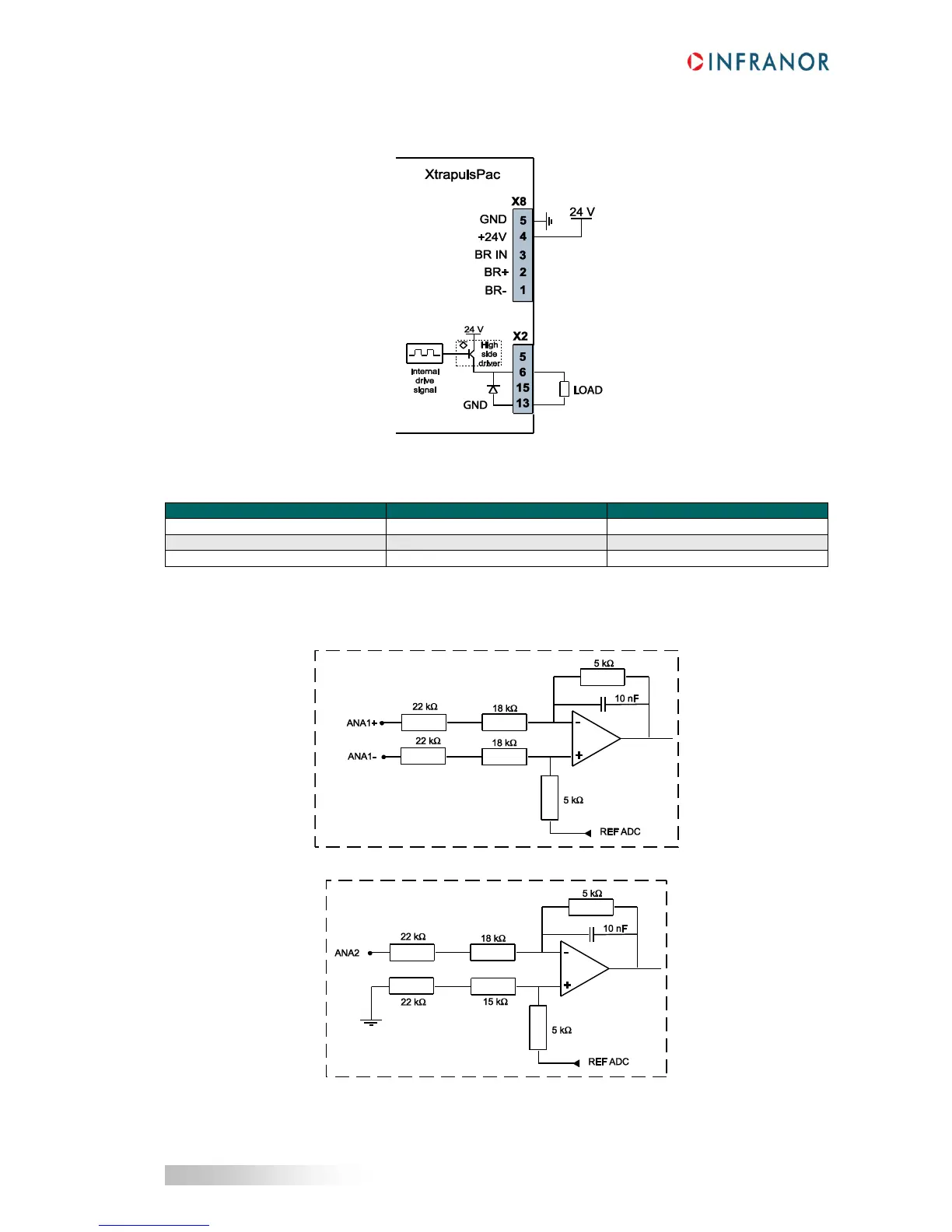

3.4.3 - Specification of the logic outputs OUT1 to OUT3
Digital outputs can be paralleled in order to increase the maximum output current.
Be careful to connect all paralleled outputs to the same drive signal.
Paralleled outputs
Output voltage
Maximum output current
1
24 V
300 mA
2
24 V
400 mA
3
24 V
600 mA
3.4.4 - Specification of the analog inputs ANA1+/- and ANA2
X2-10
X2-1
X2-2
X2-11
