Infranor XtrapulsPac Installation Guide

39
Chapter 3 – Inputs-Outputs
XtrapulsPac Installation Guide

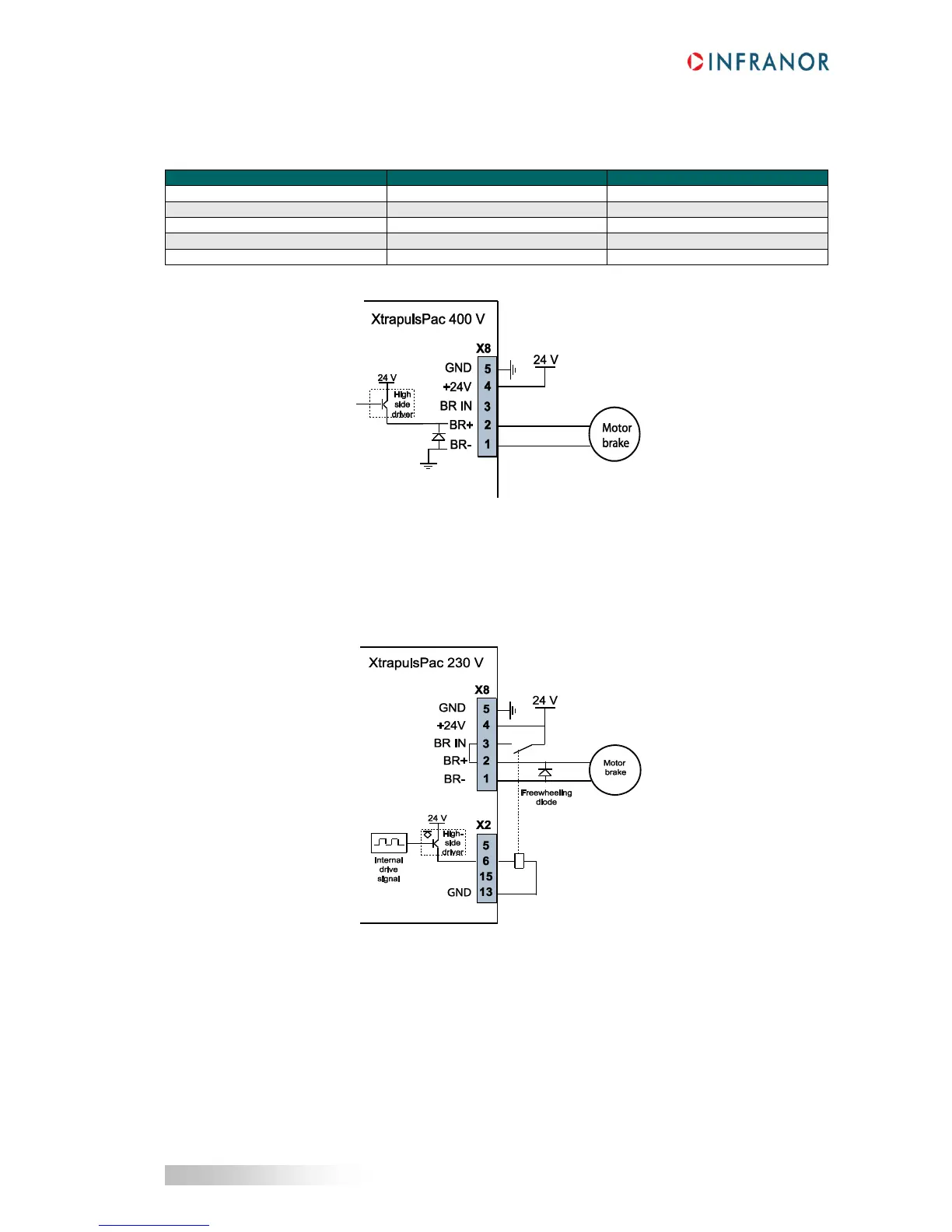

3.8.1 - Motor brake output on XtrapulsPac 400 V drives
A high side driver output is provided to directly drive the motor brake.
Model
Rated output voltage
Maximum output current
XtrapulsPac-400/08
24 V
1.5 A
XtrapulsPac-400/20
24 V
1.5 A
XtrapulsPac-400/45
24 V
2.5 A
XtrapulsPac-400/100
24 V
2.5 A
XtrapulsPac-400/200
24 V
2.5 A
3.8.2 - Motor brake output on XtrapulsPac 230 V drives
A logic output must be software configured as motor brake output.
BR IN and BR + are internally connected together for convenience when wiring the external relay.
If the brake consumption is higher than the digital output specification, an external relay must be used to control
the motor brake.
