Both Hiperface DSL® communication wires MUST be twisted and must have their own uninterrupted shield
connected to the drive X1 connector.
In the motor connector, the Hiperface DSL® communication wires without shield must be as short as possible and
as far as possible from the motor phases.
In the cable, the motor phases must be located symmetrically to the Hiperface DSL® communication wires.

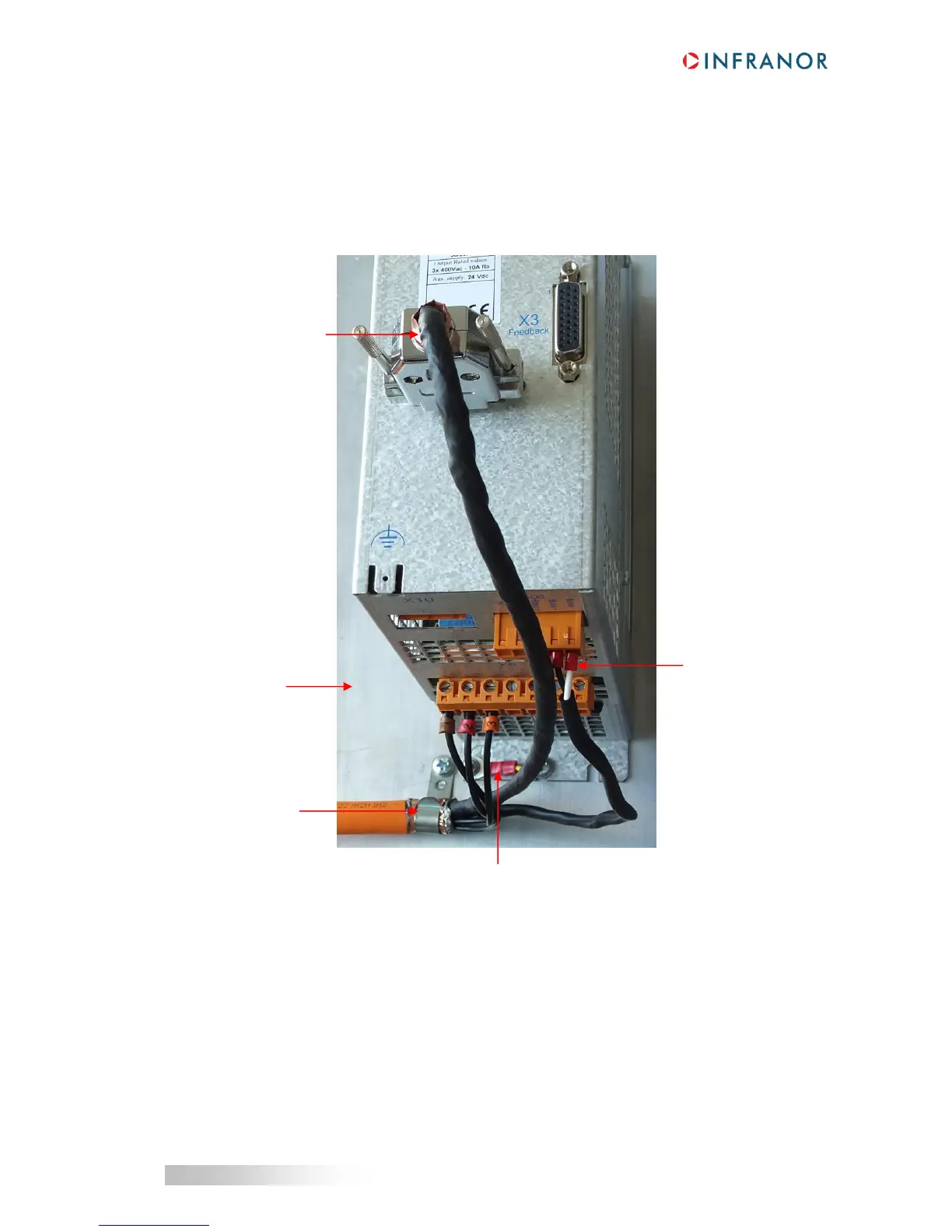

Hybrid cable connexion example:
360° shield connection with
metallic collar inside the
connector.
Motor brake wire connection
360° shield
connection with
metallic collar.
Conducting
panel
PE connection
