7_4_3 iSC480 SAM and Micro SD Card Slots
The iSC480 features two Secure Access Module (SAM) slots to hold full size SAM cards. These cards store proprietary information
for use with smart cardbased applications. Refer to the below image for the location of the SAM access door.
7_4_4 iSC480 Peripheral Connectors and Host Interface Ports
The iSC480 PIN pad device may interface with the Host system via the following interface options:
RS-232
Tailgate (RS-485)
USB
Ethernet

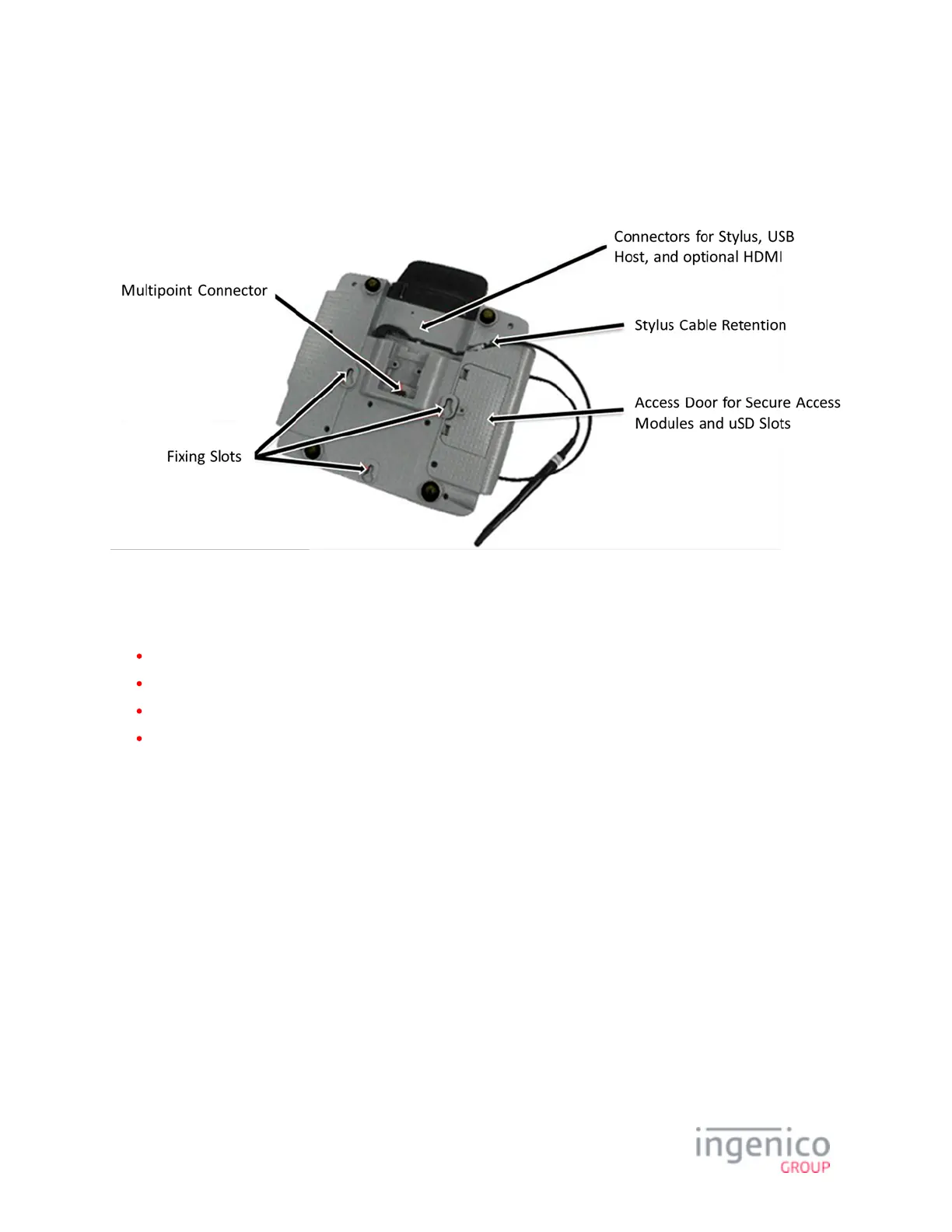

All interface options are via the Multipoint connector. Refer to the below image which shows the location of the USB port and
Multipoint connector. Also shown are the stylus connection and video port.
