Before you disconnect the terminal from the POS, you must first disconnect power in order to prevent damage to the
terminal.
7_2_3 iSC250 SAM and Micro SD Card Slots

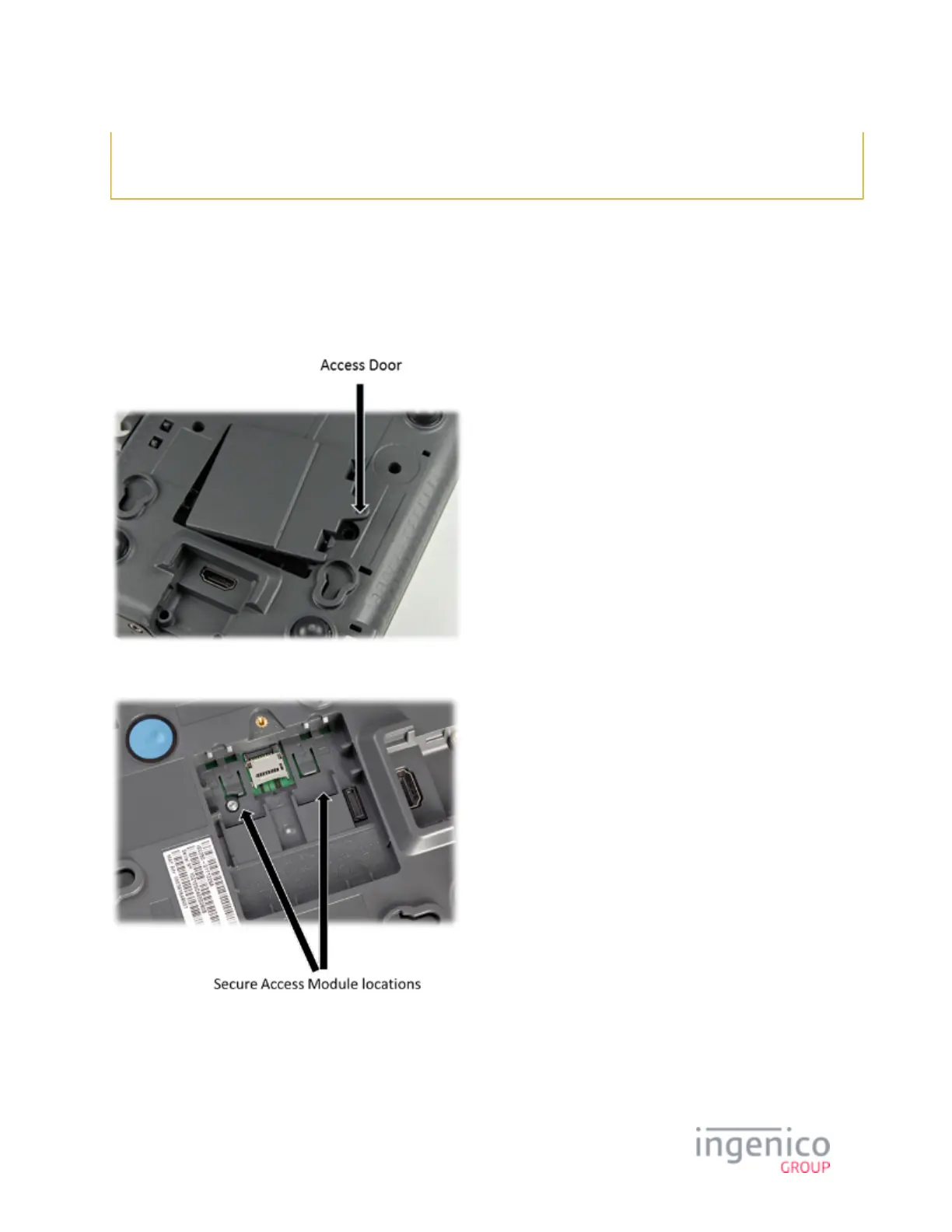

There are two Secure Access Module (SAM) slots and two Micro SD slots which are accessible via an access door which is located
on the bottom of the terminal. The access door may be opened by removing the screw which secures it as illustrated in the below
image.
With the access door removed, there are two slots where Secure Access Modules may be installed as shown in the below image.
The SAM cards, when installed, store proprietary information for use with smart card-based applications. The Micro SD cards
provide additional memory.
