7_2_6 iSC250 Multipoint Connector
The Multipoint connector located on the bottom of the terminal may be attached with screws for additional security. This connector is
used to connect RS-232, Tailgate (RS-485), USB, Ethernet, Magic box or Universal cables. It is important that you are using the
correct cable for the required interface. Special care must be taken when connecting or disconnecting the cable which attaches to the

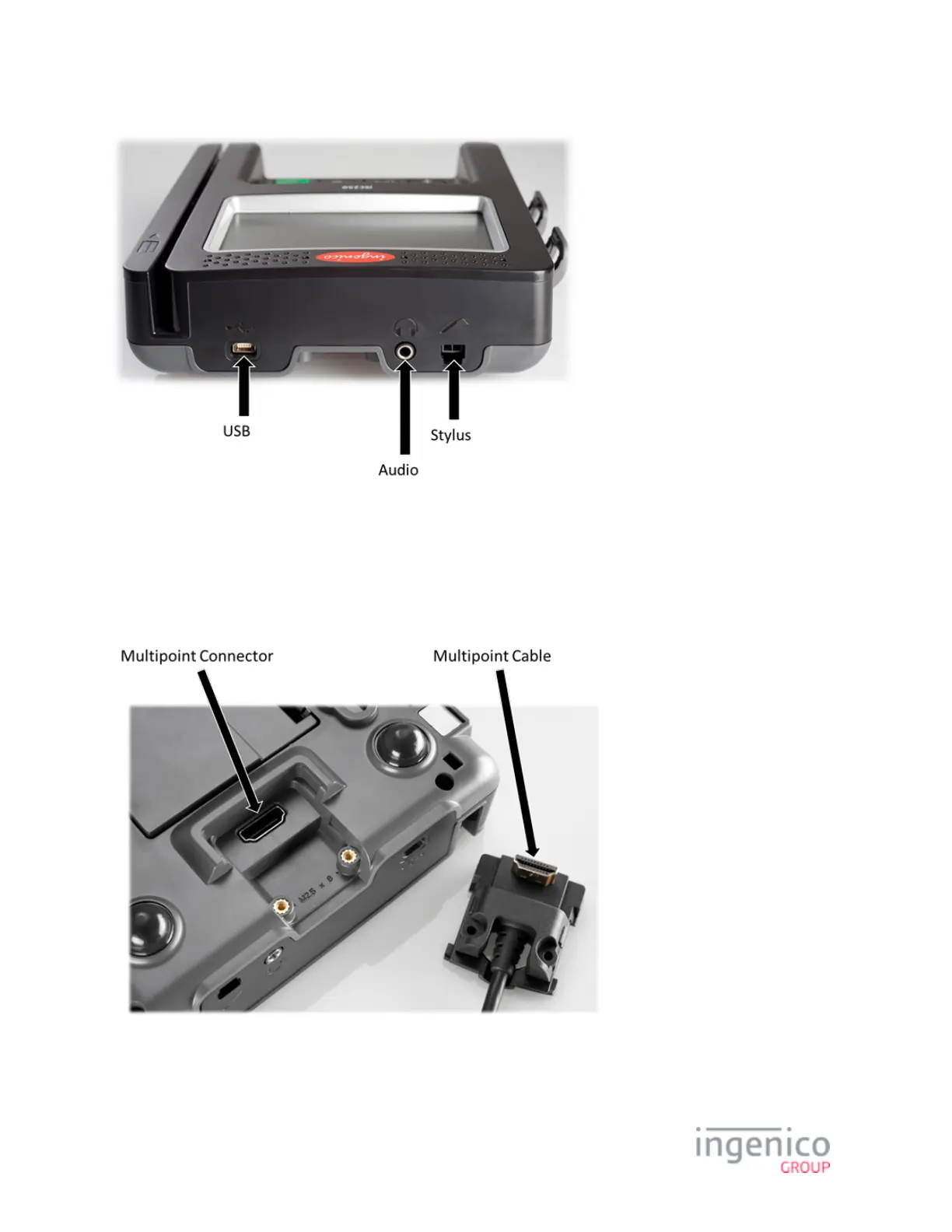

Multipoint. Refer to the below image which shows the Multipoint connector and cable.
To disconnect the cable from the Multipoint connector:
Disconnect power from the iSC250 to prevent damage to the device.
