2.1.3 iUC150 Power supply
Ingenico power supply can be ordered under reference 192017549 (only for 0 to
40°C use)
Input: Main voltage supply ranging from 100V to 240V
Maximum current of 3A
Working frequency range between 47Hz and 63Hz
Output: Regulated DC voltage 12V

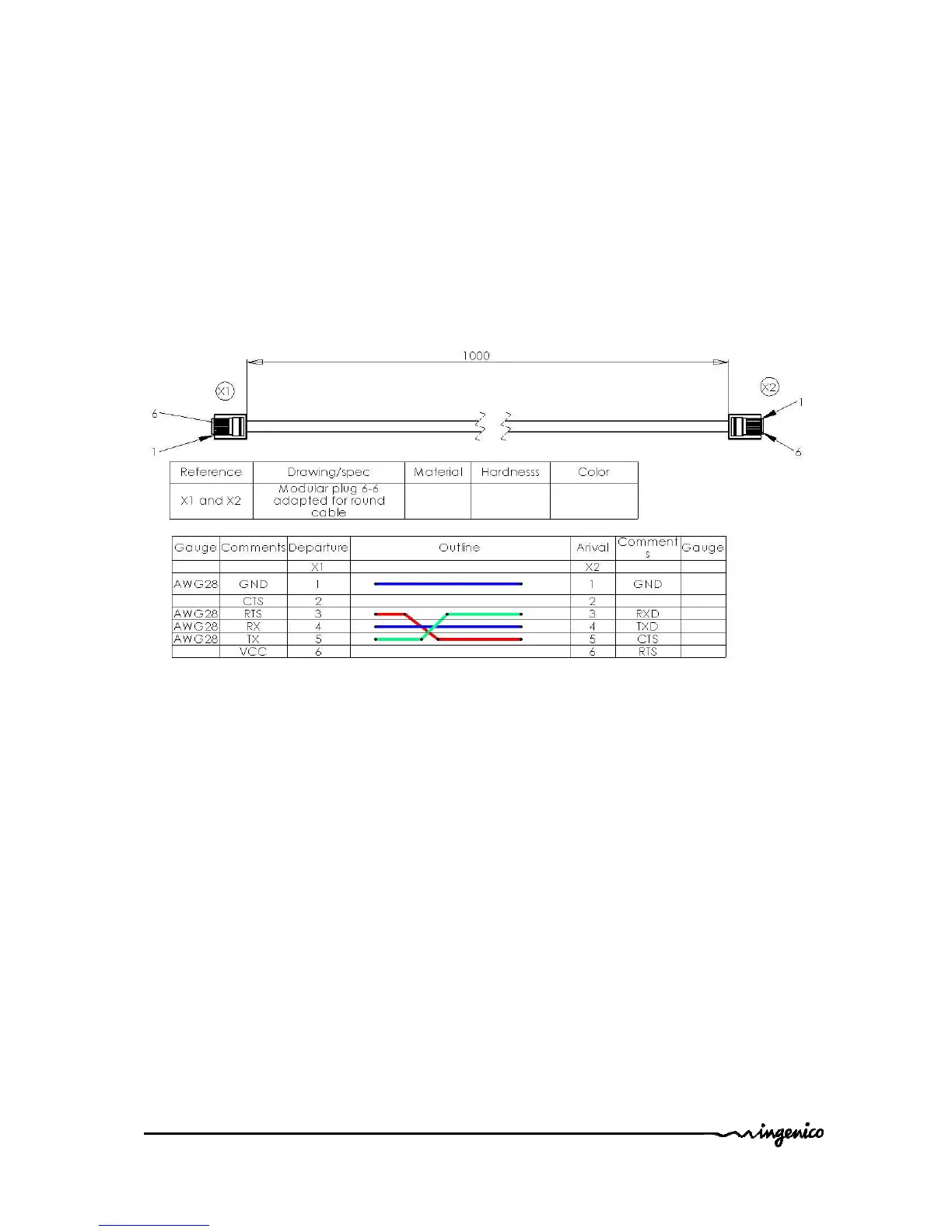

2.1.4 Serial cable
