Prime060L, Prime120L, Prime240L, Prime500L

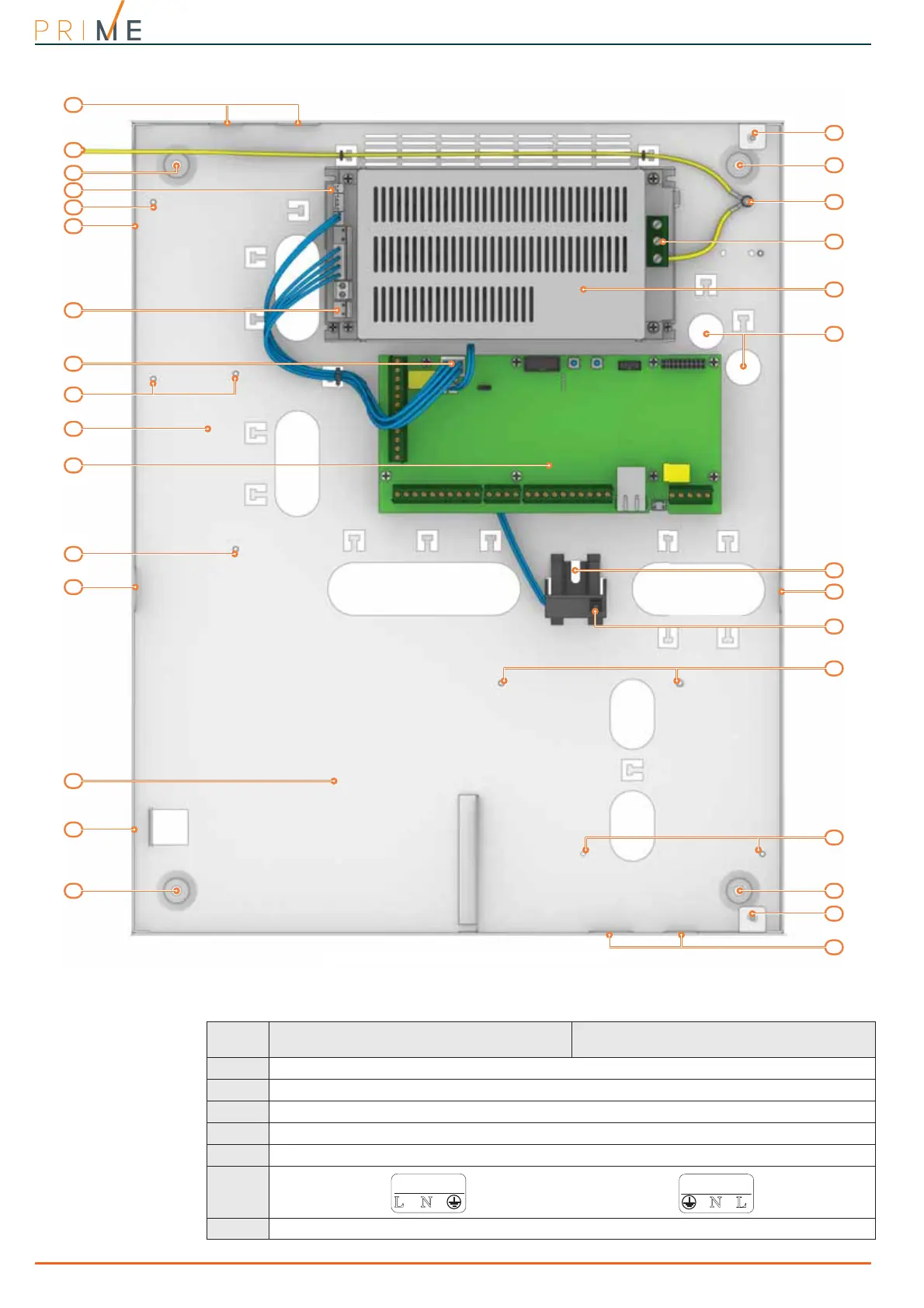

Table 2-5: Control panels - description of parts
Models
Prime
Prime060S Prime060L, Prime120L, Prime240L, Prime500L
A Back plate of the metal enclosure
B Mother board
C Switching power supply
D Thermal probe connector
E Battery connector
F
Mains input terminal board
G Mains cable entry
N
L
230V ~ 50/60 Hz
AC I
nput
N
L
230V ~ 50/60 Hz
AC I
nput
