Installation manual
Control panel and peripherals 13
H
Earth connection screw
I
Earth wire for front plate
J
Wires between switching-power supply and control panel
K
Mounting holes for the metal enclosure
L
Compartment for backup battery
M
Mounting holes for expansion board or Nexus
N
Lateral cable entries (on the sides of the enclosure)
O
Anti-tamper device
P
Mounting hole for anti-tamper device
Q
Slots for the front plate of metal enclosure
R
Mounting holes for the front plate of metal enclosure
Table 2-5: Control panels - description of parts
Models
Prime
Prime060S Prime060L, Prime120L, Prime240L, Prime500L
F
C
K
E
O
N
M
F
D
L
A
J
G
O
H
I
B
CO

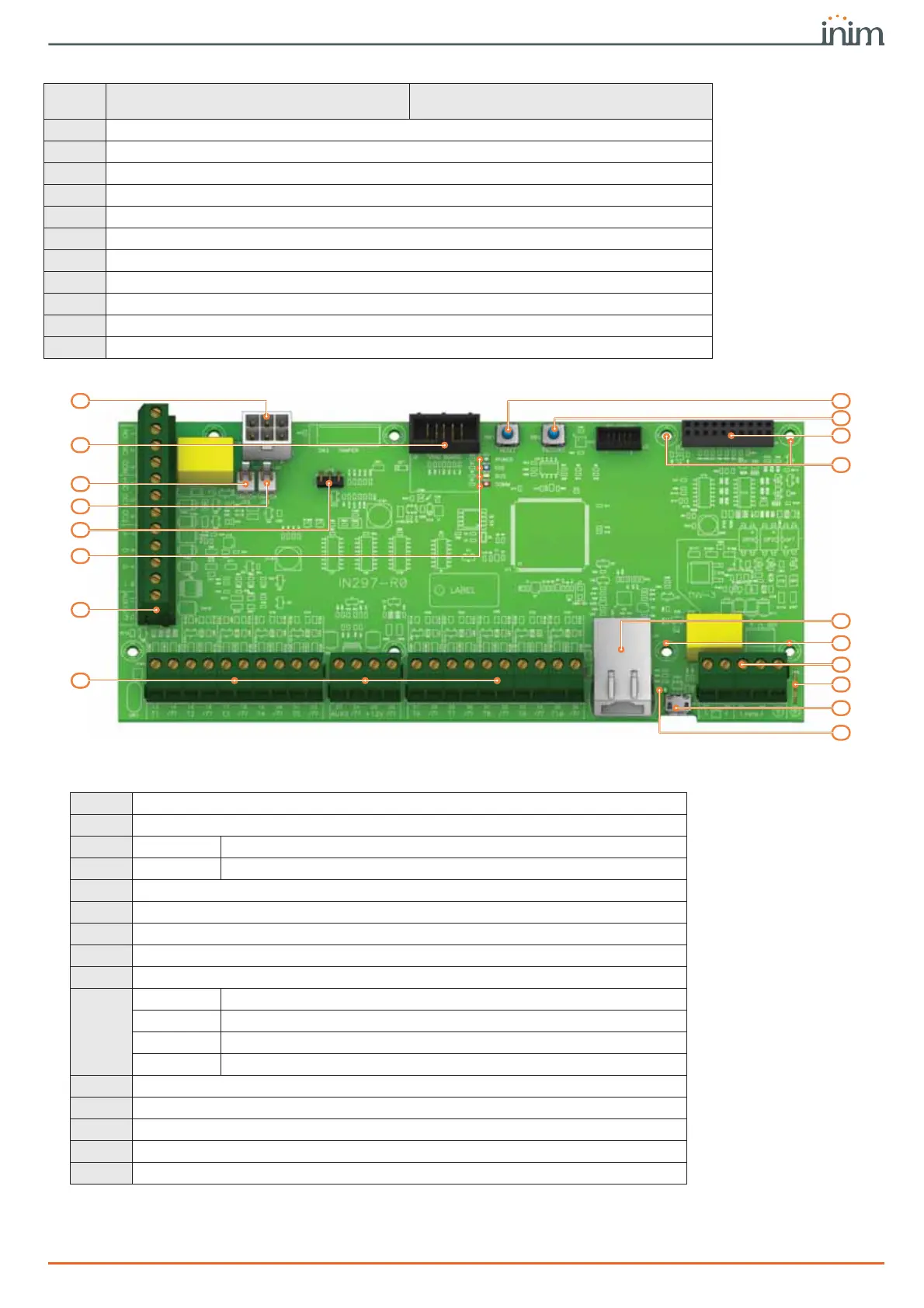

Table 2-6: Mother board - description of parts
A
Connectors for wires between power supply and board
B
Connector for SmartLogos30M voice-board
C RESET
System reset button
DFACTORY
Button to reset default settings (factory settings)
E
Connector for optional board
F
Mounting holes for optional board
G
Connector for optional anti-tamper device
H
Connector for anti-tamper device (supplied)
I
Connectors for Maintenance jumper
J
POWER
Green power LED
EXE
Blue activity LED
BUS
Yellow BUS activity LED
COMM
Red PSTN line activity LED
K
RJ45 connector for LAN network
L
Green USB connected LED
M
Connector for MicroUSB
N
Ancillary earth contact
O
Terminal board
