Fire detection and extinguishant system
2.5 Previdia Compact REP Repeater
For installations requiring a system control point other than the point where the Previdia Compact control panel is
installed, there are two repeater panel models, that is, devices that allow you to remotely view the information available
on the user interface of the control panel.
The models are:
• PREVIDIA-C-REP, standard repeater
• PREVIDIA-C-REPE, standard repeater with extinction channel LEDs
Technical specifications
Supply voltage 19-30 V
Consumption @
27.6V
stand-by 40mA
maximum 140mA
Band frequency
2G: 850/900, 1800/1900 MHz
3G: 800/850/900, 1900/2100 MHz
Maximum RF output power 2W, 1W
Operating temperature from -5°C to +40°C
Antenna
remote GSM-UMTS cable 2m, SMA-Male
connector (50Ohm impedance) and magnetic
base

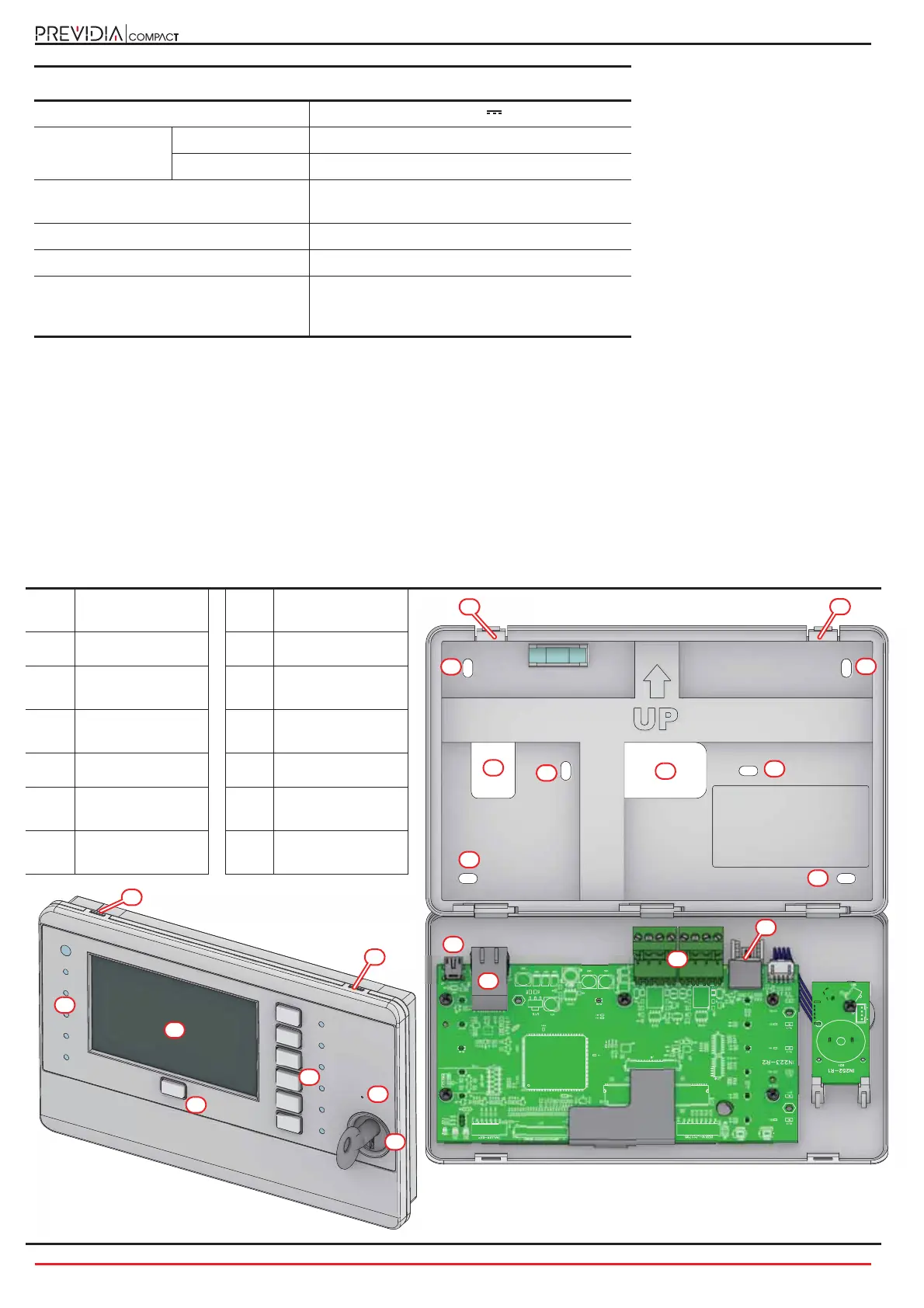

[A]
Touchscreen
display
[H]
Ethernet port
[B]
Status LED
[I]
Mini USB port
[C]
LED and function
button
[J]
Terminal board
[D]
LED and multiple-
alarm button
[K]
Backlocking grips
[E]
Access-key slot
[L]
Cable entry
[F]
Buzzer
[M]
Mounting screw
locations
[G]
MicroSD card
holder
[H]
Ethernet port
H
I
J
K
K
G
L
L
M
M
M
M
M
M
A
B
E
D
C
F
K
K
